An LC circuit like that in the figure below consists of a 3.30-H inductor and an...
An LC circuit like that in the figure below consists of a 3.30-H inductor and an 832-pF capacitor that initially carries a 134-μC charge. The switch is open for t < 0 and is then thrown closed at t = 0. Compute the following quantities at t = 5.00 ms. (a) the energy stored in the capacitor (b) the total energy in the circuit (c) the energy stored in the inductor

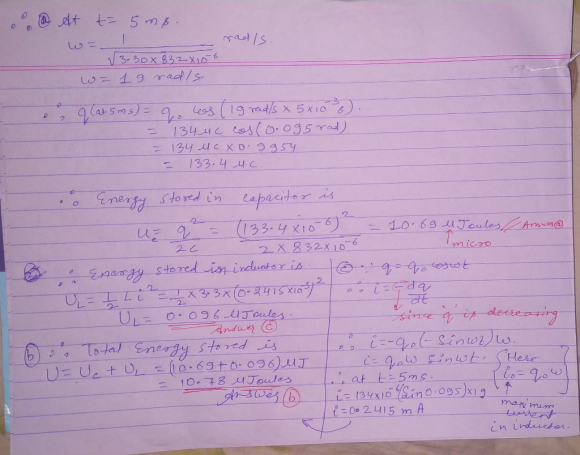

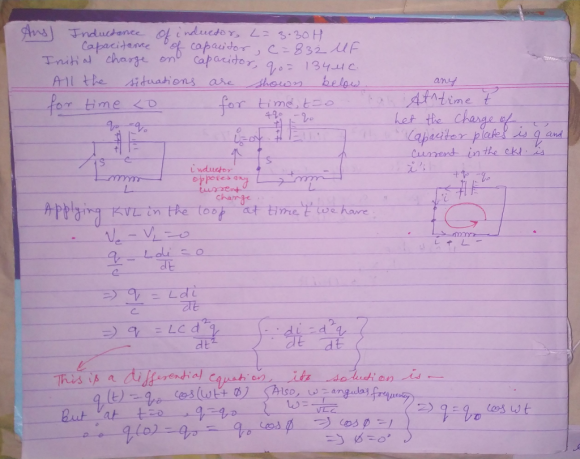

Solutions
genius_generous answered 2 months agoRelated Solutions
An LC circuit like the one in the figure below contains an 85.0 mH inductor and...
An LC circuit like the one in the figure below contains an 85.0
mH inductor and a 24.0 µF capacitor that initially carries a 175 µC
charge. The switch is open for t < 0 and is then thrown closed
at t = 0. A rectangular loop forms an L C circuit. The left side of
the loop contains a capacitor C carrying a charge Qmax, with the
positively charged plate above the negatively charged plate. The
right side of...
An LC circuit has an inductor with inductance 0.05 H and a capacitor with capacitance 5...
An LC circuit has an inductor with inductance 0.05 H and a
capacitor with capacitance 5 μF. All of the energy is stored in the
capacitor at t=0, and the total charge is 3×10-5 C. (a) What is the
angular frequency of the oscillations in this circuit? (b) Find a
mathematic equation for q(t). (c) What is the maximum current flow
through the circuit? (d) How long does it take the capacitor to
become completely discharged?
••24. A single-loop circuit consists of a 7.20 ? resistor, a 12.0 H inductor, and a...
••24. A single-loop circuit consists of a 7.20 ? resistor, a
12.0 H inductor, and a 3.20 ?F capacitor. Initially the capacitor
has a charge of 6.20 ?C and the current is zero. Calculate the
charge on the capacitor N complete cycles later for (a) N = 5, (b)
N = 10, and (c) N = 100.
An LRC series circuit consists of a 3.15 H inductor, a 6.36 ohm resistor, and a...
An LRC series circuit consists of a 3.15 H inductor, a 6.36 ohm
resistor, and a 5.48 microFarand capacitor. The combination is
connected to an AC votage source that has a peak voltage of 147 V
and an angular frequency of 441 rad/s. What is the peak voltage
measured across the inductor?
An LC circuit is built with a 10 mH inductor and an 12.0 pF capacitor. The...
An LC circuit is built with a 10 mH inductor and an 12.0 pF
capacitor. The capacitor voltage has its maximum value of 40 V at
t=0s.
Part A
How long is it until the capacitor is first fully
discharged?
Express your answer with the appropriate units. (t=?)
Part B
What is the inductor current at that time?
Express your answer with the appropriate units.(I=?)
An oscillating LC circuit is set up with an inductor with L = 60 mH and...
An oscillating LC circuit is set up with an inductor with L = 60
mH and a capacitor with C = 4.0 µF with a maximum voltage of 3.0 V.
Initially, at t = 0, the capacitor is fully charged.
(a) What is the maximum value of the current through the
circuit?
(b) How long after t = 0 will it take before the current in the
circuit is at a maximum for the first time?
(c) What is the...
An RLC series circuit consists of a 450-Ω resistor, a 3.00-mF capacitor, and a 1.00-H inductor....
An RLC series circuit consists of a 450-Ω resistor, a 3.00-mF
capacitor, and a 1.00-H inductor. The circuit is driven by a power
source that oscillates at 20.0 Hz and has an ε_rms value of 90.0 V
. The power source is switched on at t = 0 and at that instant the
emf is at its maximum value.
A) Calculate the power supplied at t = 0.0200 s.
B) Calculate the power supplied at t = 0.0375 s.
C)...
An RLC series circuit consists of a 450-Ω resistor, a 3.00-mF capacitor, and a 1.00-H inductor....
An RLC series circuit consists of a 450-Ω resistor, a 3.00-mF
capacitor, and a 1.00-H inductor. The circuit is driven by a power
source that oscillates at 20.0 Hz and has an Erms value of 30.0 V .
The power source is switched on at t = 0 and at that instant the
emf is at its maximum value.
Part A Calculate the power supplied at t = 0.0200 s.
Part B Calculate the power supplied at t = 0.0375...
Consider a circuit that consists of a resistor with R = 40Ω, and an inductor with...
Consider a circuit that consists of a resistor with R = 40Ω, and
an inductor with L = 1H, a capacitor with C = 0.002F, and a 15V
battery.
1. Write the differential equation for the charge Q
2. Classify the equation (order, linear/non-linear,
homogeneous/nonhomogeneous)
3. Find two solutions of the complementary equation and show
that they form a fundamental set of solutions.
4. Find the general solution of the equation.
5. Assume that the initial charge and current are...
A series circuit contains a 3.00 H inductor, a 3.00
A series circuit contains a 3.00 H inductor, a 3.00
