Question

In: Physics

Figure (a) shows three plastic sheets that are large, parallel, and uniformly charged. Figure (b) gives...

Figure (a) shows three plastic sheets that are large, parallel, and uniformly charged. Figure (b) gives the component of the net electric field along an x axis through the sheets. The scale of the vertical axis is set by Es = 9

Solutions

Expert Solution

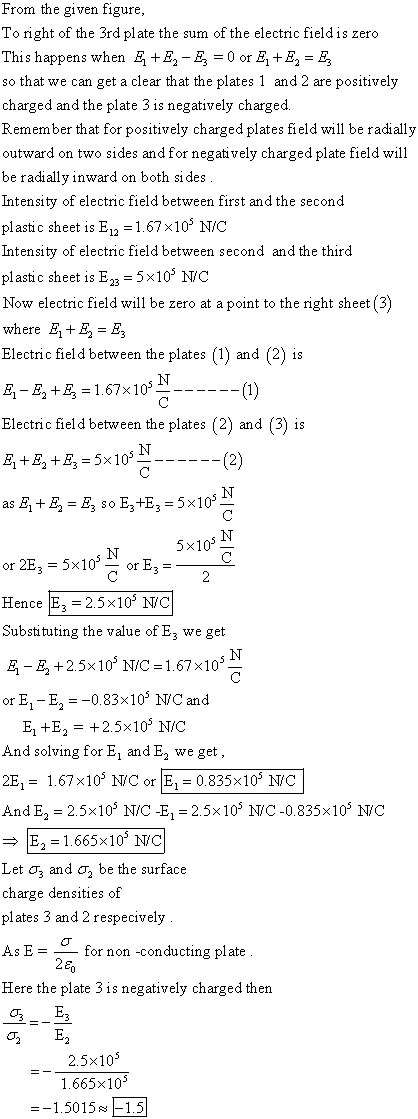

I have solved this question earliar jus it was for Es = 5 x 10^5 N/C, replace it by 9 x 10^5 N/C

genius_generous answered 3 months ago
Next > < Previous

Related Solutions

Two infinite planar sheets are placed parallel to each other. One sheet is uniformly charged with...
Two infinite planar sheets are placed parallel to each other. One sheet is uniformly charged with +10 nC/cm^2 and the other with -20nC/cm^2. A point charge of -5 nC is placed a) between the sheets b) in the outside regions. For each case calculate the strength and show the direction of the electric force experienced by the point charge.
the two halves of the rod in the figure are uniformly charged to ±q. (figure 1)
The two halves of the rod in the figure are uniformly charged to plus/minus Q as shown. What is the electric potential at the point indicated by the dot?
A positively charged particle is held at the center of a spherical shell. The figure gives...
A positively charged particle is held at the center of a spherical shell. The figure gives the magnitude E of the electric field versus radial distance r. The scale of the vertical axis is set by Es = 8.0
A 10-cm-long thin glass rod uniformly charged to 5.00nC and a 10-cm-long thin plastic rod uniformly...
A 10-cm-long thin glass rod uniformly charged to 5.00nC and a 10-cm-long thin plastic rod uniformly charged to - 5.00nC are placed side by side, 3.50cm apart. What are the electric field strengths E1to E3 at distances 1.0 cm, 2.0 cm, and 3.0 cm from the glass rod along the line connecting the midpoints of the two rods?Specify the electric field strength E1,E2,andE3
1)Two parallel uniformly charged ring are placed in 4 meter distance. The charge of one of...
1)Two parallel uniformly charged ring are placed in 4 meter distance. The charge of one of them is 2c and the other one is -3c. find the zero point position of the Electric field. 2) Two parallel uniformly charged ring are placed in 4 meter distance. The charge of one of them is 2c and the other one is +3c. find the zero point position of the Electric field 3) A rod with length "l" is lied along x-axis. The...
1)Two parallel uniformly charged ring are placed in 4 meter distance. The charge of one of...
1)Two parallel uniformly charged ring are placed in 4 meter distance. The charge of one of them is 2c and the other one is -3c. The radius of the rings are 1m. find the zero point position of the Electric field. 2) Two parallel uniformly charged ring are placed in 4 meter distance. The charge of one of them is 2c and the other one is +3c. The radius of the rings are 1m. find the zero point position of...
The figure shows an electron entering a parallel-plate capacitor with a speed of 6
The figure shows an electron entering a parallel-plate capacitor with a speed of 6
The figure shows an arrangement of four charged particles, with angle θ = 37.0 ˚ and...
The figure shows an arrangement of four charged particles, with angle θ = 37.0 ˚ and distance d = 3.00 cm. Particle 2 has charge q2 = 6.40 × 10-19 C; particles 3 and 4 have charges q3 = q4 = -1.60 × 10-19 C. (a) What is the distance D between the origin and particle 2 if the net electrostatic force on particle 1 due to the other particles is zero? (b) If particles 3 and 4 were moved...
The figure shows electrons 1 and 2 on an x axis and charged ions 3 and...
The figure shows electrons 1 and 2 on an x axis and charged ions 3 and 4 of identical charge -q and at identical angles θ. Electron 2 is free to move; the other three particles are fixed in place and are intended to hold electron 2 in place. For physically possible values of q ≤ 5e, what are the (a) smallest, (b) second smallest, and (c) third smallest values of θ for which electron 2 is held in place?
Three large parallel insulating sheets have surface charge densities s1 = –30 pC/m2, s2 = +20...
Three large parallel insulating sheets have surface charge densities s1 = –30 pC/m2, s2 = +20 pC/m2, and s3 = +20 pC/m2. Adjacent sheets are a distance of 0.300 m from each other. Calculate the net electric field (magnitude and direction) due to all three sheets at points P, R, S, and T located midway between adjacent pairs.
