Two blocks of mass mA = 5kg and mB = 7kg are connected by a cable...

Two blocks of mass mA = 5kg and mB = 7kg are connected by a cable of negligible mass on a pulley. The

pulley rotates on a frictionless axle, the cable doesn’t slip on the pulley, it has a radius r = 4cm and a mass mp = 10g. Block A is on an inclined ramp at an angle θ = 30◦ above the ground and there is a coefficent of

friction μk = 0.12 between block A and the ramp. Block B sits a distance d = 3m from the ground. The system is released from rest and block B descends. Calculate the speed of block B at the instant just before it hits the ground

Solutions

Expert Solution

I = moment of inertia of pulley = (0.5) mp r2 = (0.5) (0.01) (0.04)2 = 8 x 10-6 kgm2

For Block A :

Perpendicular to incline force equation is given as

Fn = mAg Cos30

frictional force is given as

fk = uk Fn = uk mAg Cos30

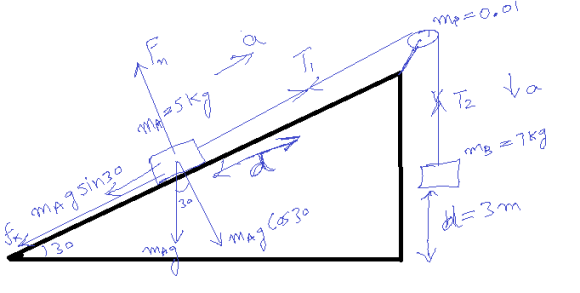

from the force diagram , force equation for block A is given as

T1 - mA g Sin30 - fk = mAa

T1 - 5 x 9.8 Sin30 - 0.12 x 5 x 9.8 Cos30 = 5 a

T1 - 29.6 = 5 a

T1 = 29.6 + 5a                   Eq-1

For Block B :

force equation is given as

mBg - T2 = mB a

7 x 9.8 - T2 = 7a

T2 = 68.6 - 7a                             Eq-2

Torque equation for the pulley is given as

(T2 - T1) r = Ia/r

(68.6 - 7a - 29.6 - 5a ) = (8 x 10-6) a/(0.04)2

a = 3.25 m/s2

Vi = initial speed of B

Vf = final speed

d = distance travelled = 3 m

using the equation

Vf2 = Vi2 + 2 a d

Vf2 = 02 + 2 x 3.25 x 3

Vf = 4.42 m/s
