Question

In: Physics

A box of textbooks of mass 25.0 kg rests on a loading ramp that makes an...

A box of textbooks of mass 25.0 kg rests on a loading ramp that makes an angle α with the horizontal. The coefficient of kinetic friction is 0.23 and the coefficient of static friction is 0.36.

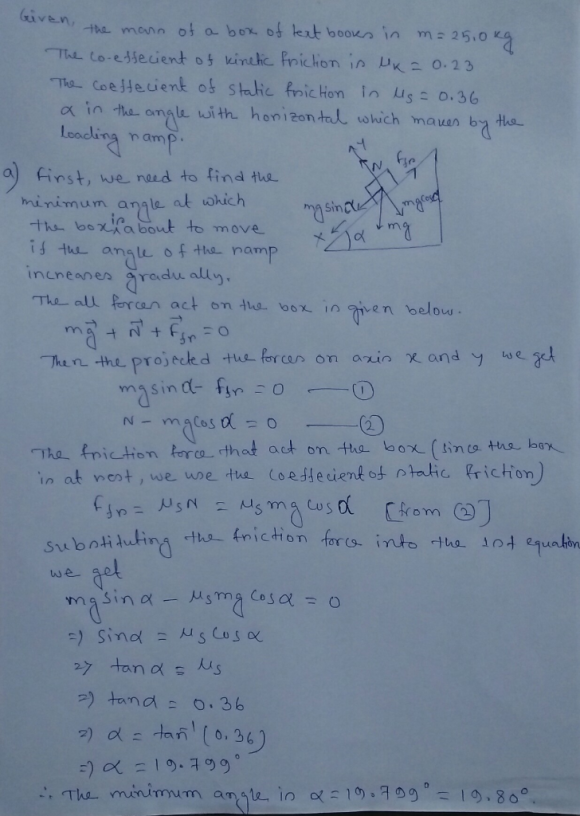

A) As the angle α is increased, find the minimum angle at which the box starts to slip. Express your answer using two significant figures.

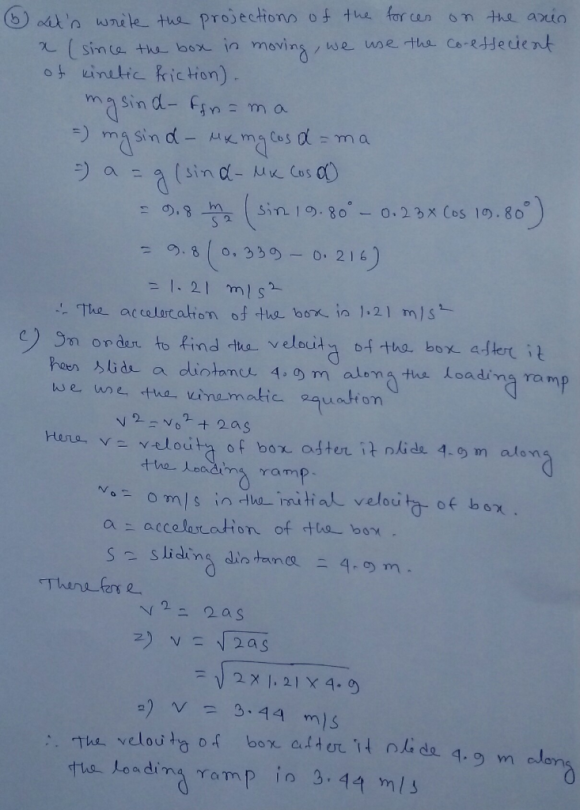

B) At this angle, find the acceleration once the box has begun to move. Express your answer using two significant figures.

C) At this angle, how fast will the box be moving after it has slid a distance 4.9 m along the loading ramp? Express your answer using two significant figures.

Solutions

Expert Solution

genius_generous answered 3 months ago
