Question

In: Mechanical Engineering

Draw moving sound wave and stationary sound wave coordinate system. From fundamental principles derive speed of...

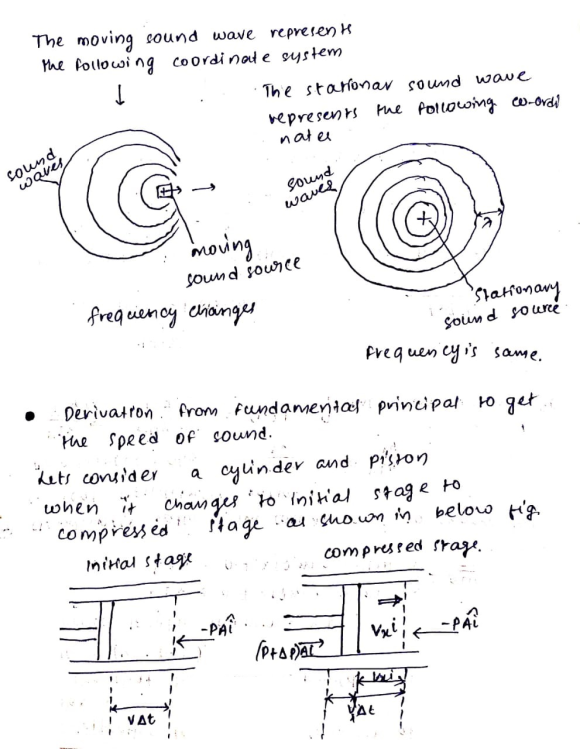

Draw moving sound wave and stationary sound wave coordinate system.

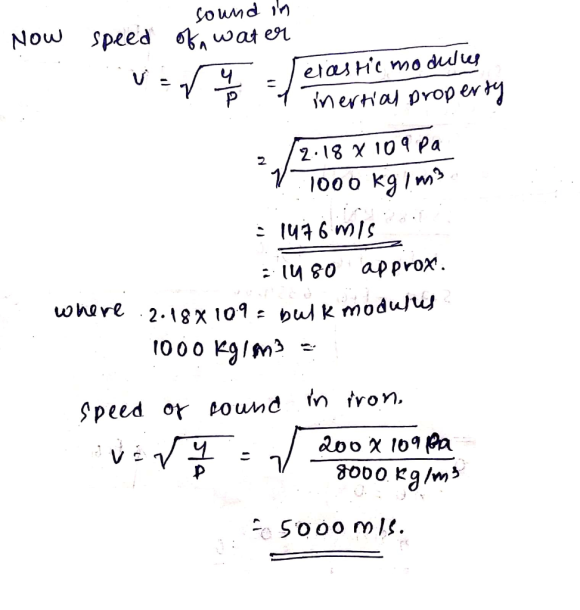

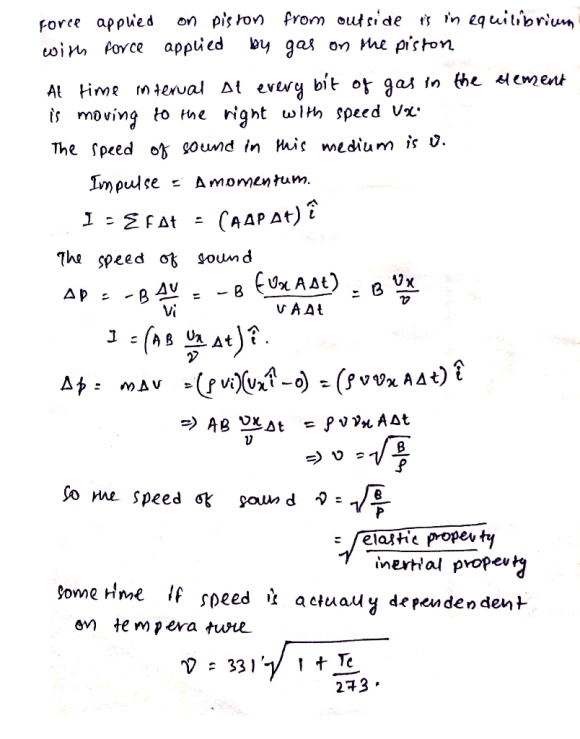

From fundamental principles derive speed of sound. Calculate speed of sound in water and iron.

Solutions

Expert Solution

P.S: Please provide your valuable feedback by a thumbsup. Your thumbsup is a result of our efforts. Thanks in advance...!
