Are down-sampling and up-sampling Linear Time Invariant (LTI) systems? Prove your answers.

Expert Solution

Manojponduru answered 6 months ago

Consider the first order linear time-invariant (LTI) system given by, ??(?) ?? + 4?(?) = ?(?)...

Consider the first order linear time-invariant (LTI) system given by, ??(?) ?? + 4?(?) = ?(?) Where the system is initially at rest. Part a: Determine the Frequency Response H(jω) and impulse response h(t). Part b: When the input ?(?) = ?23?(?), determine the output of the system ?(?). Part c: Is the system; memoryless? causal? Stable? please justify your answer

Consider each of the following systems for long times, at which their behacioor is time invariant....

Consider each of the following systems for long times, at which their behacioor is time invariant. Identify each system as equilibrium or steady state. 1) A hose supplies water at a constant rate to a bucket with a hole in it. A constant water level is maintained 2)A mixture of reacting gas molecules is constrained to a fixed temperature, e.g., H2, O2 and H2O at 600 K. 3) Ice floats in water, thermally insulated from its surroundings. 4) Molten steel...

Consider each of the following systems for long times, at which their behacioor is time invariant....

Consider each of the following systems for long times, at which their behacioor is time invariant. Identify each system as equilibrium or steady state. 1) A hose supplies water at a constant rate to a bucket with a hole in it. A constant water level is maintained 2)A mixture of reacting gas molecules is constrained to a fixed temperature, e.g., H2, O2 and H2O at 600 K. 3) Ice floats in water, thermally insulated from its surroundings. 4) Molten steel...

Consider the linear time invariant system described by the transfer function G(s) given below. Find the...

Consider the linear time invariant system described by the transfer function G(s) given below. Find the steady-state response of this system for two cases: G(s) = X(s)/F(s) = (s+2)/(3(s^2)+6s+24) when the input is f(t) = 5sin(2t) and f(t) = 5sin(2t) + 3sin(2sqrt(3)t)

the following are impulse responses/outputs of discrete -time LTI systems. Determine whether each system is causal...

the following are impulse responses/outputs of discrete -time LTI systems. Determine whether each system is causal and/or stable. justify your answers 1. h [n] = 1/5^n u [n] 2. h [n] = 5^n u [3-n] 3. y [n] = 3x [n] - 0.15y [n-1] 4. y [n] = 2e^-x [n] 5. y [n] = n^2 4x [n] B. Show if the systems defined in 1 to 5 above have bounded input and output (BIBO) from the summation of their impulse...

Using MATLAB, determine whether the system below are a) linear/non-linear b) time-invariant/timevariant, c) causal/noncausal, d) has...

Using MATLAB, determine whether the system below are a) linear/non-linear b) time-invariant/timevariant, c) causal/noncausal, d) has memory/memoryless: y(t) = x(t) + x(t -1) Provide MATLAB code and graphs to show your work for the linearity and time-invariance testing.

prove the following statement: If the augmented matrices of two linear systems are row equivalent, then...

prove the following statement: If the augmented matrices of two linear systems are row equivalent, then those systems are equivalent. (To do this, start with a solution to one of the systems and show that it is still a solution of the other system under each of the three elementary row operations.)

Determine where the system is 1) linear 2) causal 3) stable and 4) time-invariant. a)y(n)= nx(n)...

Determine where the system is 1) linear 2) causal 3) stable and 4) time-invariant. a)y(n)= nx(n) b) y(n)=x square(n)

Write down your answers to the following question and upload a scanned copy of your answer...

Write down your answers to the following question and upload a scanned copy of your answer on blackboard (e.g. using the Adobe Scan App on your phone). Only PDF documents will be accepted. Suppose the long-run production function of Curry’s brewing company is given by: Q = 3K0.25L0.75. K is the total operating hours of all brewing machines and L is the total working hours of all workers. Q is the number of beers produced per day. The current rental...

Let a and b be rational numbers. As always, prove your answers. (a) For which choices...

Let a and b be rational numbers. As always, prove your answers. (a) For which choices of a, b is there a rational number x such that ax = b? (b) For which choices of a, b is there exactly one rational number x such that ax = b?

Question

Are down-sampling and up-sampling Linear Time Invariant (LTI) systems? Prove your answers.

Solutions

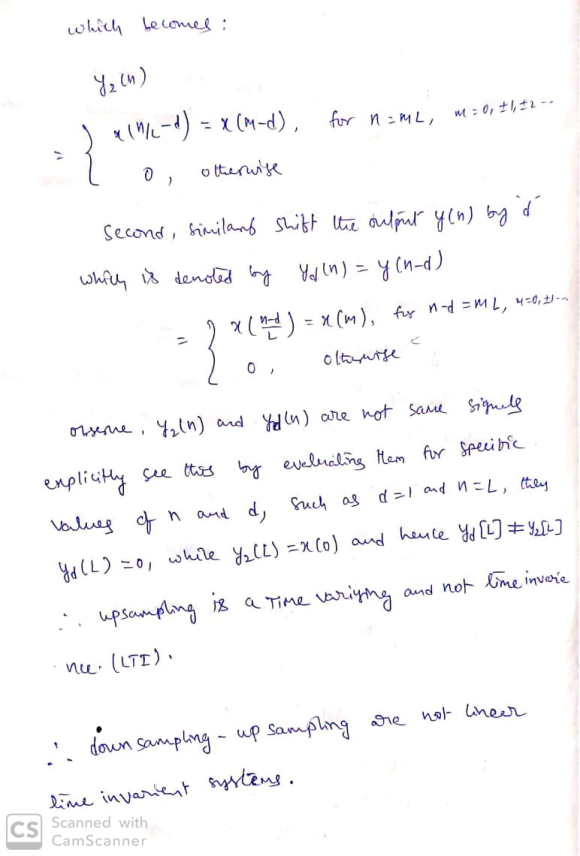

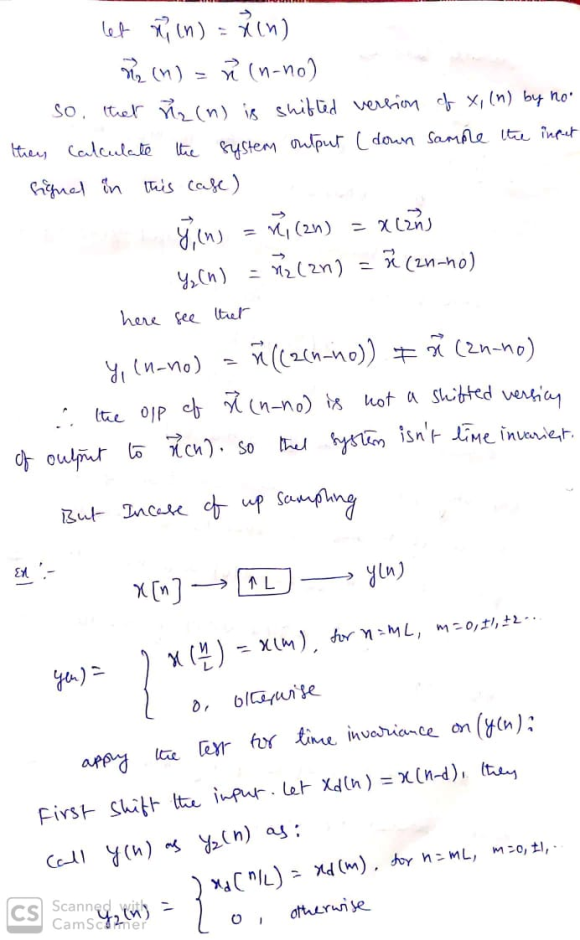

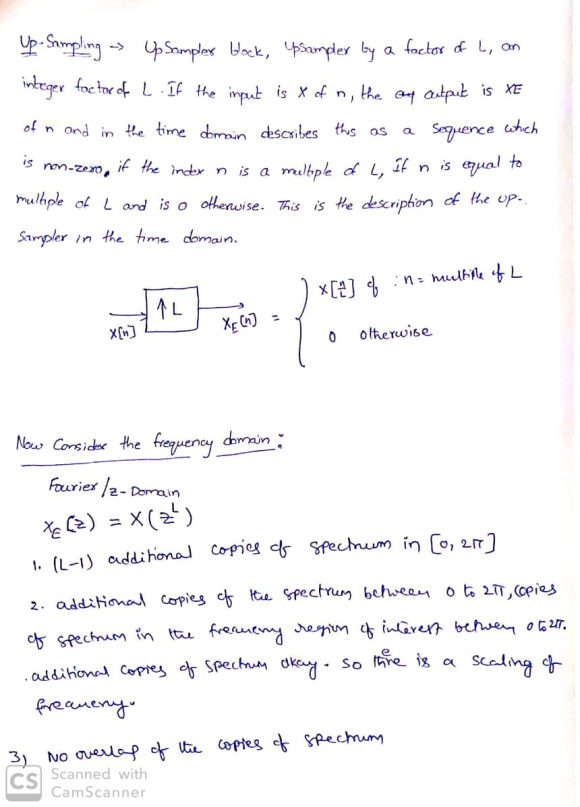

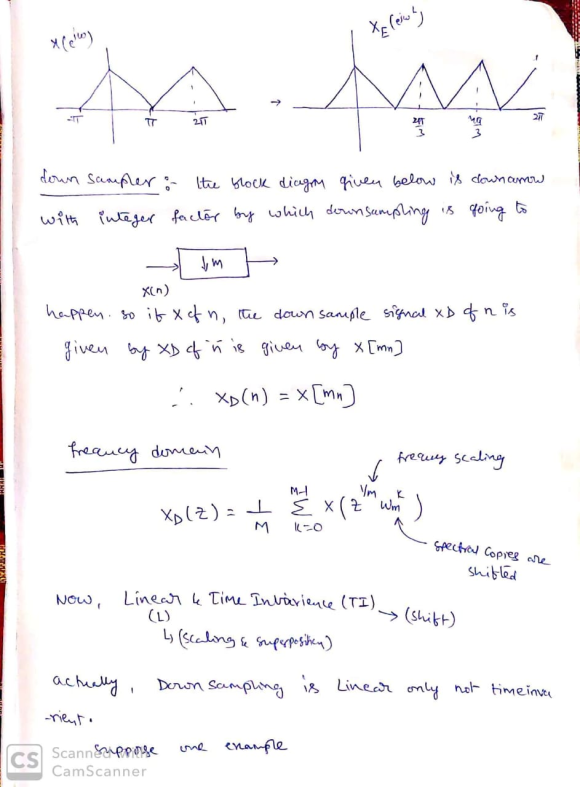

Expert Solution
