Question

In: Physics

Two 11cm -long thin glass rods uniformly charged to +13nC are placed side by side, 4.0...

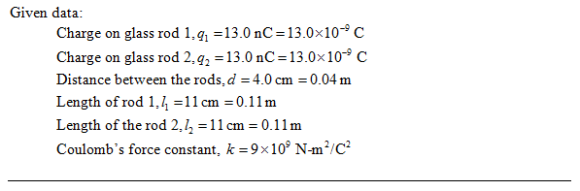

Two 11cm -long thin glass rods uniformly charged to +13nC are placed side by side, 4.0 cm apart. What are the electric field strengths E1, E2, and E3 at distances 1.0 cm, 2.0 cm, and 3.0 cm to the right of the rod on the left, along the line connecting the midpoints of the two rods?

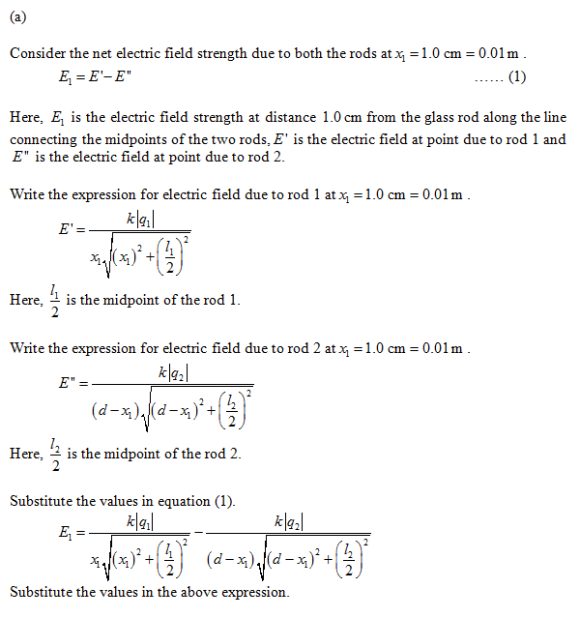

Specify the electric field strength E1.

Specify the electric field strength E2.

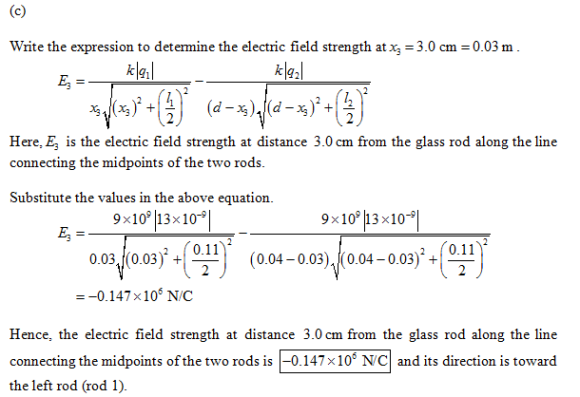

Specify the electric field strength E3.

Solutions

Expert Solution

genius_generous answered 5 months ago
Next > < Previous
