Registry Java Programming
3) Planner
Create a class called Planner. A Planner is a data structure for storing events. The maximum capacity of the planner (physical size) is specified by the formal parameter of the constructor of the class.
Instance methods
int size(); returns the number of events that are currently stored in this Planner (logical size);
boolean addEvent( AbstractEvent event ); adds an event to the
last position of
this Planner. It returns true if the insertion was a success, and
false if this Planner was already full;
AbstractEvent eventAt( int pos ); returns the event at the
specified position in
this Planner. This operation must not change this state of this
Planner. The first event of the Planner is at position 0;
AbstractEvent remove( int pos ); removes the event at the
specified position of
this Planner. Shifts any subsequent items to the left (start of the
array). Returns the event that was removed from this Planner;
void display( Date date ); the method display prints all the events that have a recurrence on the specified date;
void sort( Comparator< AbstractEvent > c ), the method passes the array of events and the comparator object to the method java.util.Arrays.sort;
The class overrides the method String toString(). An example of the expected format is given below.
4) Notifications:
Create a class called notifications that is sensitive to changes in the planner. Every time an item shows up in planner, the notifications class will display some kind of notification automatically on the screen. You need to use the observer design pattern.
These are the abstract classes:
// AbstractEvent.java : Java class to represent the
AbstractEvent
import java.util.Date;
public abstract class AbstractEvent {
// data fields
private String description;
private Date start_time;
private Date end_time;
// method to set the description of the
AbstractEvent
public void setDescription(String description)
{
this.description =
description;
}
// method to set the start date for the
AbstractEvent
public void setStartTime(Date start)
{
this.start_time = start;
}
// method to set the end date for the
AbstractEvent
public void setEndTime(Date end)
{
this.end_time = end;
}
// method to return the description of the
AbstractEvent
public String getDescription()
{
return description;
}
// method to return the start date of
AbstractEvent
public Date getStartTime()
{
return start_time;
}
// method to return the end date of the
AbstractEvent
public Date getEndTime()
{
return end_time;
}
// The below 3 methods must be define by the concrete
subclass of AbstractEvent
// abstract method hasMoreOccurrences() whose
implementation depends on the kind of event
public abstract boolean hasMoreOccurrences();
// abstract method nextOccurrence() whose
implementation depends on the kind of event
public abstract Date nextOccurrence();
// abstract method init() whose implementation depends
on the kind of event
public abstract void init();
}
//end of AbstractEvent.java
1.2
//DailyEvent.java
import java.util.Calendar;
import java.util.Date;
public class DailyEvent extends AbstractEvent{
// data field to store the number of recurrences
private int num_consecutive_days;
// helper field to return the next occurrence
private int days_occurred = 0;
// method to set the number of recurrences
public void setNumberOfConsecutiveDays(int
num_days)
{
this.num_consecutive_days =
num_days;
}
// method to get the number of recurrences
public int getNumberOfConsecutiveDays()
{
return num_consecutive_days;
}
// method to return if the event has more occurrences
or not
@Override
public boolean hasMoreOccurrences() {
// if days occurred < number of
consecutive days , then next occurrence is valid
if(days_occurred <
num_consecutive_days)
return
true;
return false;
}
// method to return the date of next
occurrence
@Override
public Date nextOccurrence() {
// if days_occurred >= number of
recurrences, return null (as it exceeds number of
recurrences)
if(days_occurred >=
num_consecutive_days)
return
null;
// return the next occurrence
date
Calendar cal =
Calendar.getInstance();
cal.setTime(getStartTime());
cal.add(Calendar.DATE,
days_occurred);
days_occurred++; // increment the
number of days by a day
return cal.getTime();
}
// method to re-initialize the state of the object
so that a call to the method nextOccurrence() returns the date of
the first occurrence of this event
@Override
public void init() {
days_occurred = 0;
}
public String toString()
{
return("Start Date:
"+getStartTime()+" End Date : "+getEndTime()+" Consecutive days of
occurrence : "+num_consecutive_days);
}
}
//end of DailyEvent.java
1.3
//WeeklyEvent.java
import java.util.Calendar;
import java.util.Date;
public class WeeklyEvent extends AbstractEvent{
// data field to store the limit date
private Date limit;
// helper field to return the next occurrence
private int num_days = 0;
// method to set the limit date
public void setLimit(Date limit)
{
this.limit = limit;
}
// method to return the limit date
public Date getLimit()
{
return limit;
}
// method to return if the event has more occurrences
or not
@Override
public boolean hasMoreOccurrences() {
// check if the call to
nextOccurrence will return a date within the limit
Calendar cal =
Calendar.getInstance();
cal.setTime(getStartTime());
cal.add(Calendar.DATE,
num_days);
if(cal.getTime().compareTo(limit)
< 0)
return
true;
return false;
}
// method to return the next occurrence date
@Override
public Date nextOccurrence() {
Calendar cal =
Calendar.getInstance();
cal.setTime(getStartTime());
cal.add(Calendar.DATE,
num_days);
// if next occurrence date >
limit , return null, else return the next occurrence date
if(cal.getTime().compareTo(limit)
>= 0)
return
null;
num_days += 7; // increment the
number of days by 1 week
return cal.getTime();
}
// method to re-initialize the state of the object
so that a call to the method nextOccurrence() returns the date of
the first occurrence of this event
@Override
public void init() {
num_days = 0;
}
public String toString()
{
return("Start Date:
"+getStartTime()+" End Date : "+getEndTime()+" Limit Date :
"+limit);
}
}
//end of WeeklyEvent.java

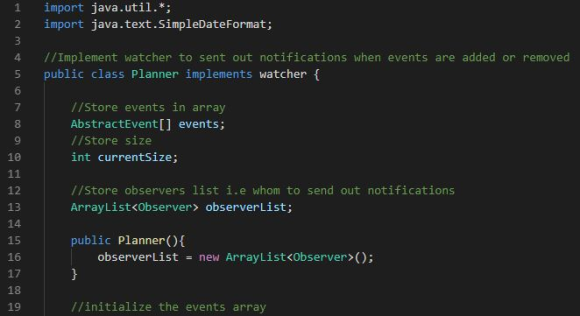

Planner.java
import java.util.*;
import java.text.SimpleDateFormat;
//Implement watcher to sent out notifications when events are added or removed
public class Planner implements watcher {
//Store events in array
AbstractEvent[] events;
//Store size
int currentSize;
//Store observers list i.e whom to send out notifications
ArrayList<Observer> observerList;
public Planner(){
observerList = new ArrayList<Observer>();
}
//initialize the events array

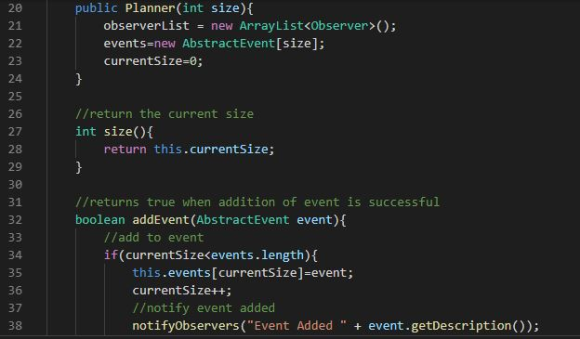

public Planner(int size){
observerList = new ArrayList<Observer>();
events=new AbstractEvent[size];
currentSize=0;
}
//return the current size
int size(){
return this.currentSize;
}
//returns true when addition of event is successful
boolean addEvent(AbstractEvent event){
//add to event
if(currentSize<events.length){
this.events[currentSize]=event;
currentSize++;
//notify event added
notifyObservers("Event Added " + event.getDescription());
return true;
}
else{
return false;
}
}

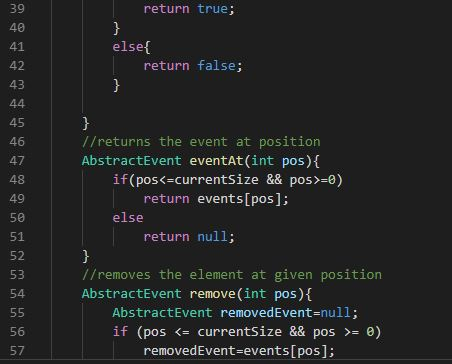

//returns the event at position
AbstractEvent eventAt(int pos){
if(pos<=currentSize && pos>=0)
return events[pos];
else
return null;
}

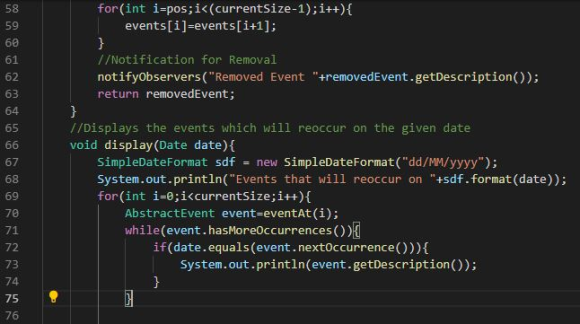

//removes the element at given position
AbstractEvent remove(int pos){
AbstractEvent removedEvent=null;
if (pos <= currentSize && pos >= 0)
removedEvent=events[pos];
for(int i=pos;i<(currentSize-1);i++){
events[i]=events[i+1];
}
//Notification for Removal
notifyObservers("Removed Event "+removedEvent.getDescription());
return removedEvent;
}
//Displays the events which will reoccur on the given date
void display(Date date){
SimpleDateFormat sdf = new SimpleDateFormat("dd/MM/yyyy");
System.out.println("Events that will reoccur on "+sdf.format(date));
for(int i=0;i<currentSize;i++){
AbstractEvent event=eventAt(i);
while(event.hasMoreOccurrences()){
if(date.equals(event.nextOccurrence())){
System.out.println(event.getDescription());
}
}
}
}

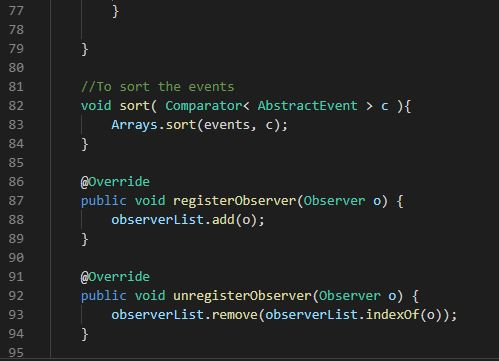

//To sort the events
void sort( Comparator< AbstractEvent > c ){
Arrays.sort(events, c);
}
@Override
public void registerObserver(Observer o) {
observerList.add(o);
}
@Override
public void unregisterObserver(Observer o) {
observerList.remove(observerList.indexOf(o));
}
@Override
public void notifyObservers(String notification) {
for (Iterator<Observer> it = observerList.iterator(); it.hasNext();) {
Observer o = it.next();
o.showNotification(notification);
}
}
}

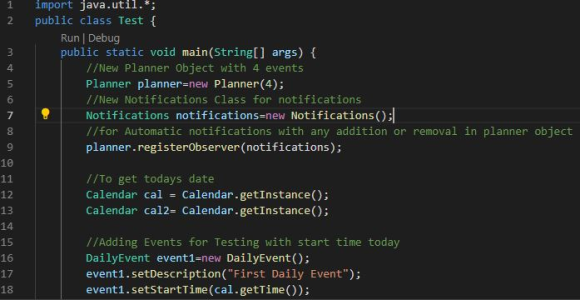

Test.java
import java.util.*;
public class Test {
public static void main(String[] args) {
//New Planner Object with 4 events
Planner planner=new Planner(4);
//New Notifications Class for notifications
Notifications notifications=new Notifications();
//for Automatic notifications with any addition or removal in planner object
planner.registerObserver(notifications);
//To get todays date
Calendar cal = Calendar.getInstance();
Calendar cal2= Calendar.getInstance();
//Adding Events for Testing with start time today
DailyEvent event1=new DailyEvent();
event1.setDescription("First Daily Event");
event1.setStartTime(cal.getTime());

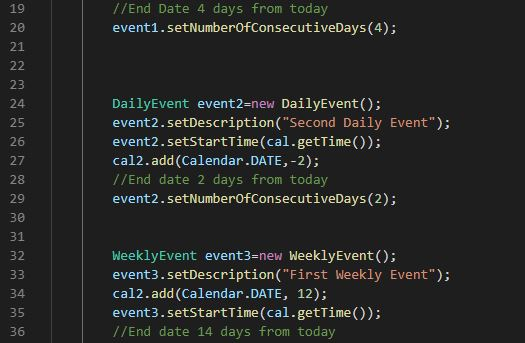

//End Date 4 days from today
event1.setNumberOfConsecutiveDays(4);
DailyEvent event2=new DailyEvent();
event2.setDescription("Second Daily Event");
event2.setStartTime(cal.getTime());
cal2.add(Calendar.DATE,-2);
//End date 2 days from today
event2.setNumberOfConsecutiveDays(2);
WeeklyEvent event3=new WeeklyEvent();
event3.setDescription("First Weekly Event");
cal2.add(Calendar.DATE, 12);
event3.setStartTime(cal.getTime());
//End date 14 days from today
event3.setLimit(cal2.getTime());

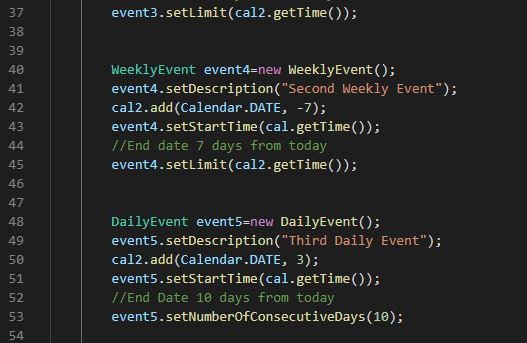

WeeklyEvent event4=new WeeklyEvent();
event4.setDescription("Second Weekly Event");
cal2.add(Calendar.DATE, -7);
event4.setStartTime(cal.getTime());
//End date 7 days from today
event4.setLimit(cal2.getTime());
DailyEvent event5=new DailyEvent();
event5.setDescription("Third Daily Event");
cal2.add(Calendar.DATE, 3);
event5.setStartTime(cal.getTime());
//End Date 10 days from today
event5.setNumberOfConsecutiveDays(10);

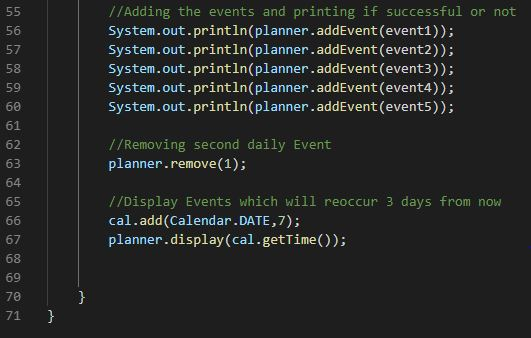

//Adding the events and printing if successful or not
System.out.println(planner.addEvent(event1));
System.out.println(planner.addEvent(event2));
System.out.println(planner.addEvent(event3));
System.out.println(planner.addEvent(event4));
System.out.println(planner.addEvent(event5));
//Removing second daily Event
planner.remove(1);
//Display Events which will reoccur 3 days from now
cal.add(Calendar.DATE,7);
planner.display(cal.getTime());
}
}
Output
Today's Date 15/10/2019

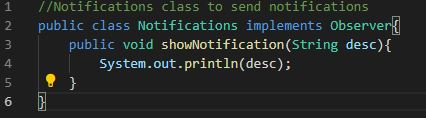

Notifications.java
//Notifications class to send notifications
public class Notifications implements Observer{
public void showNotification(String desc){
System.out.println(desc);
}
}
Observer.java
//Obseerver interface used with notifications Class
interface Observer {
public void showNotification(String desc);
}
watcher.java
//Watcher interface used with plannar class
interface watcher {
public void registerObserver(Observer o);
public void unregisterObserver(Observer o);
public void notifyObservers(String notification);
}
For indentation and output refer the above screenshots
