Consider sending a 2,000-byte datagram into a link with a MTU of 980 bytes. Suppose the...

Consider sending a 2,000-byte datagram into a link with a MTU of 980 bytes. Suppose the

original datagram has the identification number 227. How many fragments are generated? For

each fragment, what is its size, what is the value of its identification, fragment offset, and

fragment flag?

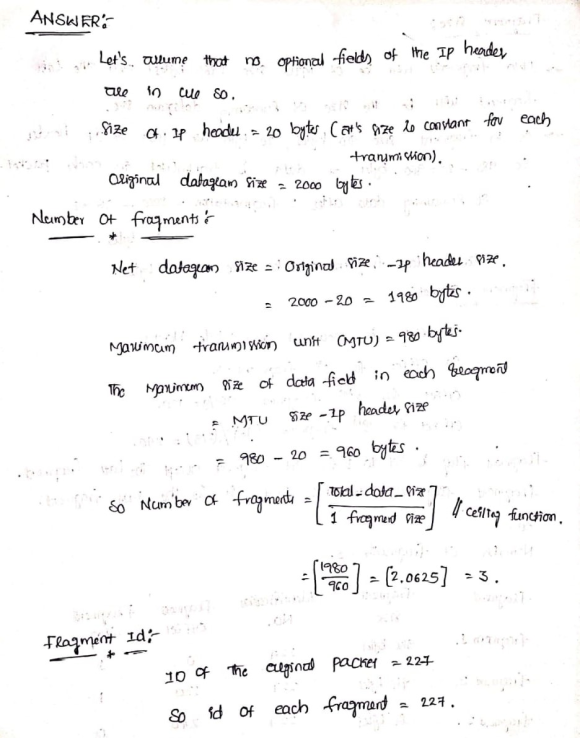

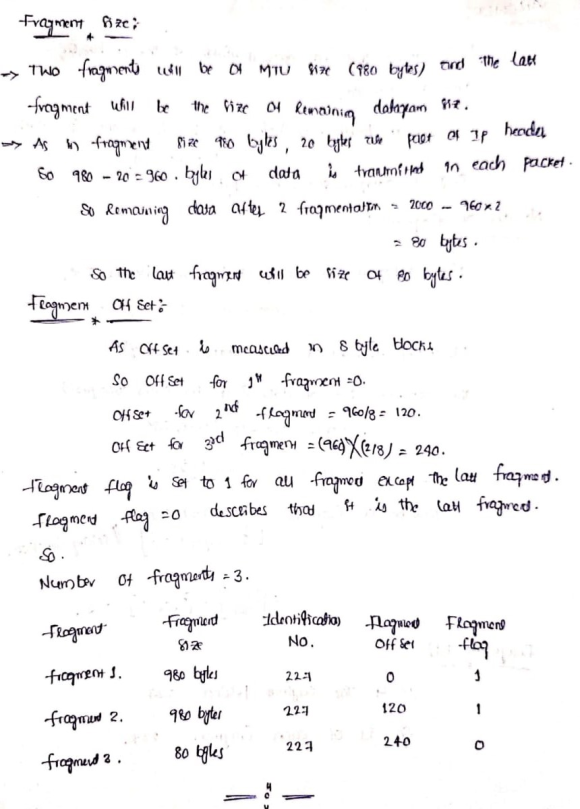

Solutions

Expert Solution

venereology answered 6 months ago
