Sketch the asymptotes of the Bode plot magnitude and phase for the transfer functions:

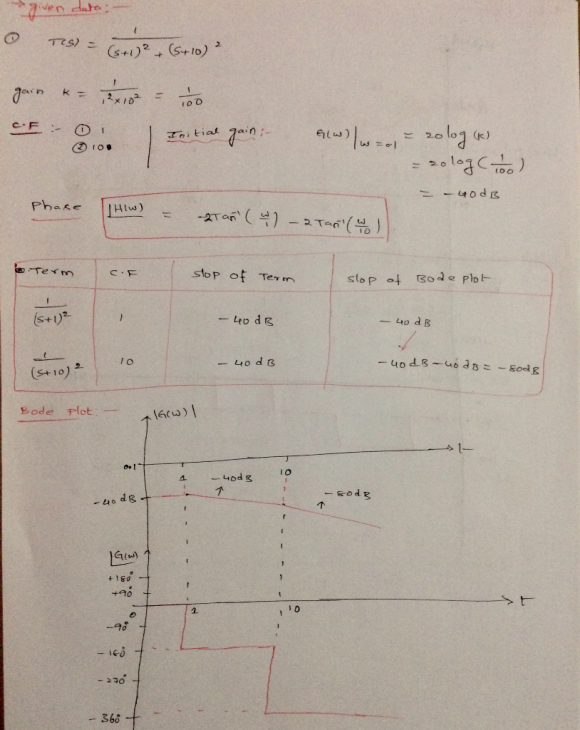

1. T(s) = 1/((s+1)^2+(s+10)^2)

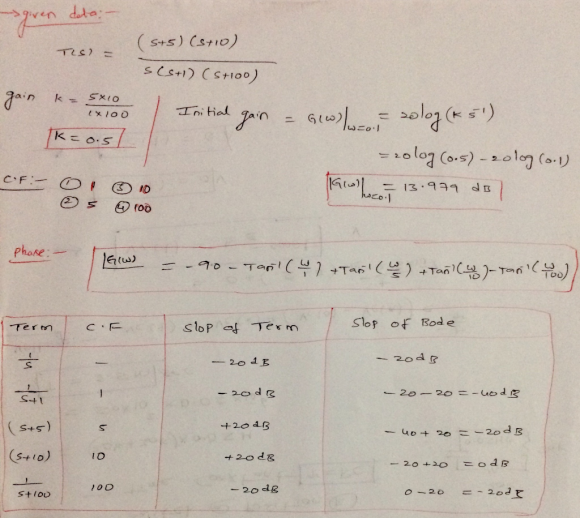

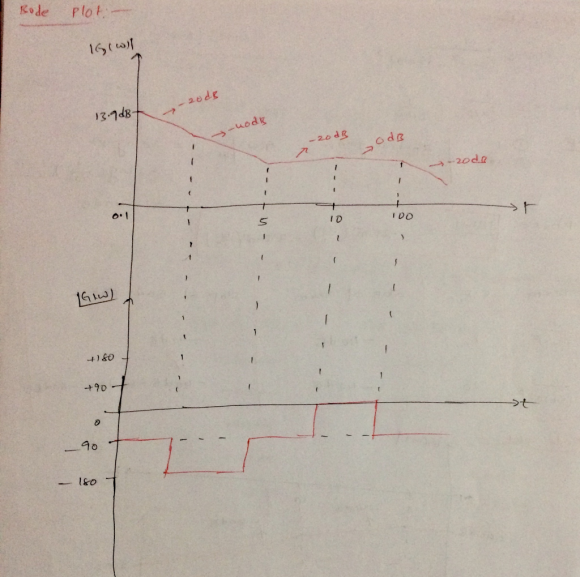

2. T(s) = (s+5)(s+10)/((s)(s+1)(s+100))

Expert Solution

Manojponduru answered 7 months ago
