Sketch the asymptotes of the Bode plot magnitude and phase for the transfer functions: 1. T(s)...

Sketch the asymptotes of the Bode plot magnitude and phase for the transfer functions:

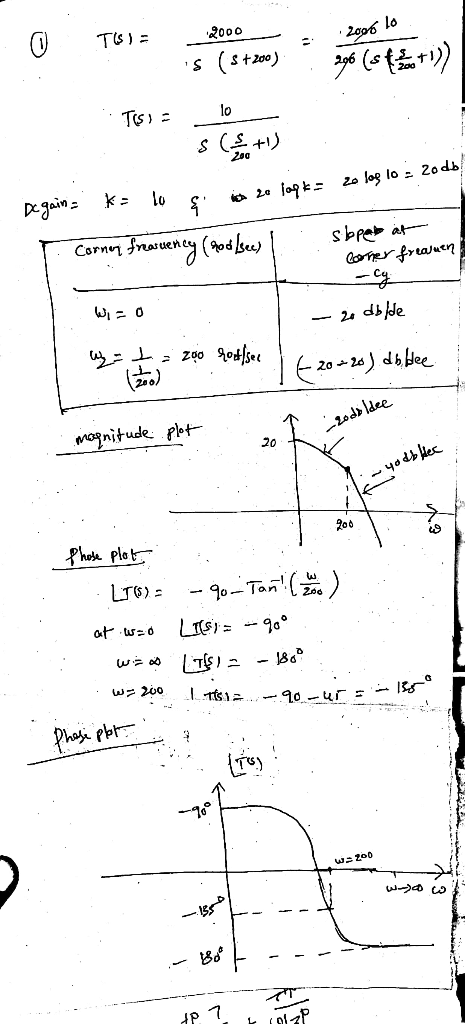

1. T(s) = 2000/(s(s+200))

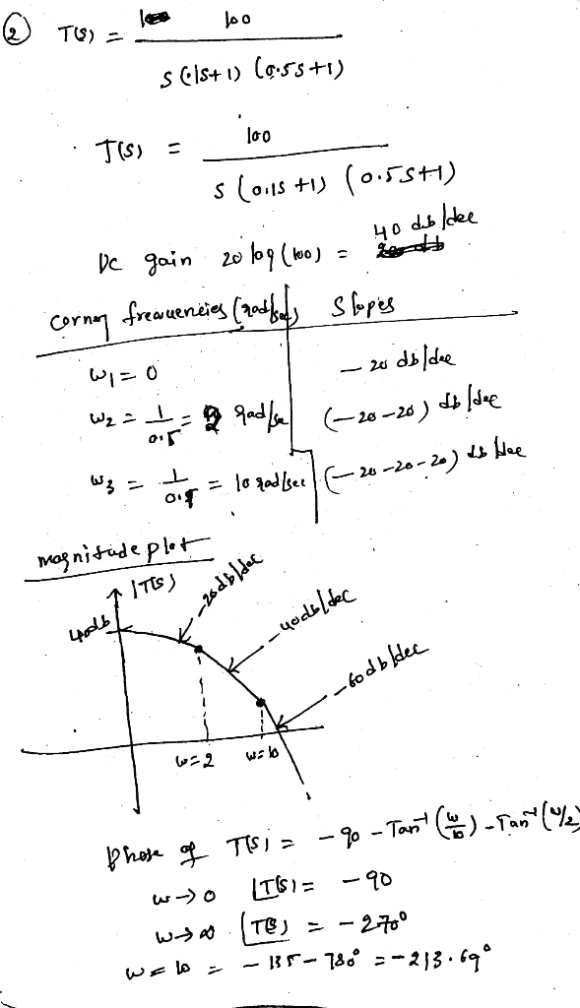

2. T(s) = 100/(s(.1s+1)(.5s+1))

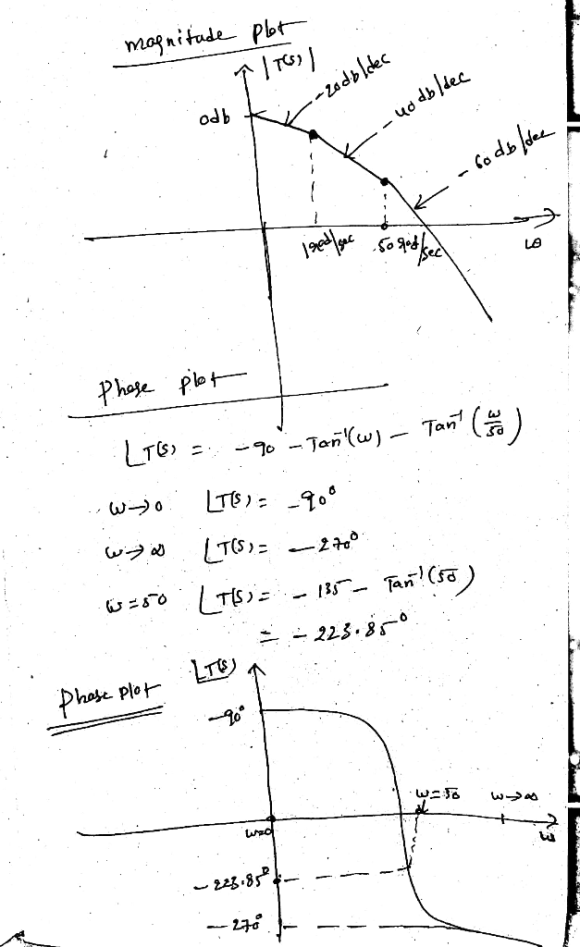

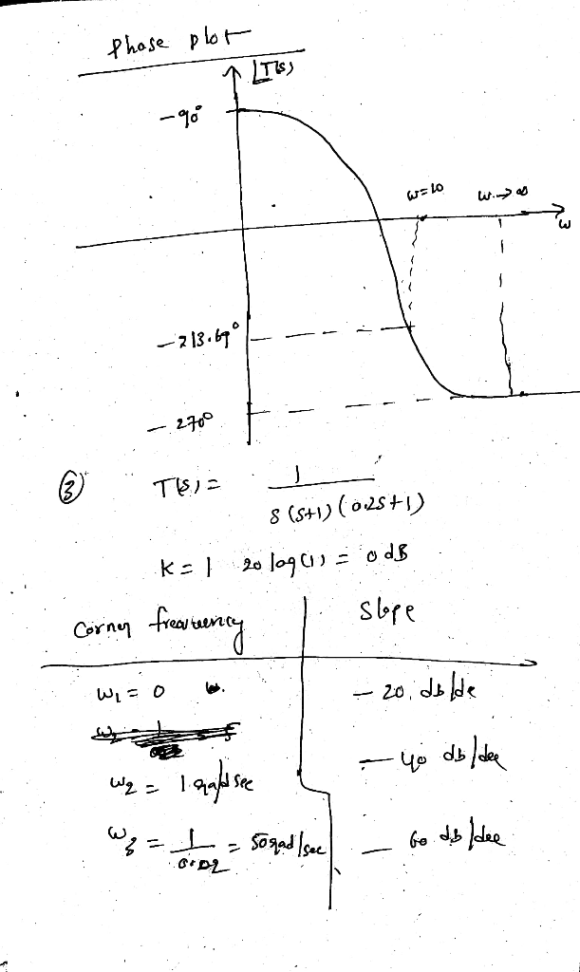

3. T(s) = 1/(s(s+1)(.02s+1))

Solutions

Expert Solution

Manojponduru answered 5 months ago
