Question

In: Computer Science

Write MIPS code for finding the (estimated) square-root of a number N, by using the following...

  1. Write MIPS code for finding the (estimated) square-root of a number N, by using the following pseudo-code:

        sqrt = N;
        repeat 10 times {

            sqrt = (sqrt + N/sqrt)/2;
        }


    The number N is entered by the user and the answer is displayed on the screen as (for example):

                            The square root of 121 is 11.

  2. Write MIPS code for finding the distance between two points [x1,y1] and [x2,y2]. The formula for the distance is:

    z = ?(x2 − x1)2 + (y2 − y1)2
    x1,x2,y1 and y2 are entered by the user and the answer z is displayed on the screen as

    (for example):

                                 The distance is 12.


    (Hint: Reuse the square-root code from the previous question.

  3. Write MIPS code that finds and prints the smallest number in the integer array “arr”. The declaration of the array is shown below:

      .data
          arr: .word 100, 10, 3, -2, 110, 0, -50, 150, -17, 8

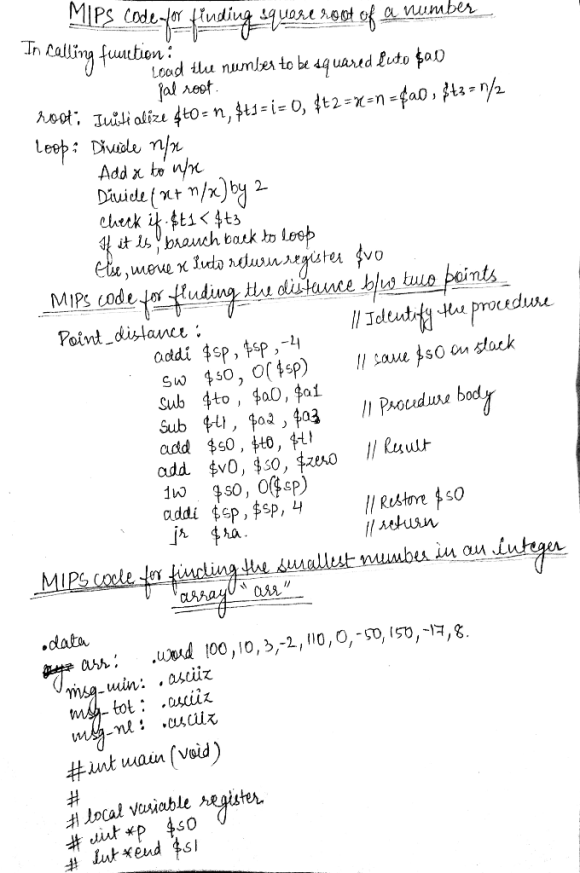

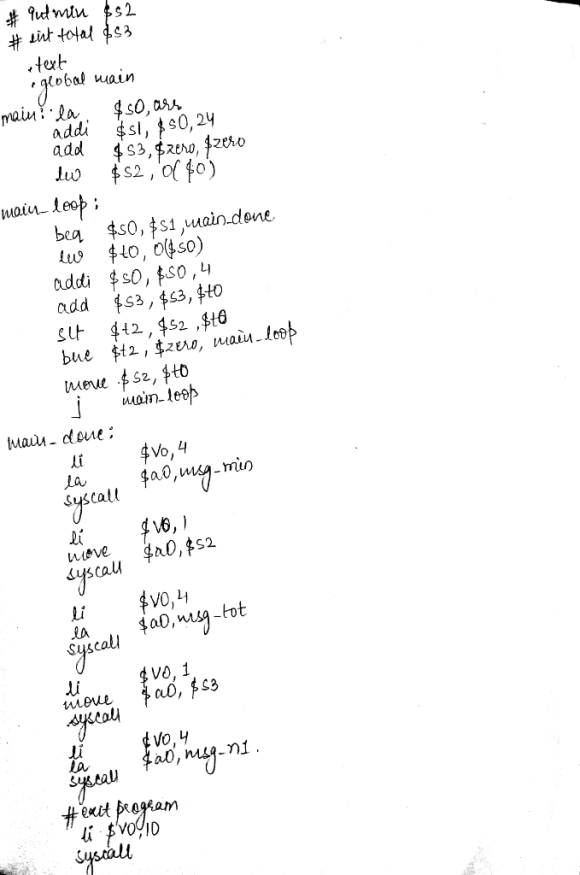

Solutions

Expert Solution
