Consider the following relation R(A, B, C, D, E, G) and the set of functional dependencies...

Consider the following relation R(A, B, C, D, E, G) and the set of functional dependencies F={ A → BCD,
BC → DE, B→D, D → A}

Note: Show the steps for each answer.

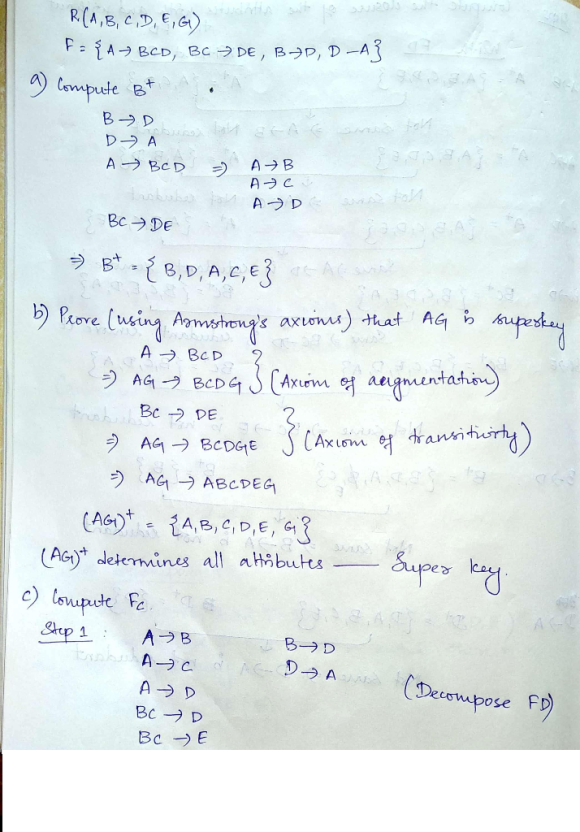

(a) Compute B⁺ .

(b) Prove (using Armstrong’s axioms) that AG is superkey.

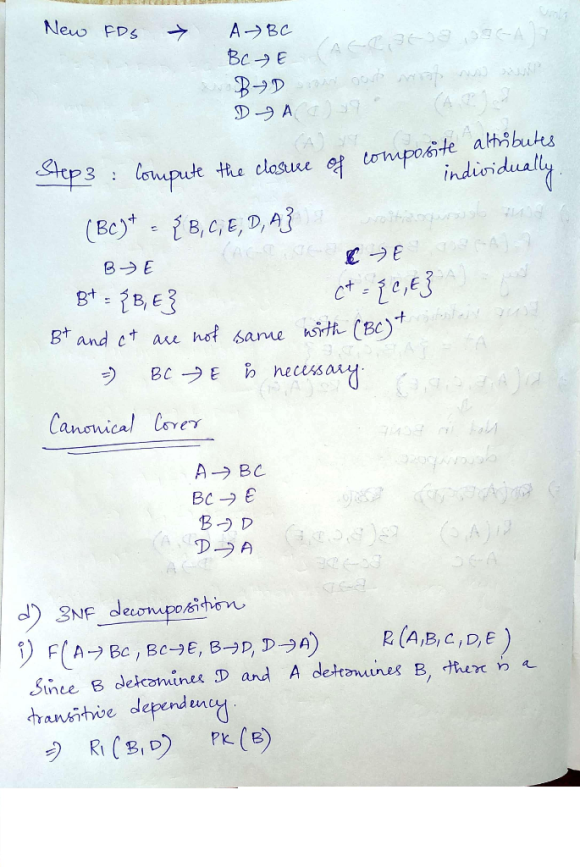

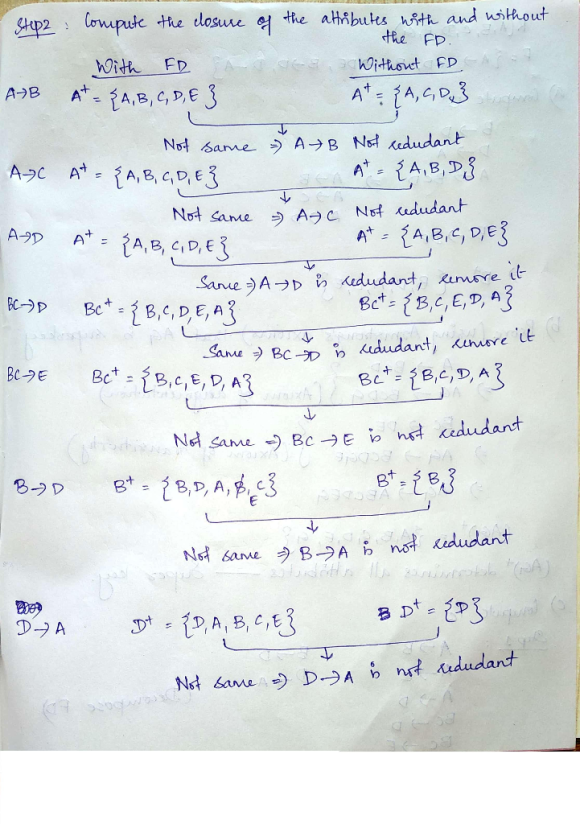

(c) Compute F_c.

(d) Give a 3NF decomposition of the given schema based on a canonical cover.

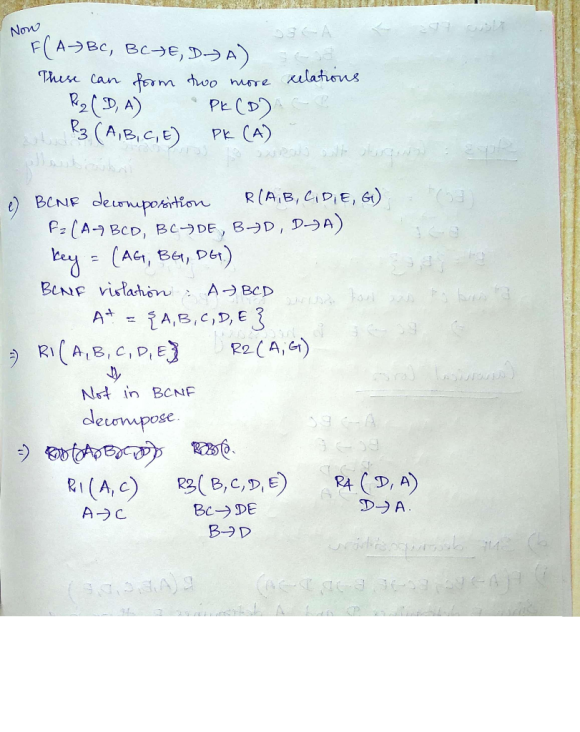

(e) Give a BCNF decomposition of the given schema based on F. Use the first functional dependency as the violator of the BCNF condition.

Expert Solution

venereology answered 1 month ago
