Relational Modelling (20 marks) For the relation: R (A, B, C, D, E, F, G) The...

Relational Modelling

For the relation:
R (A, B, C, D, E, F, G)

The following functional dependencies hold: F -> D

G -> B
C -> D
F -> C, E B -> F
A -> F, G

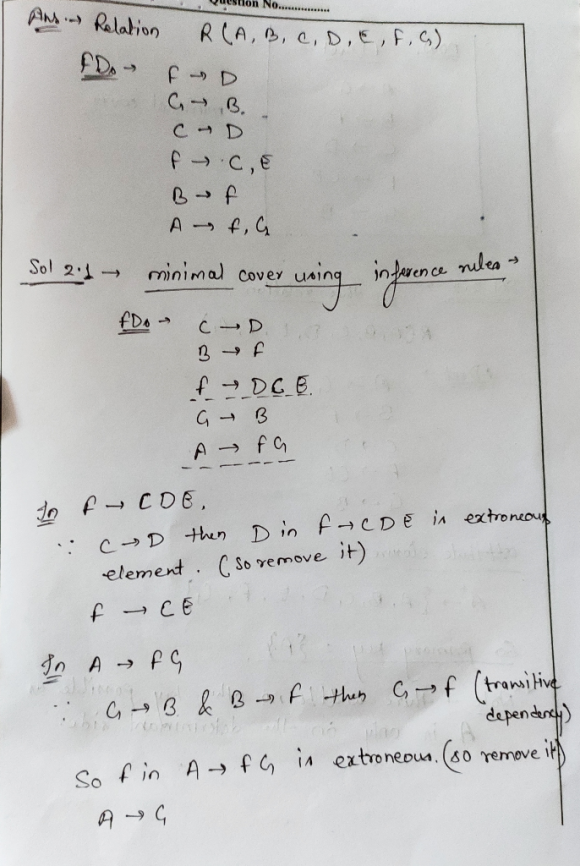

2.1​ Use Inference rules to find the ​minimal b​ asis.

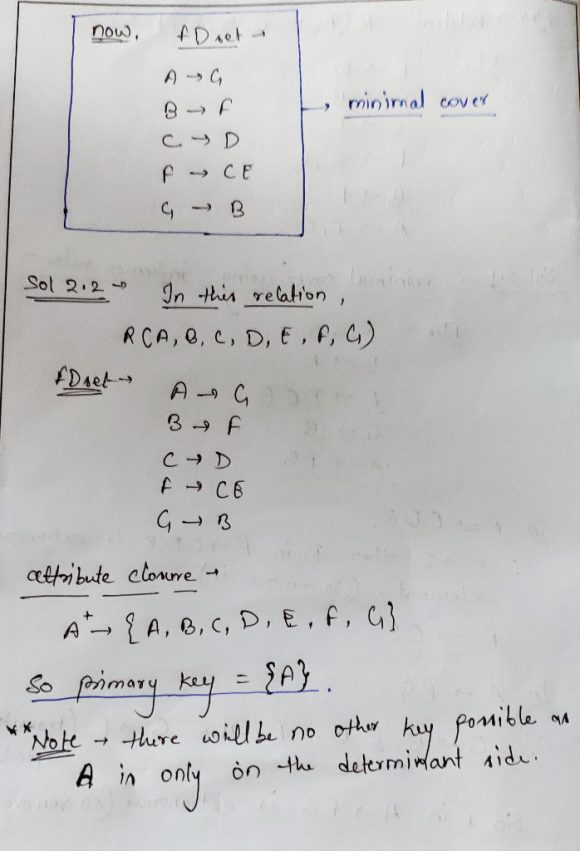

2.2​ Determine the ​primary key​ of the relation.

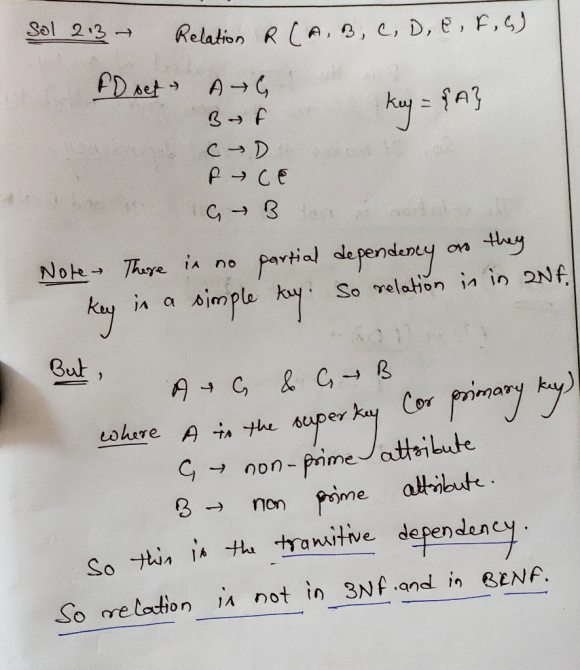

2.3​ Based on this key, determine if the relation R is in BCNF. Explain your answer in terms of the FDs and the key.

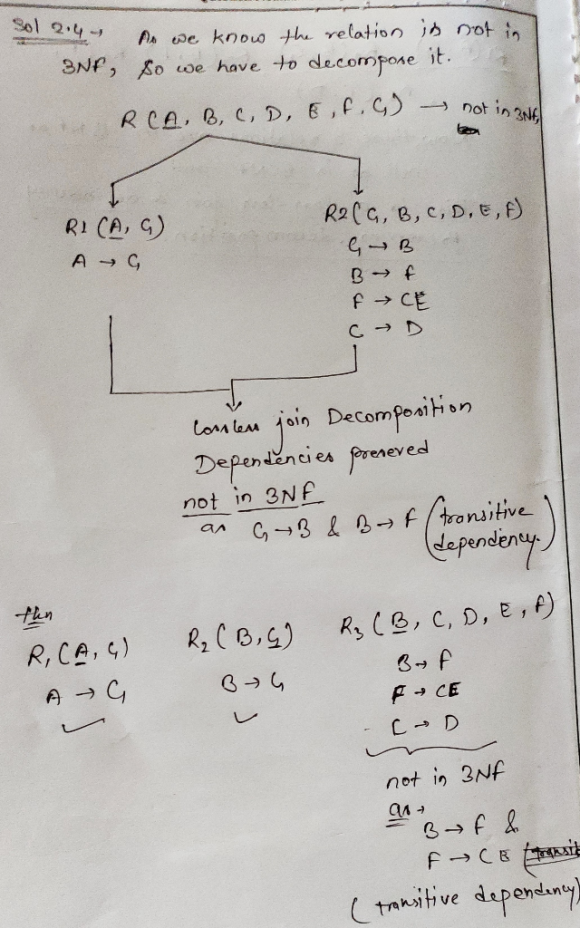

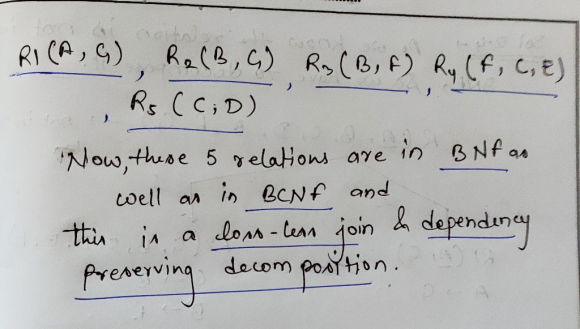

2.4​ If the relation R is not in 3NF or BCNF, then decompose the relation to 3NF/BCNF.

Solutions

Expert Solution
