Question

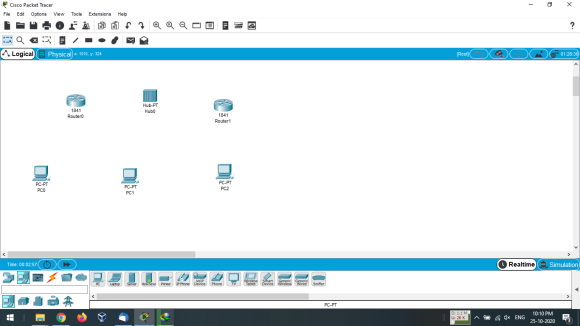

Step 1. Set up the network topology with the following devices:

• 2 1841 router
• 1 Generic Hub (Hub-PT)
• 3 Generic End Devices (PC-PT)

Step 2. Click on the router to bring up the Configuration Window.

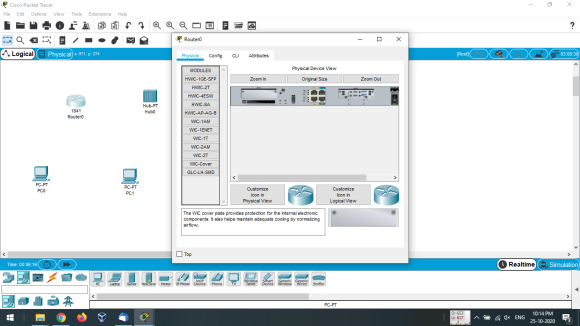

• This window has three modes:
  • Physical, Config, and CLI (Physical is the default mode).
• The Physical mode is used to add modules to a device, such as a WAN Interface Card (WIC).
• The Config mode is used for basic configuration. Commands are entered in a simple GUI format, with actual equivalent IOS commands shown in the lower part of the window.
• The CLI mode allows for advanced configuration of the device. This mode requires the user to enter the actual IOS commands just as they would on a live device.

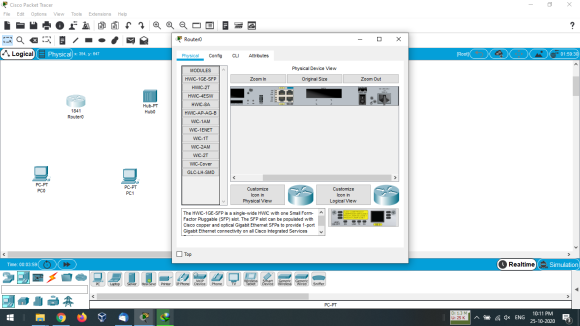

Step 4. Select the WIC-2T module and drag it to Slot 0 on the router. Then drag a WIC Cover to Slot1.

Power the device back on

Step 5. Click on the Network Component Box and select Connections. Then select a Copper Straight-through connection to connect the router to the hub.

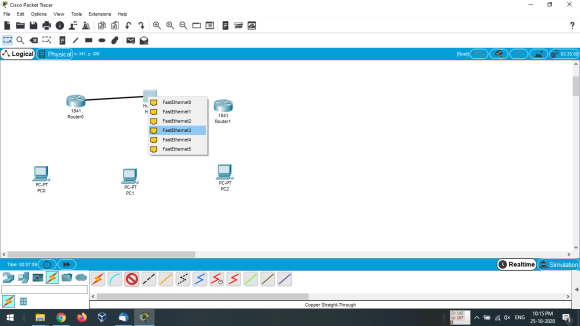

• Click on the hub and choose Port 3. Then click on the router and choose interface FastEthernet 0/0.

Click on the Config mode tab of Router0 to begin configuring the device

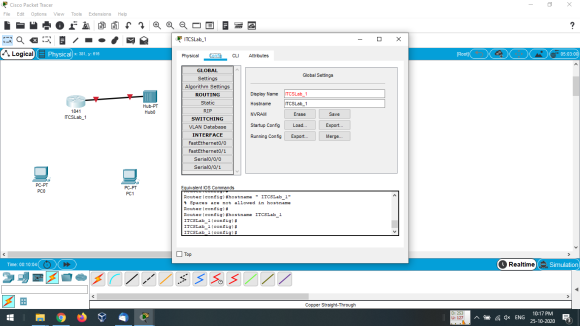

• After the device has finished booting, change the display name of the router to ITCSLab_1. Changing the display name does not affect the configuration. Click in the Hostname field and type ITCSLab_1, then press the TAB key. Note the equivalent IOS command is entered in the lower portion of the window.
• If the device hangs up in the booting process, save the activity. Then close the application and reopen the file.

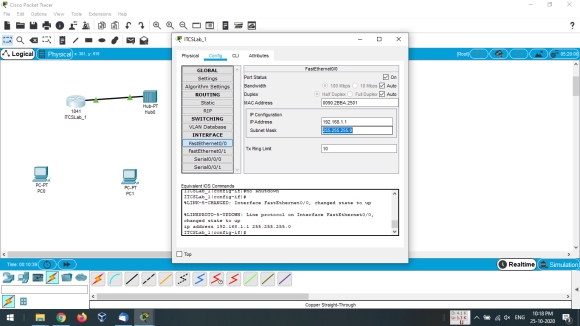

• Click on interface FastEthernet 0/0 and assign the IP address 192.168.1.1, then press the TAB key. Enter the subnet mask 255.255.255.0.

• Click the Port Status to On to enable the port (no shutdown).

• Make sure that the existing router is selected (it will be grayed out).

Step 1. In the Main Tool Bar click on the Copy tool.

Click on the Paste tool and the copied device will appear in the work area.

Click on the Network Component Box and select Connections. Then select the Serial DCE connection

Click on the ITCSLAB_1 router and select the Config mode

• Select interface Serial 0/0/0

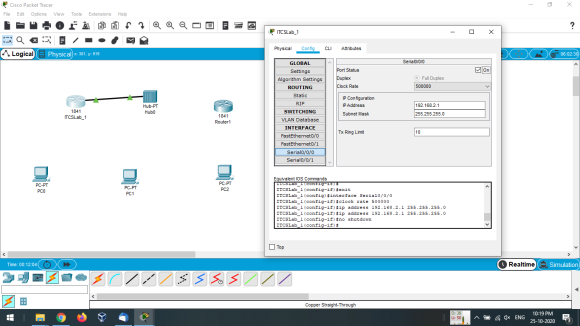

• Configure the interface Serial 0/0/0 with the IP address 192.168.2.1, then press the TAB key and enter the subnet mask 255.255.255.0 on the interface.
• Set the clock rate to 56000
• Click the Port Status to On to enable the port (no shutdown).

Step 2. Click on the new router and select the Config mode.

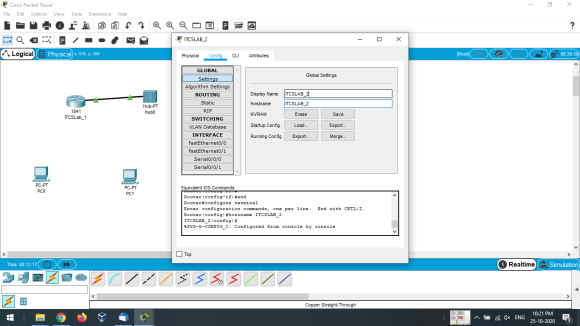

• Change the Display Name and Hostname to ITCSLAB_2.

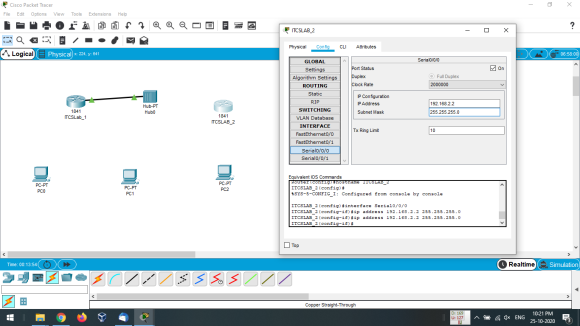

• Configure the interface Serial 0/0/0 with the IP address 192.168.2.2, then press the TAB key and enter the subnet mask 255.255.255.0 on the interface.

Step 1. Click on the ITCSLAB_1 router and select the Config tab. Then click on RIP and add the network address 192.168.1.0 and 192.168.2.0.

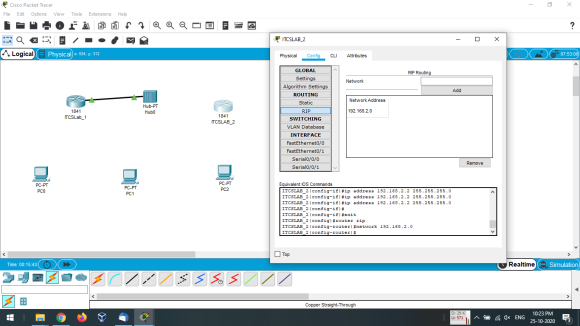

Step 2. Click on the ITCSLAB_2 router and select the Config tab. Then click on RIP and add the network address 192.168.2.0.

Step 3. Set the default gateway on the PCs

• Click on PC0 and select the Config tab. Enter the default gateway address 192.168.1.1.
• Click on PC1 and select the Config tab. Enter the default gateway address 192.168.1.1.
• Click on PC2 and select the Config tab. Enter the default gateway address 192.168.1.1.

Task 6.Test the connectivity of the network Step 1. Click on the Simulation mode.

• Select a Simple PDU and click on PC0 as the source, then click on ITCSLAB_2 as the destination.

Step 2. What is the result?

Step 3. What did the activity accomplish?

Answer 1

WIT-2T install

turn off the router first

IP set

Step 2. What is the result?

Each PC needs an IP address with only a default subnet mask it will not deliver a packet.

Step 3. What did the activity accomplish?

Assign IP to each PC with the subnet mask and default gateway and also if there is a proper image of a diagram or figure of the network then it would configure rather than reading each line.
