python 2.7 Dash How to draw a bar & line & pie chart for below dict...

python 2.7 Dash

How to draw a bar & line & pie chart for below dict data by using Dash?

The value is the percentage of each month. So total will be 100.

{'Mar': 17.973851593144104, 'Feb': 10.540182187664472, 'Sep': 8.200076731097335, 'Apr': 12.080717324339435, 'Jan': 16.118724221364918, 'Nov': 12.29654875876966, 'Dec': 11.378407574427893, 'Oct': 11.411491609192186}

Please provide the python 2.7 code.

Solutions

Expert Solution

Python Code:

import dash
import dash_core_components as dcc
import dash_html_components as html
import plotly.graph_objects as go

app = dash.Dash()

# The given dictionary
dict = {'Mar': 17.973851593144104, 'Feb': 10.540182187664472, 'Sep': 8.200076731097335, 'Apr': 12.080717324339435, 'Jan': 16.118724221364918, 'Nov': 12.29654875876966, 'Dec': 11.378407574427893, 'Oct': 11.411491609192186}

# Extracting the keys from the given dictionary
# i.e. the months
Xvalues = []
for x in dict:
   Xvalues.append(x)

# Extracting the values for each month
# from the dictionary
Yvalues = []
for x in dict:
   Yvalues.append(dict[x])



# defining the body of the web page
app.layout = html.Div(children=[
    html.H1(
        children='Graphs',
        style={
            'textAlign': 'center'
        }
    ),
    html.Div(children='Bar Graph', style={
        'textAlign': 'center'
    }),
   # Graph 1: Bar Graph
    dcc.Graph(
        id='bar',
        figure={
            'data': [
               # using plotly to define the graphs
               # x variable contains the months and corresponds to x axis
               # y variable contains the values and corresponds to y axis
               # name matters when there are different types of data to be compared
               go.Bar(x = Xvalues, y = Yvalues, name = 'Month')
            ]
        }
    ),
    html.Div(children='Line Graph', style={
        'textAlign': 'center'
    }),
   # Graph 2: Line Graph
   dcc.Graph(
        id='line',
        figure={
            'data': [
               # Scatter function is used for both line and scatter graphs
               # the difference is seen depending on the mode
               # if mode = 'lines', a line graph is displayed
               # if mode = 'markers', a scatter graph is displayed (with dots at the values)
               # if mode = 'lines + markers', a line graph, with dots at the values
               go.Scatter(x = Xvalues, y = Yvalues, name = 'Month', mode='markers + lines'),
            ]
        }
    ),
    html.Div(children='Pie Graph', style={
        'textAlign': 'center'
    }),
   dcc.Graph(
        id='pie',
        figure={
            'data': [
               # Pie graph
               go.Pie(labels=Xvalues, values=Yvalues, name='Months'),
            ]
        }
    )
])

# Running the server in localhost:8050
if __name__ == '__main__':
    app.run_server(debug=True)

Web page screenshots:

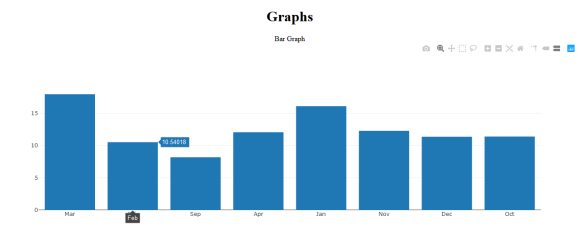

Bar graph:

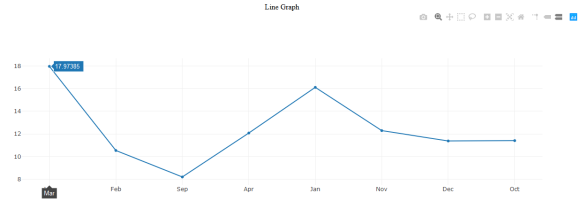

Line Graph:

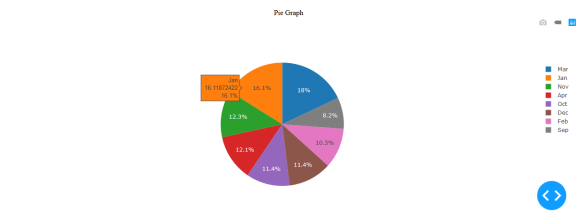

Pie Graph:
