Build the subnetting tables for the following data (Classful addressing): IP: 138.134.11.66 Mask:255.255.192.0

Build the subnetting tables for the following data (Classful addressing):

IP: 138.134.11.66 Mask:255.255.192.0

Expert Solution

Here ip address is of class B.Where default subnet mask is 255.255.0.0 but here mask is given as 255.255.192.0 so we can decide into 4 subnets as 2 bit are extra here rather default subnet.

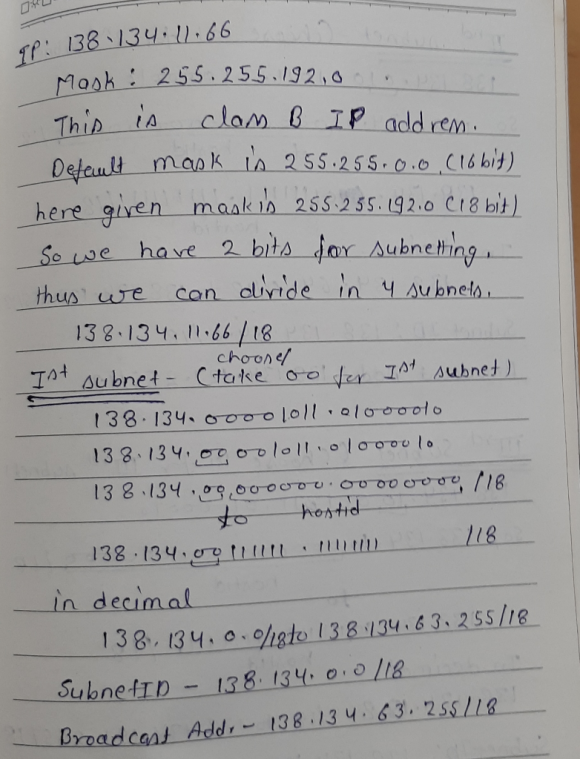

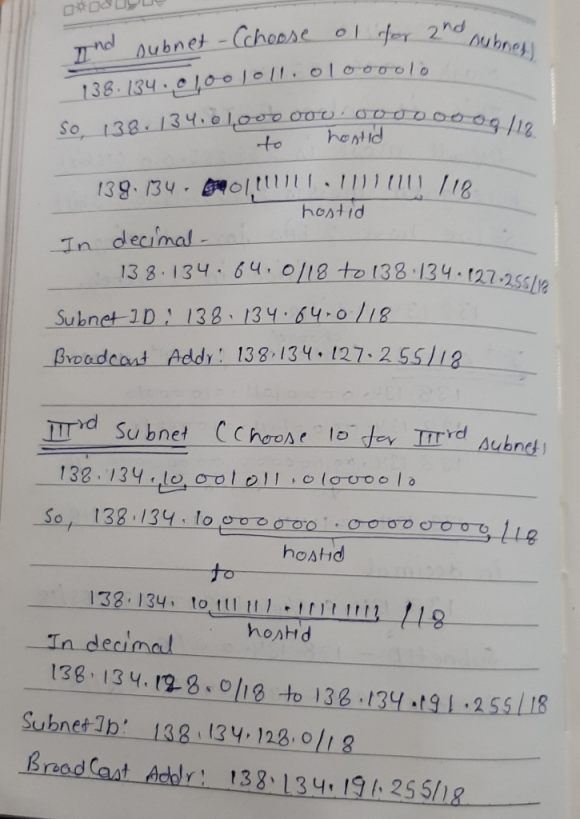

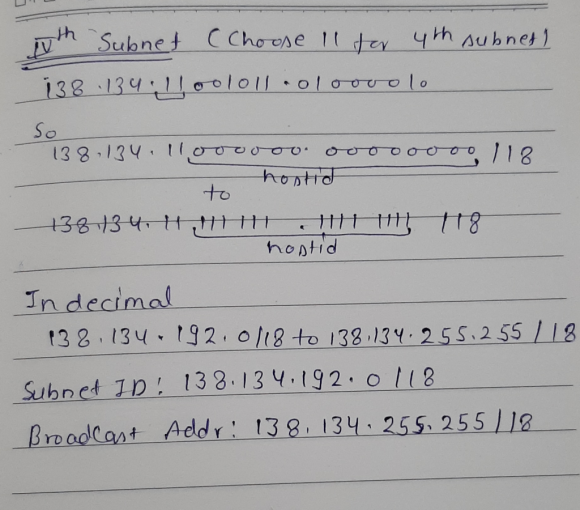

Detailed solution is in uploaded image.

venereology answered 7 months ago
