Question

In: Computer Science

Upsetfowl inC++ knock­off version of the Angry Birds game. The starter program is a working first...

Upsetfowl inC++

knock­off version of the Angry Birds game. The starter program is a working first draft of the game.

1. Correct the first FIXME by moving the intro text to a function named PrintIntro. Development suggestion: Verify the program has the same behavior before continuing.

2. Correct the second FIXME. Notice that the function GetUsrInpt will need to return two values: fowlAngle and fowlVel.

3. Correct the third FIXME. Notice that the function LaunchFowl only needs to return the value fowlLandingX, but needs the parameters fowlAngle and fowlVel.

4. Correct the fourth FIXME. Notice that the function DtrmnIfHit only needs to return the value didHitSwine, but needs the parameters fowlLandingX and swineX. The main should now look like the following code and the program should behave the same as the first draft: intmain(){ doublefowlAngle=0.0;

//angleoflaunchoffowl(rad) doublefowlVel=0.0;//velocityoffowl(m/s) doubleswineX=0.0;//distancetoswine(m) doublefowlLandingX=0.0;

//fowl’shoriz.dist.fromstart(m) booldidHitSwine=false;

//didhittheswine? srand(time(0)); swineX=(rand()%201)+50; PrintIntro(); GetUsrInpt(swineX,fowlAngle,fowlVel); fowlLandingX=LaunchFowl(fowlAngle,fowlVel); didHitSwine=DtrmnIfHit(fowlLandingX,swineX); return0; }

5. Modify the program to continue playing the game until the swine is hit. Add a loop in main that contains the functions GetUsrInpt, LaunchFowl, and DtrmnIfHit.

6. Modify the program to give the user at most 4 tries to hit the swine. If the swine is hit, then stop the loop. Here is an example program execution (user input is highlighted here for clarity):

WelcometoUpsetFowl! TheobjectiveistohittheMeanSwine. TheMeanSwineis84metersaway. Enterlaunchangle(deg):45 Enterlaunchvelocity(m/s):30 Time 1 x= 0 y= 0 Time 2 x= 21 y= 16 Time 3 x= 42 y= 23 Time 4 x= 64 y= 20 Time 5 x= 85 y= 6 Time 6 x=106 y=-16 Missed'em...

TheMeanSwineis84metersaway. Enterlaunchangle(deg):45 Enterlaunchvelocity(m/s):25 Time 1 x= 0 y= 0 Time 2 x= 18 y= 13 Time 3 x= 35 y= 16 Time 4 x= 53 y= 9 Time 5 x= 71 y= -8 Hit'em!!!

Solutions

Expert Solution

Solution:

Givendata:

Source Code for main.cpp:

#include <iostream>
#include <iomanip>
#include <cmath>
#include <cstdlib>
#include <ctime>

using namespace std;

//Global Constants
const double pi = 3.14159265;
const double grav = 9.8; // Earth gravity (m/s^2)


// Given time, angle, velocity, and gravity
// Update x and y values
void Trajectory(double t, double a, double v,
double& x, double& y)
{
x = v * t * cos(a);
y = v * t * sin(a) - 0.5 * grav * t * t;
return;
}


// convert degree value to radians
double DegToRad(double deg)
{
return ((deg * pi) / 180.0);
}


// print time, x, and y values
void PrintUpdate(double t, double x, double y)
{
cout << "Time " << fixed << setprecision(0)
<< setw(3) << t << " x = " << setw(3)
<< x << " y = " << setw(3) << y << endl;
return;
}

// Prints game's intro message
void PrintIntro()
{
cout << "Welcome to Upset Fowl!\n";
cout << "The objective is to hit the Mean Swine.\n";
return;
}

// Given swine's current horiz. position
// Get user's desired launch angle and velocity for fowl
void GetUsrInpt(double swineX, double &fowlAngle, double &fowlVel)
{
//code that gets from the user the fowl's launch angle and velocity
cout << "\nThe Mean Swine is " << swineX << " meters away.\n";

cout << "Enter launch angle (deg): ";
cin >> fowlAngle;
cout << endl;
fowlAngle = DegToRad(fowlAngle); // convert to radians

cout << "Enter launch velocity (m/s): ";
cin >> fowlVel;
cout << endl;

return;
}


// Given fowl launch angle and velocity
// Return horiz. landing position of fowl
double LaunchFowl(double fowlAngle, double fowlVel)
{
//code that calculates and returns the horiz. landing position of fowl
double fowlLandingX = 0.0;
double fowlX = 0.0;
double fowlY = 0.0;
double t = 1.0;

do {
PrintUpdate(t, fowlX, fowlY);
Trajectory(t, fowlAngle, fowlVel, fowlX, fowlY);
t=t+1.0;
} while ( fowlY > 0.0 ); // while above ground
PrintUpdate(t, fowlX, fowlY);


fowlLandingX = fowlX;

return fowlLandingX;
}


// Given fowl's horiz. landing position and swine's horiz. position
// Return whether fowl hit swine or not
bool DtrmnIfHit(double fowlLandingX, double swineX)
{
// FIXME Add code that returns true if fowl hit swine or false if not

double beforeSwineX = 0;
bool didHitSwine = false;

beforeSwineX = swineX - 30;
if ((fowlLandingX <= swineX) && (fowlLandingX >= beforeSwineX))
{
cout << "Hit'em!!!" << endl;
didHitSwine = true;
return didHitSwine;
}
else
{
cout << "Missed'em..." << endl;
didHitSwine = false;
return didHitSwine;
}


}

int main()
{

// double t = 1.0; // time (s)
//double fowlY = 0.0; // object's height above ground (m)
double fowlAngle = 0.0; // angle of launch (rad)
double fowlVel = 0.0; // velocity (m/s)
// double fowlX = 0.0;
double fowlLandingX = 0.0; // object's horiz. dist. from start (m)
double swineX = 40.0; // distance to swine (m)
//double beforeSwineX = 0.0; // distance before swine that is acceptable as a hit (m)
//bool didHitSwine = false; // did hit the swine?
int tries = 4;
int didHit = 0;

srand(20); //to ensure the correct output for grading
swineX = (rand() % 201) + 50;


//call PrintIntro here
PrintIntro();

for(int i = 0; i < tries; i++)
{
//call GetUsrInpt here
GetUsrInpt(swineX, fowlAngle, fowlVel);

//call LaunchFowl here
fowlLandingX = LaunchFowl(fowlAngle, fowlVel);

//call DtermnIfHit here
didHit = DtrmnIfHit(fowlLandingX, swineX);

if (didHit == 1)
{
return 0;
}


}

return 0;
}

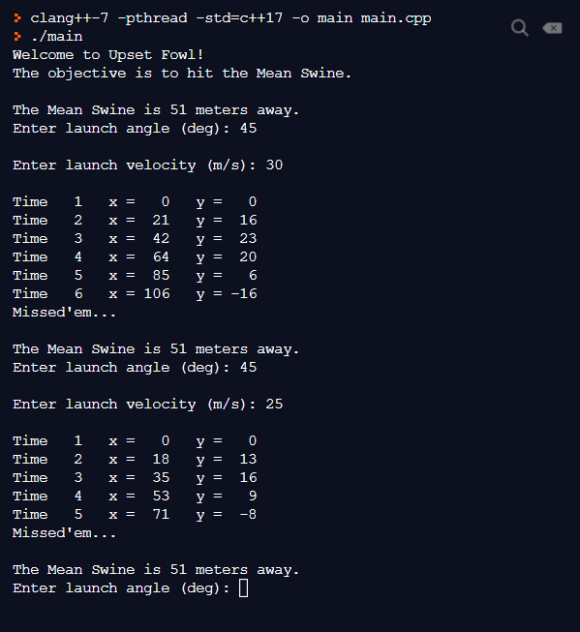

Sample Output Screenshots:

PLEASE GIVEME THUMBUP........
