Question
In: Physics
The figure gives the acceleration of a 4.0 kg particle as an applied force moves it...

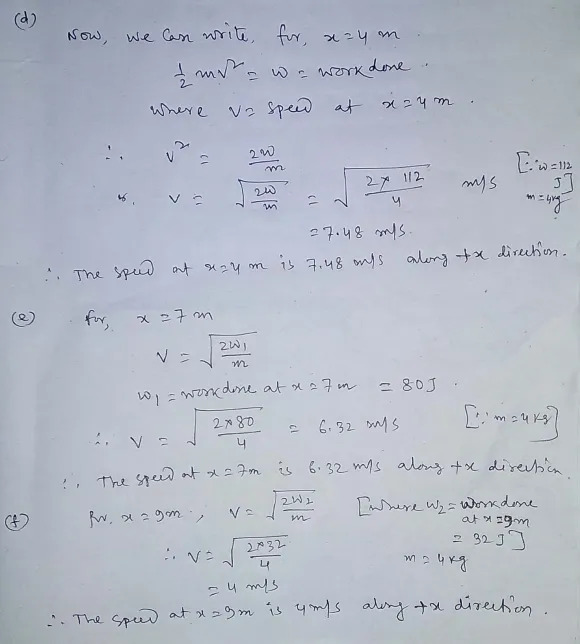

The figure gives the acceleration of a 4.0 kg particle as an applied force moves it from rest along an x axis from x = 0 to x = 9.0 m. The scale of the figure's vertical axis is set by as = 8.0 m/s2. How much work has the force done on the particle when the particle reaches (a) x = 4.0 m, (b) x = 7.0 m, and (c) x = 9.0 m? What is the particle's speed and direction (give positive answer if the particle moves along x axis in positive direction and negative otherwise) of travel when it reaches (d) x = 4.0 m, (e) x = 7.0 m, and (f) x = 9.0 m?
Solutions
genius_generous answered 2 years agoRelated Solutions
A particle moves in the xy plane with constant acceleration. At t = 0 the particle...
A particle moves in the xy plane with constant acceleration. At
t = 0 the particle is at vector r1 = (3.6 m)i + (2.8 m)j, with
velocity vector v1. At t = 3 s, the particle has moved to vector r2
= (11 m)i − (1.8 m)j and its velocity has changed to vector v2 =
(4.6 m/s)i − (6.7 m/s)j. (a) Find vector v1. vector v1 = m/s
(b) What is the acceleration of the particle? vector a...
A particle moves in the xy plane with constant acceleration. At t = 0 the particle...
A particle moves in the xy plane with constant
acceleration. At t = 0 the particle is at r1 =
(4.0 m) + (3.0 m), with velocity 1. At t = 3 s,
the particle has moved to r2 = (9 m) − (2.0 m) and its
velocity has changed to v2 = (5.0 m/s) − (6.0 m/s).
i. Find 1 = m/s
ii. What is the acceleration of the particle?
iii. What is the velocity of the particle as...
Varible Force A 1.8 kg particle moves along an x axis, being propelled by a variable...
Varible Force A 1.8 kg particle moves along an
x axis, being propelled by a variable force directed along
that axis. Its position is given by x = 3.0 m +
(4.0 m/s)t + ct2 - (2.2
m/s3)t3, with x in meters
and t in seconds. The factor c is a constant. At
t = 3.0 s, the force on the particle has a magnitude of 36
N and is in the negative direction of the axis. What is
c?
in...
A body with mass 95 kg moves with acceleration 2 m/s^2 under action of some force....
A body with mass 95 kg moves with acceleration 2 m/s^2 under
action of some force. What would be acceleration of a body with
mass 10 kg if the same force would act on it?
A positively charged particle is held at the center of a spherical shell. The figure gives...
A positively charged particle is held at the center of a
spherical shell. The figure gives the magnitude E of the
electric field versus radial distance r. The scale of the
vertical axis is set by Es = 8.0
A 1.90-kg particle moves in the xy plane with a velocity of v with arrow =...
A 1.90-kg particle moves in the xy plane with a velocity of v
with arrow = (4.00 i − 3.70 j) m/s. Determine the angular momentum
of the particle about the origin when its position vector is r with
arrow = (1.50 i + 2.20 j) m.
A particle, initially at rest, moves along the x-axis so that its acceleration at any time...
A particle, initially at rest, moves along the x-axis
so that its acceleration at any time t ≥ 0 is given by a(t) =
12t2−4 . The position of the particle when t=1 is x(1)=3
.
Write an expression for the position x(t) of
the particle at any time t ≥ 0.
The crane shown in the figure is lifting a 175-kg crate upward with an acceleration of...
The crane shown in the figure is lifting a 175-kg crate upward
with an acceleration of 1.36 m/s2. The cable from the
crate passes over a solid cylindrical pulley at the top of the
boom. The pulley has a mass of 180 kg. The cable is then wound onto
a hollow cylindrical drum that is mounted on the deck of the crane.
The mass of the drum is 158 kg, and its radius (the same as that of
the pulley)...
A particle of mass 2.00 kg is attached to a spring with a force constant of...
A particle of mass 2.00 kg is attached to a spring with a force
constant of 300 N/m. It is oscillating on a horizontal frictionless
surface with an amplitude of 4.00 m. A 7.00 kg object is dropped
vertically on top of the 2.00 kg object as it passes through its
equilibrium point. The two objects stick together.
(a) Does the amplitude of the vibrating system increase or
decrease as a result of the collision?
decreases
increases
no change
(b)By...
A particle of mass 4.00 kg is attached to a spring with a force constant of...
A particle of mass 4.00 kg is attached to a spring with a force
constant of 300 N/m. It is oscillating on a horizontal frictionless
surface with an amplitude of 5.00 m. A 9.00 kg object is dropped
vertically on top of the 4.00 kg object as it passes through its
equilibrium point. The two objects stick together.
a) By how much does the amplitude of the vibrating system change
as a result of collision?
b) By how much does...
