Question

Nobody wants a nuclear power plant in their neighborhood. Unfortunately,

the governor must locate a nuclear power plant somewhere inside a 25 square

mile area containing four cities. The governor, being primarily concerned

with reelection, desires to locate the plant in the location which will

cause the least amount of unhappiness among the constituents. In this lab,

you will write a program to assist the governor in this difficult decision.

METHOD:

^^^^^^^

Assume each city is located in an integer-pair (x, y) valued location

within a 25 x 25 square mile area. For example, a city can be located at

(4, 19), but not at (4.5, 19.8). In other words, there are no real valued

coordinate for a location of a city.

Your program will consider each integer-pair valued location within the area

as a possible site for the nuclear plant, starting at (1, 1) and continuing

across each row until the final site (25, 25) is reached.

At each possible location for the nuclear plant, your program will compute

the average unhappiness if the plant were located there. The following two

rules will be used to compute the unhappiness for a city.

      1) If the plant is within two miles or less of a city, the

         unhappiness is infinite (that is, assign a very large number

                   to the unhappiness for that city).

                   2) Otherwise, the unhappiness is equal to the population of the

                      city divided by the distance of the plant from the city.

                      The average unhappiness equals:



                               Avg. Unhappiness = Sum of the unhappiness of 4 cities /

                                                                   The total state's population.

Your program should select the site at which the average unhappiness is

smallest.

INPUT:

^^^^^^

The user should be prompted to enter the x and y coordinates and the

population for each of the four cities from the keyboard. Each coordinate

should be checked to ensure it is between 1 and 25. If not, the user should

be prompted to enter a value which is in the correct range. The population

should be entered in thousands of people. For example, if the population

is 10,000, the user should input 10.

OUTPUT:

^^^^^^^

The program should print a message indication the coordinates where

the plant should be located. Following that message, the user should be

prompted to enter a 1 to view a map of the scenario or a 0 to exit the

program.

An Example Scenario:

Enter the x and y for City 1   : 1 1

Enter the Population for City 1: 10

Enter the x and y for City 2   : 1 25

Enter the Population for City 2: 10

Enter the x and y for City 3   : 25 1

Enter the Population for City 3: 10

Enter the x and y for City 4   : 25 25

Enter the Population for City 4: 10

**********

Locate the Plant At: 13 13

Enter 1 to view a Map of the scenario, or 0 to exit: 1

               MAP OF SCENARIO

                   ---------------

C2<><><><><><><><><><><><><><><><><><><><><><><>C4

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><>PP<><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

<><><><><><><><><><><><><><><><><><><><><><><><><>

C1<><><><><><><><><><><><><><><><><><><><><><><>C3

Note: The previous scenario is just an example, you need to create your own

test cases to make sure that your program produces the correct results.

Answer 1

The code is well explained in the comments. The screenshots of the codes are here for better understanding.

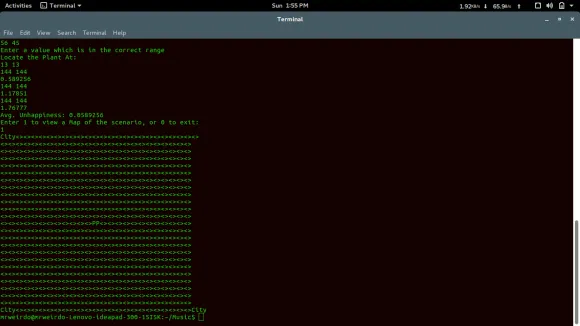

The output of the above code is:

I am attaching the code with comments for understanding So that manipulation of code could e possible for further requirements.

#include<bits/stdc++.h>
using namespace std;

int main() {

   int arr[25][25] ={0}; //declaring an array where i,j is the location of the city
   int n;
   cout<<"Enter the number of cities"<<endl;
   cin>>n; // where n is number of cities
   for(int i=0; i<n; i++)
   {
       int x,y,z;
       cout<<"Enter the x and y for City "<<i+1<<": "<<endl;
       cin>>x>>y;

        cout<<"Enter the Population for City "<<i+1<<": "<<endl;
       cin>>z;
if((x < 1) || (x > 25) || (y < 1) || (y > 25)) // if the city is not in the range then input again
   {
       cout<<"Enter a value which is in the correct range"<<endl;
       i--;
   }
       else arr[x-1][y-1]=z; // storing the population at the location

   }

   int x1,y1;
   cout<<"Locate the Plant At: "<<endl;
   cin>>x1>>y1;
while((x1 < 1) || (x1 > 25) || (y1 < 1) || (y1 > 25)) // if the plant is not in the range then input again
   {
       cout<<"Enter a value which is in the correct range"<<endl;
       cout<<"Locate the Plant At: "<<endl;
           cin>>x1>>y1;

}

double un = 0; // declaring the variable which will tell about total unhapppiness in te city
int flag = 0; // for checking if the city is within 2 miles
int sum = 0; // sum is storingt the total population of the state
for(int i=0;i<25;i++)
{
   for(int j=0;j<25;j++)
   {
       if(arr[i][j] > 0)
       {
           int v = (i+1-x1)*(i+1-x1);
           int b = (j+1-y1)*(j+1-y1);
cout<<v<<" "<<b<<endl;
           double dis = sqrt(v+b); // finding the distance

           if(dis > 2) un = un + (arr[i][j]/dis);
           else flag = 1;
           cout<<un<<endl;
           sum = sum + arr[i][j]; // sum is storingt the total population of the state
       }
   }
}

if(flag == 1) un = 1000000.00/sum;
else un = un / sum;

cout<<"Avg. Unhappiness: "<<un<<endl;

// printing the map

cout<<"Enter 1 to view a Map of the scenario, or 0 to exit: "<<endl;
int m;
cin>>m;
if(m == 1)
{
   for(int i=0;i<25;i++)
       {
           for(int j=0;j<25;j++)
           {
               if(arr[i][j] > 0)
               {
                   cout<<"City";
               }
               else if(i == x1-1 && j== y1-1) cout<<"PP";
               else cout<<"<>";
           }
           cout<<endl;
       }
}

   return 0;
   }
