Compute the longitudinal tensile strength of an aligned glass fiber-epoxy matrix composite in which the average...

Compute the longitudinal tensile strength of an aligned glass fiber-epoxy matrix composite in which the average fiber diameter and length are 0.0155 mm (0.60 × 10-4 in.) and 1.07 mm (0.042 in.), respectively, and the volume fraction of fibers is 0.38. Assume that (1) the fiber-matrix bond strength is 100 MPa (14,500 psi), (2) the fracture strength of the fibers is 3500 MPa (5 × 105 psi), and (3) the matrix stress at composite failure is 5.5 MPa (800 psi).

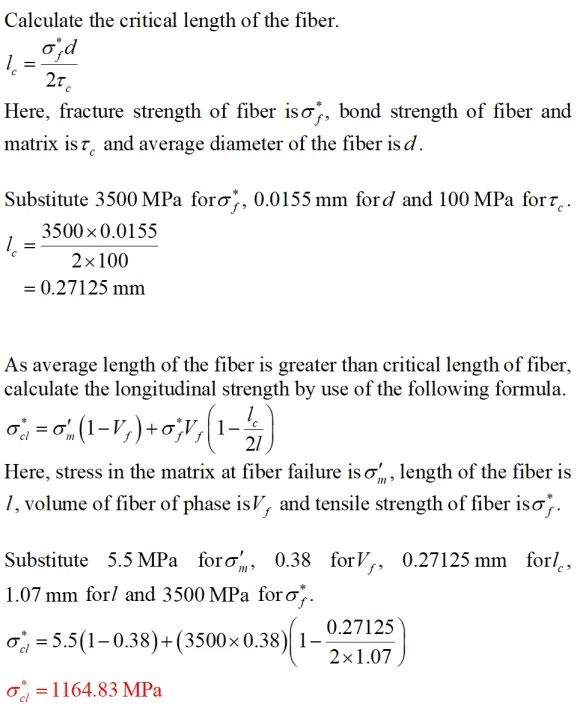

Expert Solution

samet mamat answered 2 years ago

Plot longitudinal tensile strength of an E-glass/epoxy unidirectionally reinforced composite as a function of volume fraction...

Plot longitudinal tensile strength of an E-glass/epoxy unidirectionally reinforced composite as a function of volume fraction of fiber and assuming tensile strength follows a volume rule of additivity. E-glass: modulus = 72.4 GPa, tensile break strength = 2.4 GPa, break strain = 2.6% epoxy: modulus = 3.5 GPa, tensile break strength = 45 MPa, break strain = 1.28%

A new set of fiber-reinforced composite is designed to support the body function. Compute the longitudinal...

A new set of fiber-reinforced composite is designed to support the body function. Compute the longitudinal tensile strength of this fiber–epoxy matrix biocomposite in which the average fiber diameter and length are 0.018 mm and 2.2 mm, respectively, and the volume fraction of fibers is 0.35. Assume that the fiber–matrix bond strength is 122 MPa, the fracture strength of the fibers is 3800 MPa, and the matrix stress at composite failure is 5.9 MPa.

An engineer studying the tensile strength of a composite material knows that tensile strength is approximately...

An engineer studying the tensile strength of a composite material knows that tensile strength is approximately normally distributed with σ = 60 psi. A random sample of 20 specimens has a mean tensile strength of 3450 psi. (a) Test the hypothesis that the mean tensile strength is 3500 psi, using α = 0.01 (b) What isthe smallest level of significance at which you would be willing to reject the null hypothesis? (c) What is the β error for the test...

There are 2 types of Fiber-reinforced composite material. Continuous (aligned) and discontinuous(random or aligned) If we...

There are 2 types of Fiber-reinforced composite material. Continuous (aligned) and discontinuous(random or aligned) If we have aligned composite, how can we know it is discontinuous? And what is difference with random discontinuous?

The average tensile strength of carbon fiber cloth is 600 MPa. You are testing a new...

The average tensile strength of carbon fiber cloth is 600 MPa. You are testing a new weaving pattern for the carbon fiber threads and want to know if this new weave causes a difference in the tensile strength. After testing 18 samples of the new weave, you found a sample average of 585 MPa with a standard deviation of 34 MPa. At a significance level of 0.05, test to see if this new weave has a different mean than 600...

A composite of Al2O3 particles in an epoxy matrix contains 10 wt.% Al2O3. What are the...

A composite of Al2O3 particles in an epoxy matrix contains 10 wt.% Al2O3. What are the upper and lower bounds on the elastic modulus of the composite? Data: ρAl2O3 = 3.95 g/cm3 , EAl2O3 = 300 GPa, ρepoxy = 2.0 g/cm3 , and Eepoxy = 500 MPa.

A product developer is investigating the tensile strength of a new synthetic fiber that will be...

A product developer is investigating the tensile strength of a new synthetic fiber that will be used to make cloth for men's shirts. Strength is usually affected by the percentage of cotton used in the blend of material for the fiber. The engineer conducts a completely randomized experiment with five levels of cotton and replicates the experiment five time. The data are shown bellow Cotton weight percent Observation 15 20 25 30 35 1 7 12 14 19 7 2...

The tensile strength of a fiber used in manufacturing cloth is of interest to the purchaser....

The tensile strength of a fiber used in manufacturing cloth is of interest to the purchaser. Previous experience indicates that the standard deviation of tensile strength is 2 psi. A random sample of eight fiber specimens is selected, and the average tensile strength is found to be 127 psi. USING MINITAB (please show all work) (a) Test the hypothesis that the mean tensile strength equals 125 psi versus the alternative that the mean exceeds 125 psi. Use a = 0.05....

A continuous and aligned fiber-reinforced composite is to be produced consisting of 30 vol.% aramid fibers...

A continuous and aligned fiber-reinforced composite is to be produced consisting of 30 vol.% aramid fibers and 70 vol.% of a polycarbonate matrix. The elastic modulus values of aramid fibers and polycarbonate matrix are 131 GPa and 2.4 GPa, respectively. Assume that the composite has a cross-sectional area of 320 mm2 and is subjected to a longitudinal load of 44.500 N. What is the elastic modulus of the composite in the longitudinal direction? What is the fiber/matrix load ratio? What...

Do some internet research on the properties of composite materials. a) Compare the tensile strength of...

Do some internet research on the properties of composite materials. a) Compare the tensile strength of a typical glass fibre reinforced polymer with the tensile strength of a carbon fibre reinforced polymer. Make sure you the fibre lay-up is the same in your two examples and that you record what that is in your answer. Use data tables from reputable engineering or scientific web pages or material suppliers only and cite your reference(s). Answer:....................................................................................................................... ................................................................................................................................. ................................................................................................................................. ................................................................................................................................. b) Write a...
