Question

In: Computer Science

Javascript/HTML/CSS Problem (Only use pure javascript, DO NOT USE ANY JAVASCRIPT FRAMEWORKS) Create a non-predictive T9-like...

Javascript/HTML/CSS Problem

(Only use pure javascript, DO NOT USE ANY JAVASCRIPT FRAMEWORKS)

Create a non-predictive T9-like keypad. For those who do not know what a T9 keypad looks like, use the following shell in an html file to get a sense of what it looked like on pre-smart cellular phones:


<h3>T9 Keypad</h3>
<input id="in" type="text"/>
<br>
<button>abc</button>
<button>def</button>
<br>
<button>ghi</button>
<button>jkl</button>
<button>mno</button>
<br>
<button>pqrs</button>
<button>tuv</button>
<button>wxyz</button>

<script>
// your code here
</script>
How it functions for the assignment:
* If a button contains a letter you want to type, click on the button N number of times associated to the order the letters are in. So if you wanted "c", you push the second button 3 times.
* If you push the button more than the number of letters in the button, it will wrap-around and return the letter after. For example, clicking the first button 5 times returns "b".
* (Bonus 5 points) The input field only shows the letter once you've completed a sequence of < 500 ms clicks. If you stop clicking for > 500 ms, the letter associated with the number of clicks so far, is appended to the input string.

Solutions

Expert Solution

CODE:

NOTE- For writing the t-9 code no external js library has been used, only for the UI structuring bootstrap-4 is used.

index.html:

<!DOCTYPE html>

<html lang="en">

<head>

    <meta charset="UTF-8">

    <meta name="viewport" content="width=device-width, initial-scale=1.0">

    <meta http-equiv="X-UA-Compatible" content="ie=edge">

    <title>T-9 Keypad</title>

    <!-- Latest compiled and minified CSS -->

    <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.3.1/css/bootstrap.min.css">



    <!-- jQuery library -->

    <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.4.1/jquery.min.js"></script>

    <!--Bootstrap script-->

    <script src="https://stackpath.bootstrapcdn.com/bootstrap/4.3.1/js/bootstrap.min.js"></script>

    <!--Our Script-->

    <script src="script.js"></script>

</head>

<body>

    <div class="container">

        <div class="row">

          <div class="col-md-4">

          </div>

          <div class="col-md-4">

            <div class="form-group">

              <textarea class="form-control well" id="input" readonly="true"></textarea>

            </div>

            <div class="form-group">

              <div class="row">

                <div class="col-md-4 col-sm-4 col-xs-4"><button onclick="key_Press(this);" class="btn btn-default btn-lg btn-primary" id="1">

                    <div class="text-center">1</div>

                    <div class="text-center"><small>. , !</small></div>

                  </button></div>

                <div class="col-md-4 col-sm-4 col-xs-4"><button onclick="key_Press(this);" class="btn btn-default btn-lg btn-primary" id="2">

                    <div class="text-center">2</div>

                    <div class="text-center"><small>a b c</small></div>

                  </button></div>

                <div class="col-md-4 col-sm-4 col-xs-4"><button onclick="key_Press(this);" class="btn btn-default btn-lg btn-primary" id="3">

                    <div class="text-center">3</div>

                    <div class="text-center"><small>d e f</small></div>

                  </button></div>

              </div>

            </div>

            <div class="form-group">

              <div class="row">

                <div class="col-md-4 col-sm-4 col-xs-4"><button onclick="key_Press(this);" class="btn btn-default btn-lg btn-primary" id="4">

                    <div class="text-center">4</div>

                    <div class="text-center"><small>g h i</small></div>

                  </button></div>

                <div class="col-md-4 col-sm-4 col-xs-4"><button onclick="key_Press(this);" class="btn btn-default btn-lg btn-primary" id="5">

                    <div class="text-center">5</div>

                    <div class="text-center"><small>j k l</small></div>

                  </button></div>

                <div class="col-md-4 col-sm-4 col-xs-4"><button onclick="key_Press(this);" class="btn btn-default btn-lg btn-primary" id="6">

                    <div class="text-center">6</div>

                    <div class="text-center"><small>m n o</small></div>

                  </button></div>

              </div>

            </div>

            <div class="form-group">

              <div class="row">

                <div class="col-md-4 col-sm-4 col-xs-4"><button onclick="key_Press(this);" class="btn btn-default btn-lg btn-primary" id="7">

                    <div class="text-center">7</div>

                    <div class="text-center"><small>p q r s</small></div>

                  </button></div>

                <div class="col-md-4 col-sm-4 col-xs-4"><button onclick="key_Press(this);" class="btn btn-default btn-lg btn-primary" id="8">

                    <div class="text-center">8</div>

                    <div class="text-center"><small>t u v</small></div>

                  </button></div>

                <div class="col-md-4 col-sm-4 col-xs-4"><button onclick="key_Press(this);" class="btn btn-default btn-lg btn-primary" id="9">

                    <div class="text-center">9</div>

                    <div class="text-center"><small>w x y z</small></div>

                  </button></div>

              </div>

            </div>

            <div class="form-group">

              <div class="row">

                <div class="col-md-4 col-sm-4 col-xs-4"><button onclick="key_Press(this);" class="btn btn-default btn-lg btn-primary" id="*">

                    <div class="text-center">*</div>

                    <div class="text-center"><small></small></div>

                  </button></div>

                <div class="col-md-4 col-sm-4 col-xs-4"><button onclick="key_Press(this);" class="btn btn-default btn-lg btn-primary" id="0">

                    <div class="text-center">0</div>

                    <div class="text-center"><small></small></div>

                  </button></div>

                <div class="col-md-4 col-sm-4 col-xs-4"><button onclick="key_Press(this);" class="btn btn-default btn-lg btn-primary" id="#">

                    <div class="text-center">#</div>

                    <div class="text-center"><small></small></div>

                  </button></div>

              </div>

            </div>

         </div>

          <div class="col-md-4">

        </div>



      </div>



</body>

</html>

script.js:

var input = document.getElementById("input");

var timer;

var pause_init = 0;

// pause time window

var pause_time = 500;

// start time to measure the pause

var startTime;

// end time to measure the pause

var endTime;

// is this first press of the key stroke

var first_press = true;

// stores the active key strokes

var activeKey=[];

var current;

var lastKey;

// t-9 key key array in row:x column:y format

var r1_c1 = [".",",","!", "1"];

var r1_c2 = ["a","b","c", "2"];

var r1_c3 = ["d","e","f", "3"];

var r2_c1 = ["g","h","i", "4"];

var r2_c2 = ["j","k","l", "5"];

var r2_c3 = ["m","n","o", "6"];

var r3_c1 = ["p","q","r","s", "7"];

var r3_c2 = ["t","u","v", "8"];

var r3_c3 = ["w","x","y","z", "9"];

var r4_c1= ["*"];

var r4_c2 = [" ","0"];

var r4_c3 = ["#"];

var entered_txt=[];

// assigns the word based on key press

function set_word(){

    lastKey=null;

    current = 0;

    first_press=true;

}

// check for a pause interval

function checkPause(){

    endTime = new Date().getTime();

    if (endTime - startTime >= pause_time) {

        clearInterval(timer);

        set_word();

    }

}

// main function doing the capturing of the key press

function key_Press(e){

    if (e.getAttribute('id') != lastKey) {

        current = 0;

        first_press = true;

    }



    if (e.getAttribute('id') === "0") {

        // 0 space

        activeKey = r4_c2;

    } else if (e.getAttribute('id') === "1") {

        // 1

        activeKey = r1_c1;

    } else if (e.getAttribute('id') === "2") {

        // 2 a b c

        activeKey = r1_c2;

    } else if (e.getAttribute('id') === "3") {

        // 3 d e f

        activeKey = r1_c3;

    } else if (e.getAttribute('id') === "4") {

        // 4 g h i

        activeKey = r2_c1;

    } else if (e.getAttribute('id') === "5") {

        // 5 j k l

        activeKey = r2_c2;

    } else if (e.getAttribute('id') === "6") {

        // 6 m n o

        activeKey = r2_c3;

    } else if (e.getAttribute('id') === "7") {

        // 7 p q r s

        activeKey = r3_c1;

    } else if (e.getAttribute('id') === "8") {

        // 8 t u v

        activeKey = r3_c2;

    } else if (e.getAttribute('id') === "9") {

        // 9 w x y z

        activeKey = r3_c3;

    }

    else if (e.getAttribute('id') === "*") {

        // *

        activeKey = r4_c1;

        current = 0;

        first_press = true;

    }

    else if (e.getAttribute('id') === "#") {

        // #

        activeKey = r4_c3;

        current = 0;

        first_press = true;

    }

    if (current < activeKey.length-1) {

        current++;

    }else{

        current = 0;

        first_press=true;

    }

    if (first_press) {

        current = 0;

        first_press = false;

    }

    // clear the pause timer

    clearInterval(timer);

    startTime = new Date().getTime();

    pause_init = 0;

    timer = setInterval(checkPause, 5);

    if (e.getAttribute('id') != lastKey) {

        entered_txt.push(activeKey[current]);

    }else{

        entered_txt.pop();

        entered_txt.push(activeKey[current]);

    }

    // final diaply of the text appeded with older entries

    document.getElementById("input").value=entered_txt.join("");

    lastKey = e.getAttribute('id');

}

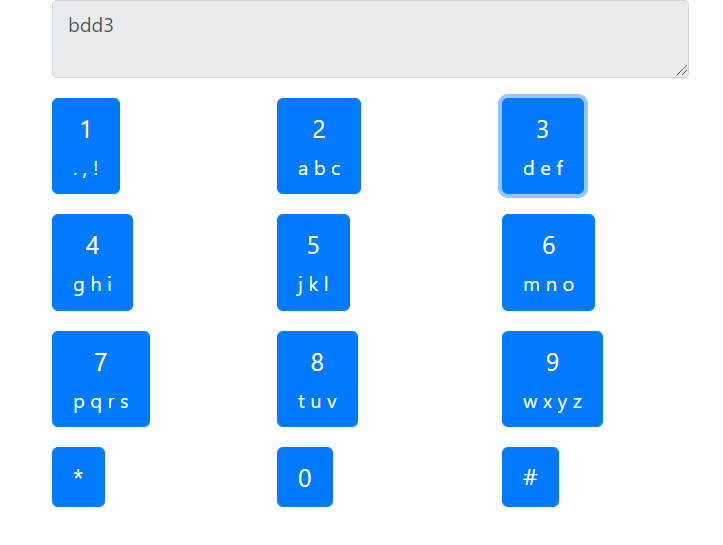

RESULT:

venereology answered 1 hour ago
