Consider two identical point sources a distance d apart emitting identical waves of wavelength λ, but...

Consider two identical point sources a distance d apart emitting identical waves of wavelength λ, but in this problem, one of the sources is phase shifted from the other by 180 degree.

A) What is the intensity as a function of angle?

B) In which directions is the intensity a maximum?

C) In which directions is the intensity a minimum?

D) What is the minimum intensity?

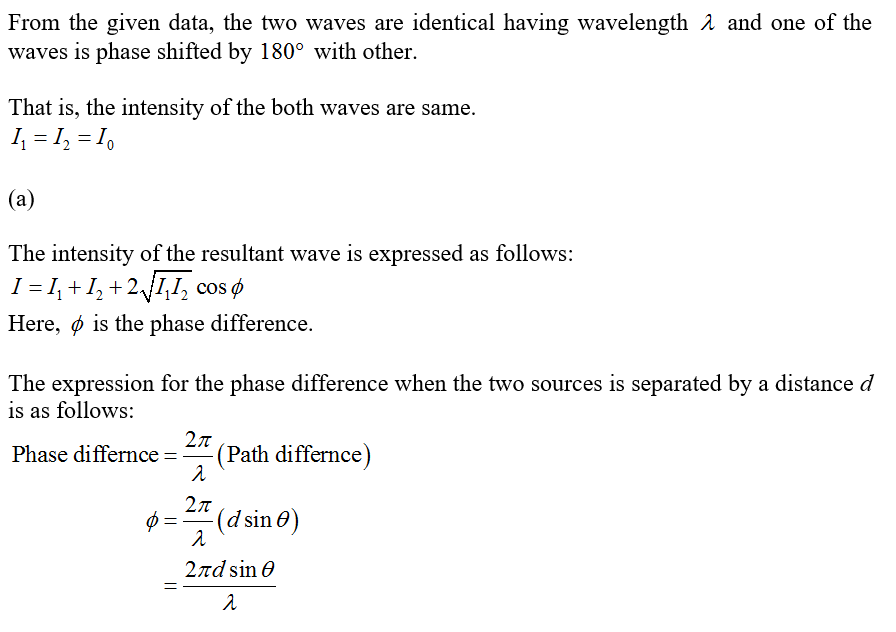

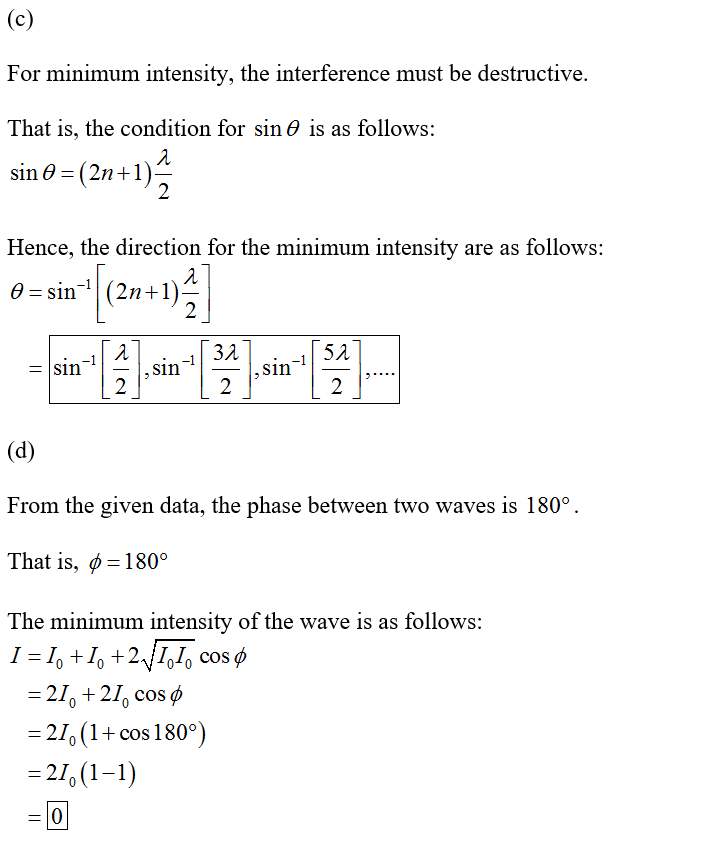

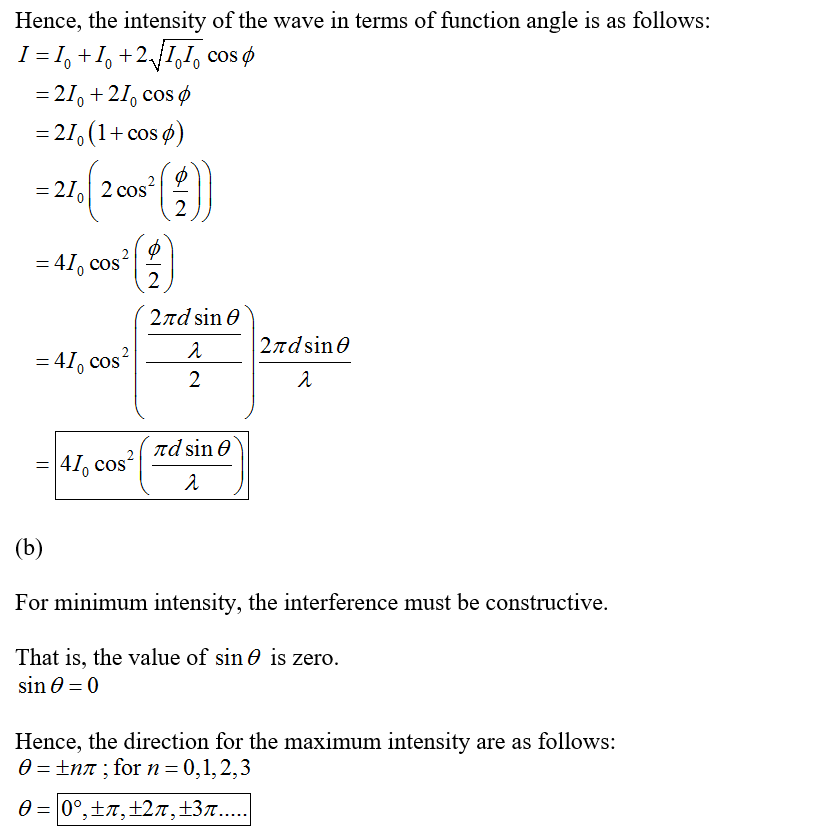

Expert Solution

genius_generous answered 2 hours ago

Two speakers spaced emitting identical sound waves in phase with each other of wavelength 1.00 m...

Two speakers spaced emitting identical sound waves in phase with each other of wavelength 1.00 m are spaceced 5.00 m from eachother. At what minimal distance (in m) from one of them should an observer stand to hear almost nothing (the first minimum)(__________)? The first maximum after this minimum (__________)? Second minimum (__________)? Second maximum (__________)? Third minimum (__________)? Third maximum (__________)? How many minima overall can be observed (__________)? How many maxima (__________)?

Coherent electromagnetic waves with wavelength λ=500nm pass through two identical slits. The width of each slit...

Coherent electromagnetic waves with wavelength λ=500nm pass through two identical slits. The width of each slit is aa, and the distance between the centers of the slits is d=9.00mm. a.What is the smallest possible width aa of the slits if the m=3 maximum in the interference pattern is not present? b.What is the next larger value of the slit width for which the m=3 maximum is absent?

What is the wavelength, λ, of a resulting wave of two co-propagating waves with λ1, λ2,...

What is the wavelength, λ, of a resulting wave of two co-propagating waves with λ1, λ2, that have the same frequency and the same amplitude?

Two sources emit electromagnetic waves that are coherent and in phase. To reach point P, the...

Two sources emit electromagnetic waves that are coherent and in phase. To reach point P, the waves from the first source travel 10 m, and the waves from the second source have travel 15 m. What is the maximum possible wavelength for the waves to have constructive interference at point P?

Light with wavelength λ is incident on a double slit with spacing d. A pattern is...

Light with wavelength λ is incident on a double slit with spacing d. A pattern is observed on a screen which is far from the slits (compared to the separation between the slits). a.) Explain whether each of the following is correct or not. 1.) The pattern looks like a wave with bright fringes separated by a distance λ. 2.) The pattern looks like a wave with bright fringes separated by distance d. 3.) The pattern looks like a wave...

10) Two coherent sources emit waves that have a wavelength of 0.44 m. Determine whether constructive...

10) Two coherent sources emit waves that have a wavelength of 0.44 m. Determine whether constructive or destructive interference occurs at a point whose distances from the two sources are as follows: (a) 1.32 and 3.08m; (b) 2.67 and 3.33m; (c) 2.20 and 3.74m; (d) 1.10 and 4.18m. The answers given are: 0.68 degrees, 1.4 degrees, 2.0 degrees If you could explain as you go through the problem that would be fantastic thank you.

Two point charges, -10nC and +18nC are held fixed at a distance of 0.55m apart. Assume...

Two point charges, -10nC and +18nC are held fixed at a distance of 0.55m apart. Assume that both charges lie on the x-axis, for the -10nC x=0 and for the +18nC charge x=0.55m. Where can a +20nC charge be placed so that the net force on it is zero? Where can a -20nC charge be placed so that the net force on it is zero?

Two identical insulated metal spheres are separated d metres apart and carry charges of +q and...

Two identical insulated metal spheres are separated d metres apart and carry charges of +q and –q. The force that they exert on each other is 4 x 10-3 N. If the charged spheres are now separated by 3d metres, the magnitude of the new force between them is:

Two large, flat metal plates are parallel to each other, a distance d apart. A charge...

Two large, flat metal plates are parallel to each other, a distance d apart. A charge of Q is placed on them and then they are electrically isolated. As a result, at the midpoint between the two plates the electric field has magnitude E. If the separation of the plates is then reduced to d/2 what is the magnitude of the electric field at the midpoint? A) 2E B) E/2 C) 0 D) 4E E) E

You observe two point sources of light that are spaced 5 cm apart which are each...

You observe two point sources of light that are spaced 5 cm apart which are each emitting light of wavelength of 420 nm. If the diameter of your pupil is 2 mm, how distant can the objects be from your eye for you to just barely resolve them? A long, straight wire carries a steady current of 50 A. What is the magnetic field strength at a distance of 7 cm from the wire?
