Question
In: Physics
A -8.50 nC point charge and a +17.0nC point charge are 14.5 cm apart on the...
A -8.50 nC point charge and a +17.0nC point charge are 14.5 cm apart on the x-axis.
a)What is the electric potential at the point on the x-axis where the electric field is zero?
b)What is the magnitude of the electric field at the point on the x-axis, between the charges, where the electric potential is zero?
Solutions

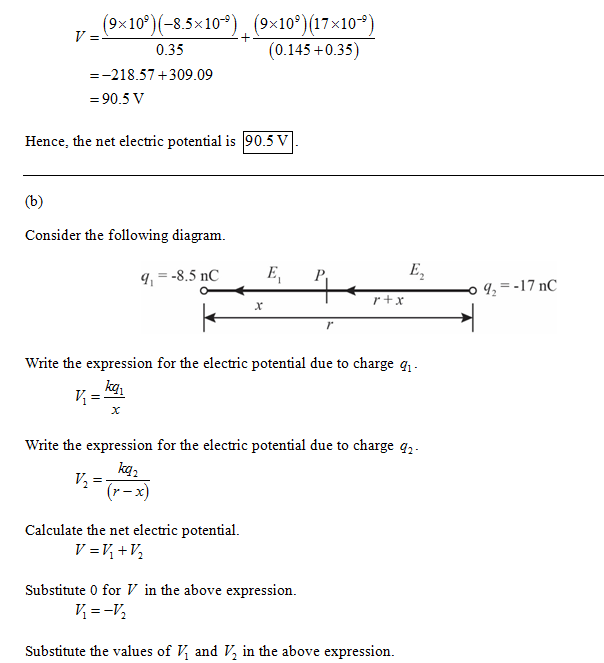

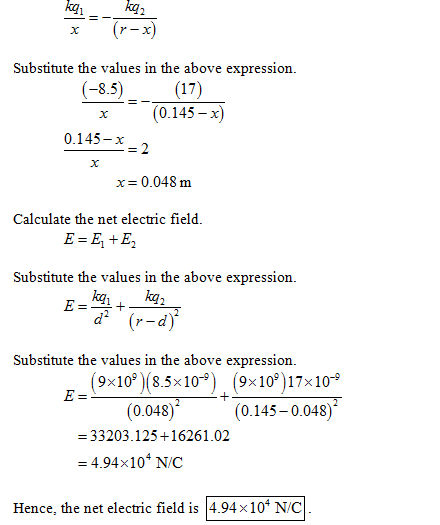

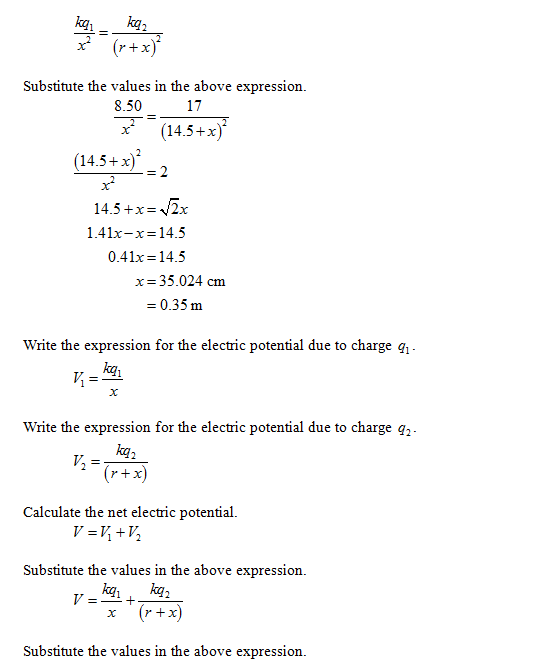

genius_generous answered 1 hour agoRelated Solutions
A -8.50 nC point charge and a +17.0nC point charge are 17.5 cm apart on the...
A -8.50 nC point charge and a +17.0nC point charge are 17.5 cm
apart on the x-axis.
What is the electric potential at the point on the x-axis where
the electric field is zero?
What is the magnitude of the electric field at the point on the
x-axis, between the charges, where the electric potential
is zero?
A -10.0 nC point charge and a +20.0 nC point charge are 15.0 cm apart on...
A -10.0
nC
point charge and a +20.0
nC
point charge are 15.0
cm
apart on the
x-axis.
Part A)
What is the electric potential at the point on the
x-axis
where the electric field is zero? Answer in V
Part B)
What is the magnitude of the electric field at the point on
the
x-axis,
between the charges, where the electric potential is zero? Answer
in N/C
A -12.0 nC point charge and a +24.0nC point charge are 18.0 cm apart on the...
A -12.0 nC point charge and a +24.0nC point charge are 18.0 cm
apart on the x axis
What is the electric potential at the point on the x axis where
the electric field is zero?
What is the magnitude of the electric field at the point on the
x-axis, between the charges, where the electric potential
is zero?
A -10.0 nC point charge and a +20.0nC point charge are 13.5 cm apart on the...
A -10.0 nC point charge and a +20.0nC point charge are 13.5 cm
apart on the x-axis.
Part A
What is the electric potential at the point on the x-axis where
the electric field is zero?
Express your answer with the appropriate units.
Part B
What is the magnitude of the electric field at the point on the
x-axis, between the charges, where the electric potential
is zero?
Express your answer with the appropriate units.
A -11.0 nC point charge and a +22.0nC point charge are 18.0 cm apart on the...
A -11.0 nC point charge and a +22.0nC point charge are 18.0 cm
apart on the x-axis.
A)What is the electric potential at the point on the
x-axis where the electric field is zero?
B) What is the magnitude of the electric field at the point on
the x-axis, between the charges, where the electric
potential is zero?
A -3.00 nC point charge is at the origin, and a second -6.50 nC point charge...
A -3.00 nC point charge is at the origin, and a second -6.50 nC
point charge is on the x-axis at x = 0.800 mm.
a. Find the electric field (magnitude and direction) at point on
the x-axis at x = 0.200 m.
b.Find the electric field (magnitude and direction) at point on
the x-axis at x= 1.20 m.
c.Find the electric field (magnitude and direction) at point on
the x-axis at x = -0.200 m.
A -3.00 nC point charge is at the origin, and a second -5.50 nC point charge...
A -3.00 nC point charge is at the origin, and a second -5.50 nC
point charge is on the x-axis at x = 0.800 m.
Q1: Find the net electric force that the two charges would exert
on an electron placed at point on the x-axis at x = 0.200 m.
Q2: Find the net electric force that the two charges would exert
on an electron placed at point on the x-axis at x = 1.20 m.
Q3: Find the...
A -3.50 nC point charge is at the origin, and a second -5.50 nC point charge...
A -3.50 nC point charge is at the origin, and a second -5.50 nC
point charge is on the x-axis at x = 0.800 mm.
D) Find the net electric force that the two charges would exert
on an electron placed at point on the x-axis at x = 0.200 mm.
Express your answer with the appropriate units. Enter positive
value if the force is in the positive x-direction and negative
value if the force is in the negative x-direction....
A -4.00 nC point charge is at the origin, and a second -5.00 nC point charge...
A -4.00 nC point charge is at the origin, and a second -5.00 nC
point charge is on the x-axis at x = 0.800 mm.
a. Find the net electric force that the two charges would exert
on an electron placed at point on the x-axis at x = 0.200 mm.
b. Find the net electric force that the two charges would exert
on an electron placed at point on the x-axis at x = 1.20 mm.
c. Find the...
A -3.00 nC point charge is at the origin, and a second -5.50 nC point charge...
A -3.00 nC point charge is at the origin, and a second -5.50 nC
point charge is on the x-axis at x = 0.800 m.
Q1: Find the net electric force that the two charges would exert
on an electron placed at point on the x-axis at x = 1.20 mm.
Q2: Find the net electric force that the two charges would exert
on an electron placed at point on the x-axis at x = -0.200 m
