At t=0 a grinding wheel has an angular velocity of 27.0 rad/s . It has a...

At t=0 a grinding wheel has an angular velocity of 27.0 rad/s . It has a constant angular acceleration of 25.0 rad/s2 until a circuit breaker trips at time t = 2.00 s . From then on, it turns through an angle 430 rad as it coasts to a stop at constant angular acceleration.

Through what total angle did the wheel turn between t=0 and the time it stopped?At what time did it stopWhat was its acceleration as it slowed down?

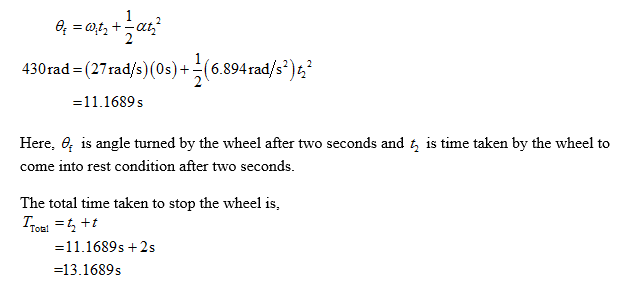

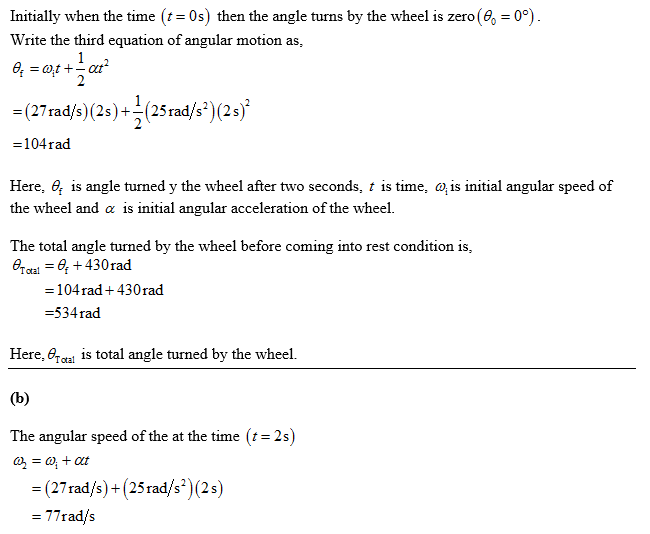

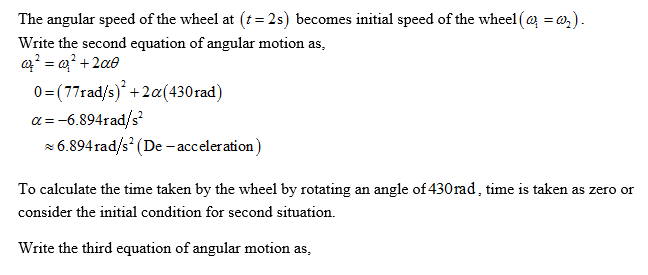

Expert Solution

genius_generous answered 2 hours ago

At time t=0 a grinding wheel has an angular velocity of 29.0 rad/s . It has...

At time t=0 a grinding wheel has an angular velocity of 29.0 rad/s . It has a constant angular acceleration of 29.0 rad/s2 until a circuit breaker trips at time t = 2.30 s . From then on, the wheel turns through an angle of 433 rad as it coasts to a stop at constant angular deceleration. A) Through what total angle did the wheel turn between t=0 and the time it stopped? Express your answer in radians. B) At...

At t = 0, a flywheel has an angular velocity of 10 rad/s, an angular acceleration...

At t = 0, a flywheel has an angular velocity of 10 rad/s, an angular acceleration of -0.44 rad/s2, and a reference line at ?0 = 0. (a) Through what maximum angle ?max will the reference line turn in the positive direction? What are the (b) first and (c) second times the reference line will be at ? = ?max/4? At what (d) negative time and (e) positive time will the reference line be at ? = -8.0 rad?

At t = 0, a flywheel has an angular velocity of 6.2 rad/s, an angular acceleration...

At t = 0, a flywheel has an angular velocity of 6.2 rad/s, an angular acceleration of -0.18 rad/s2, and a reference line at θ0 = 0. (a) Through what maximum angle θmax will the reference line turn in the positive direction? What are the (b) first and (c) second times the reference line will be at θ = θmax/5? At what (d) negative time and (e) positive time will the reference line be at θ = -7.7 rad?

A grinding wheel is initially rotating with an angular velocity 4000 rad/s when its motor is...

A grinding wheel is initially rotating with an angular velocity 4000 rad/s when its motor is suddenly turned off. It comes to rest in 10 s. Through what angle did it rotate during the first second after the motor was turned off? Please show work and Express answer in radians. Thank you!

A wheel has an initial angular velocity of 1 rad/s and undergoes an angular acceleration of...

A wheel has an initial angular velocity of 1 rad/s and undergoes an angular acceleration of 10 rad/s^2. (a) How many radians does it rotate in 4 sec? (b) What is its angular velocity at this time?

A Wheel initially rotating at an angular velocity of 15.0 rad/s is decelerating at a rate...

A Wheel initially rotating at an angular velocity of 15.0 rad/s is decelerating at a rate of 2.0 rad/s². How many revolutions will the wheel make before coming to rest?

A gear has an angular velocity equal to 20 rad/s initially, but it speeds up to...

A gear has an angular velocity equal to 20 rad/s initially, but it speeds up to 40 rad/s in 5.0 seconds, while experiencing angular acceleration that is constant. Compute the number of turns the gear has undergone during those 5.0 seconds? 28 32 52 39 20 24

22. A wheel, orginally rotating at 125 rad/s undergoes a constant angular deceleration of 5.00 rad/s^2....

22. A wheel, orginally rotating at 125 rad/s undergoes a constant angular deceleration of 5.00 rad/s^2. What is its angular speed after it has turned through an angle of 522 radians? 19. When you are out for a shopping, you noticed that the digitial sign outside the shopping center reports that the temperature is 43•C. What is the temperature in degrees Fahrenheit ? 16. A 77 -N •m torque acts on a wheel with a moment if inertia 175 kg...

Q1: Find the final angular velocity if a grinding wheel starts from rest and accelerates at 2...

Q1: Find the final angular velocity if a grinding wheel starts from rest and accelerates at 2 rad/s^2. Q2: If the grinding wheel has a mass of 60kg: a) Find its rotational inertia. b) Find the torque that produces the acceleration. c) Find angular momentum at the instant it has rotated for 8s. I am pretty much lost. Any help will be greatly appreciated.

A wheel, starting from rest, has a constant angular acceleration of 0.7 rad/s^2. In a 0.5-s...

A wheel, starting from rest, has a constant angular acceleration of 0.7 rad/s^2. In a 0.5-s interval, it turns through an angle of 101 rad. How long has the wheel been in motion at the start of this 0.5-s interval?
