A particle carrying charge +q is located on the xaxis at x=+d. A particle carrying charge...

A particle carrying charge +q is located on the xaxis at x=+d. A particle carrying charge ?3q is located on the x axis at x=?7d.

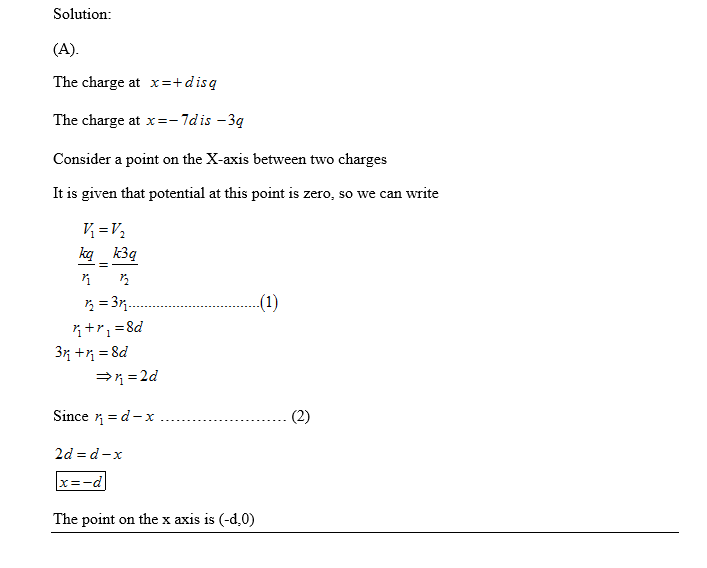

A. With zero potential at infinity, at what location on the x axis with negative coordinate is the electrostatic potential zero? Express your answer in terms of d.

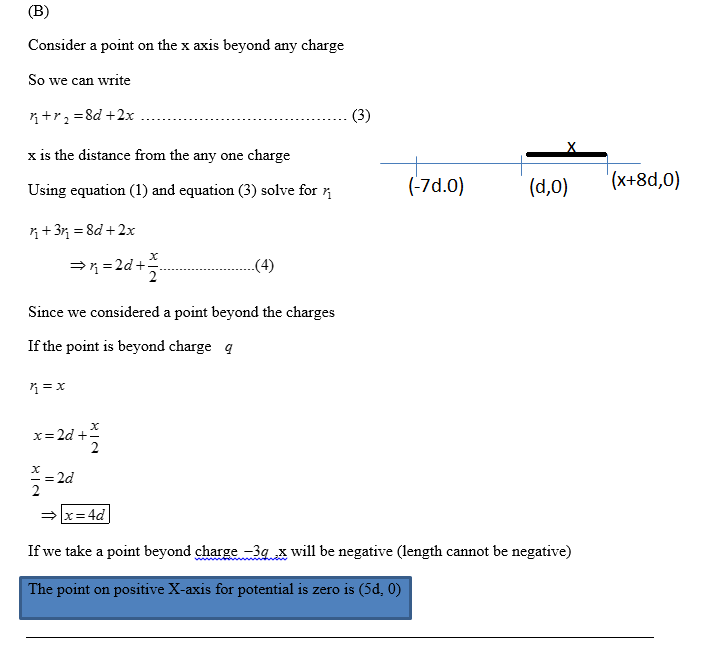

B. With zero potential at infinity, at what location on the x axis with positive coordinate is the electrostatic potential zero? Express your answer in terms of d.

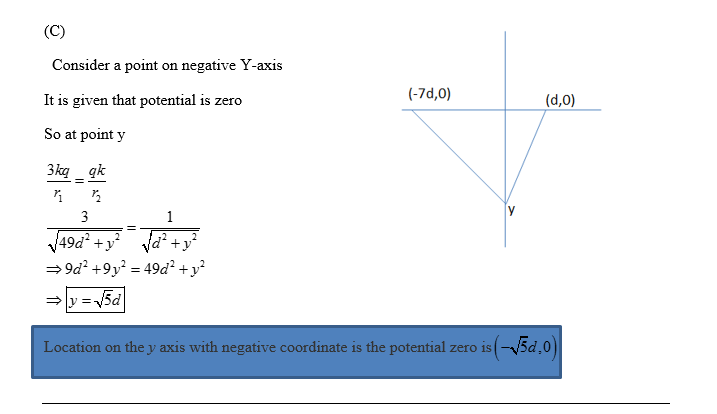

C. At what location on the y axis with negative coordinate is the potential zero? Express your answer in terms of d.

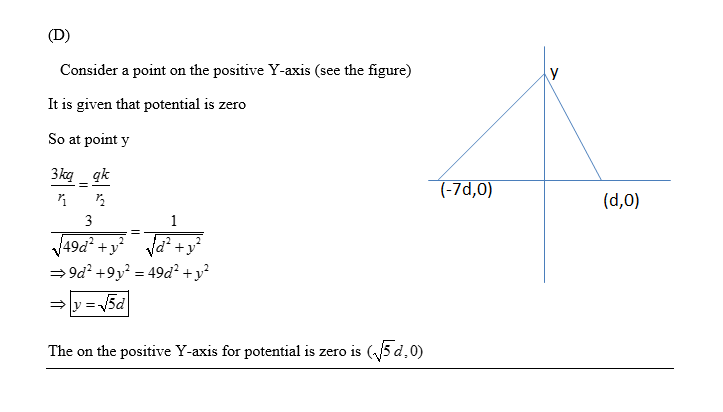

D. At what location on the y axis with positive coordinate is the potential zero? Express your answer in terms of d.

E. Are there any locations on the x or y axis where the electrostatic potential is zero?

Expert Solution

genius_generous answered 1 hour ago

A particle (charge = -15.0 µC) is located on the x- axis at the point x...

A particle (charge = -15.0 µC) is located on the x- axis at the point x = -25.0 cm, and a second particle (charge = +45.0 µC) is placed on the x- axis at x = +30.0 cm. What is the magnitude of the total electrostatic force on a third particle (charge = -3.50 µC) placed at the origin (x = 0)?

A point particle with charge q = 4.2 ?C is placed on the x axis at...

A point particle with charge q = 4.2 ?C is placed on the x axis at x = ?10 cm and a second particle of charge Q = 7.8 ?C is placed on the x axis at x = +25 cm. (a) Determine the x and y components of the electric field due to this arrangement of charges at the point (x, y) = (10, 10) (the units here are centimeters). Ex = N/C Ey = N/C (b) Determine the magnitude and...

A particle with charge 7 µC is located on the x-axis at the point −4 cm...

A particle with charge 7 µC is located on the x-axis at the point −4 cm , and a second particle with charge 4 µC is placed on the x-axis at 8 cm . What is the magnitude of the total electrostatic force on a third particle with charge −4 µC placed on the x-axis at 2 cm ? The Coulomb constant is 8.9875 × 109 N · m2 /C 2 . Answer in units of N.

A point charge q 1 = 3.50 nC is located on the x-axis at x =...

A point charge q 1 = 3.50 nC is located on the x-axis at x = 2.10 m , and a second point charge q 2 = -6.15 nC is on the y-axis at y = 1.25 m . A) What is the total electric flux due to these two point charges through a spherical surface centered at the origin and with radius r1 = 0.425 m ? B)What is the total electric flux due to these two point charges...

In the figure particle 1 of charge +q and particle 2 of charge +4q are held...

In the figure particle 1 of charge +q and particle 2 of charge +4q are held at separation L = 8.38 cm on an x axis. If particle 3 of charge q3 is to be located such that the three particles remain in place when released, what must be the (a) x and (b) y coordinates of particle 3 and (c) the ratio q3/q?

A charge +Q is located at the origin and a second charge, +6 Q , is...

A charge +Q is located at the origin and a second charge, +6 Q , is at distance d on the x-axis. Part A Where should a third charge, q, be placed, so that all three charges will be in equilibrium? Express your answer numerically as a multiple of d Part C What should be its magnitude, so that all three charges will be in equilibrium? Express your answer numerically as a multiple of Q

Two particles are fixed on an x axis. Particle 1 of charge 49.0 μC is located...

Two particles are fixed on an x axis. Particle 1 of charge 49.0 μC is located at x = -34.5 cm; particle 2 of charge Q is located at x = 33.6 cm. Particle 3 of charge magnitude 43.9 μC is released from rest on the y axis at y = 34.5 cm. What is the value of Q if the initial acceleration of particle 3 is in the positive direction of (a) the x axis and (b) the y...

Two particles are fixed on an x axis. Particle 1 of charge 57.8 μC is located...

Two particles are fixed on an x axis. Particle 1 of charge 57.8 μC is located at x = -12.7 cm; particle 2 of charge Q is located at x = 16.3 cm. Particle 3 of charge magnitude 40.6 μC is released from rest on the y axis at y = 12.7 cm. What is the value of Q if the initial acceleration of particle 3 is in the positive direction of (a) the x axis and (b) the y...

Two particles are fixed on an x axis. Particle 1 of charge 51.4 μC is located...

Two particles are fixed on an x axis. Particle 1 of charge 51.4 μC is located at x = -22.8 cm; particle 2 of charge Q is located at x = 10.8 cm. Particle 3 of charge magnitude 20.8 μC is released from rest on the y axis at y = 22.8 cm. What is the value of Q if the initial acceleration of particle 3 is in the positive direction of (a) the x axis and (b) the y...

Q.1- At time t=0.00s, a particle located at the origin in the x-y plane has a...

Q.1- At time t=0.00s, a particle located at the origin in the x-y plane has a velocity given by 3.00m/s i + 2.00m/s j. Three seconds later, the velocity is 9.00m/s i - 7.00m/s j. Assume that the particle had a constant acceleration during those three seconds. 1- What was the acceleration of the particle? 2-What is the position of the particle at t=3.00s?
