Explain why measuring acceleration of the cart while it is going up and down the ramp...

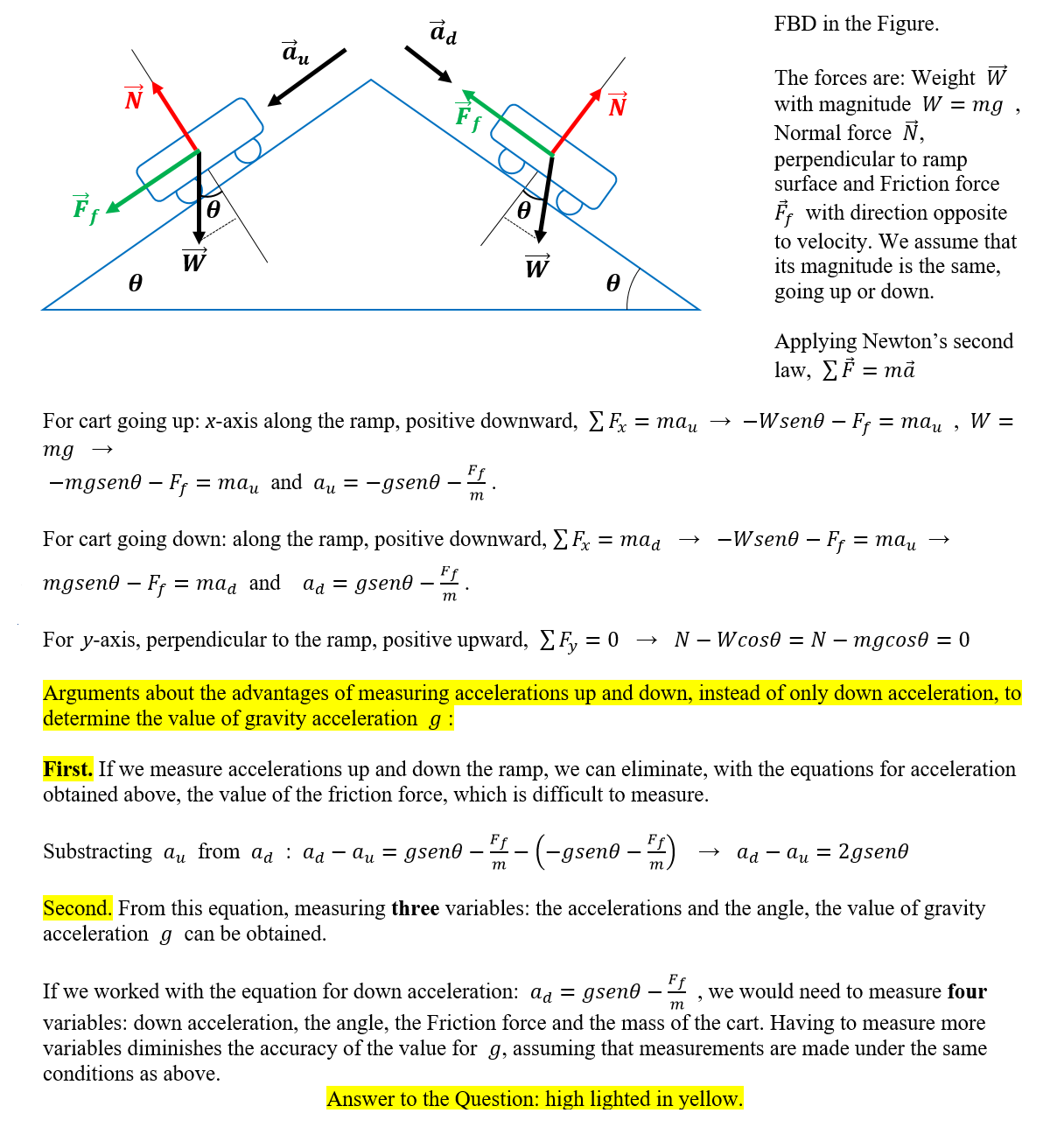

Explain why measuring acceleration of the cart while it is going up and down the ramp is a more accurate procedure to determine g than just letting it accelerate down the ramp. Hint: Make 2 sketches showing all important forces acting along the ramp during the up and then down trip. Base your argument on these sketches.

Expert Solution

genius_generous answered 1 hour ago

A cart of mass m1 = 11 kg slides down a frictionless ramp and is made...

A cart of mass m1 = 11 kg slides down a frictionless ramp and is made to collide with a second cart of mass m2 = 24 kg which then heads into a vertical loop of radius 0.25 m (a) Determine the height h at which cart #1 would need to start from to make sure that cart #2 completes the loop without leaving the track. Assume an elastic collision. (b) Find the height needed if instead the more massive...

A human (m=50kg) slides down a ramp inclined at 60 degrees. Determine the acceleration of the...

A human (m=50kg) slides down a ramp inclined at 60 degrees. Determine the acceleration of the human. Assume uk= 0.35

A 2.2 kg cart slides eastward down a frictionless ramp from a height of 1.5 m...

A 2.2 kg cart slides eastward down a frictionless ramp from a height of 1.5 m and then onto a horizontal surface where it has a head-on elastic collision with a stationary 3.0 kg cart cushioned by an ideal Hooke’s Law spring. The maximum compression of the spring during the collision is 2.0 cm. [10 marks] a) Determine the velocity of the cart 1 just before the collision. [1 mark] b) At the point of maximum compression determine the velocity...

Conservation of Momentum questions 1. A marble is going down a ramp and collides with some...

Conservation of Momentum questions 1. A marble is going down a ramp and collides with some marbles at the end of the ramp. What would happen to the momentum if the angle of the inclined ramp increased or decreased? 2. What can you conclude about the momentum of the released marble(s) just before the impact and the momentum of the marble(s) knocked away after the impact? 3. What type of collision(s) do you observe when the marble(s) going down the...

1. Ball rolling down an incline :Later you will be measuring the acceleration of the rolling...

1. Ball rolling down an incline :Later you will be measuring the acceleration of the rolling ball down the incline for several different incline angles, and we want to compare with the theoretical expected value. The best way to show this is to plot the acceleration on the vertical axis, and the value of sin(θ) on the horizontal axis, as shown on the plot below. Draw in the expected theoretical variation of the acceleration on this plot. 2. A 0.200...

An 8-ton truck is initially going up a 20° ramp with a speed of 90 km/hr....

An 8-ton truck is initially going up a 20° ramp with a speed of 90 km/hr. The truck, then, brakes reaching a speed of 36 km/hr after 3 seconds. Assuming constant deceleration determine (a) the magnitude of the braking force, (b) the additional time required for the truck to stop. Neglect air resistance and rolling resistance

The stock market was rallying and going up during early May while bad news for the...

The stock market was rallying and going up during early May while bad news for the economic macro indicators were pouring in. Isn't that surprising? Can you explain this?

A car is going up a hill. While doing so, its speed is decreasing. What forms...

A car is going up a hill. While doing so, its speed is decreasing. What forms of energy does it have? Select all forms that are present. (It's gas tank is not empty). A) kinetic energy B) chemical potential energy C) thermal energy D) gravitational potential energy 2. For the same car, while going up the hill with decreasing speed, which forms of energy are increasing in amount? A) kinetic energy B) chemical potential energy C) gravitational potential energy D)...

Murder rates are going up in some major cities , while New York City and Oakland...

Murder rates are going up in some major cities , while New York City and Oakland are dropping. To what attribute the rise in violent crime and reason why others are falling?

Why companies choose intermeadite entry mode while going into foreign markets

Question
