Question

In: Physics

An object is thrown straight up into the air. The object leaves the person’s hand with...

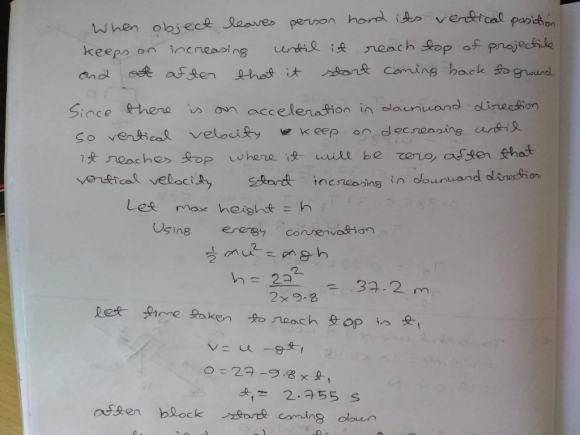

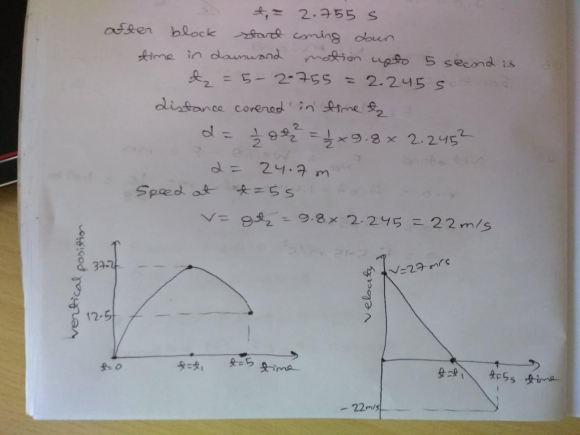

An object is thrown straight up into the air. The object leaves the person’s hand with an upward velocity of magnitude 27 m/s. Assume that the object is in free fall, i.e., neglect air resistance. Draw a motion diagram and graphs (two graphs: one for vertical position vs. time, and one for vertical velocity vs. time) from the time when the object leaves the person’s hand to 5.0 seconds later. Include all the information on the graph that you can determine about the object’s motion, such as its position and velocity at 5.0 seconds. Assume that the person does not catch the object or interfere with it during the 5.0 seconds time interval.

(DETAILED EXPLANATION AND DRAWINGS/GRAPHS PLEASE)

Solutions

Expert Solution


genius_generous answered 2 days ago
