Question

In: Physics

A 3.10-N metal bar, 2.00 m long and having a resistance of 10.0 Ω, rests horizontally...

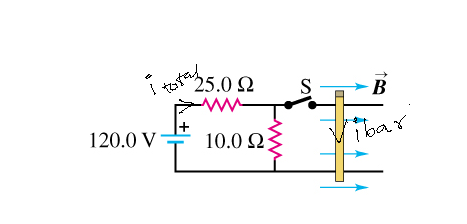

A 3.10-N metal bar, 2.00 m long and having a resistance of 10.0 Ω, rests horizontally on conducting wires connecting it to the circuit shown in the figure (Figure 1) . The bar is in a uniform, horizontal, 1.40-T magnetic field and is not attached to the wires in the circuit.

What is the magnitude of the acceleration of the bar just after the switch S is closed?

file:///Users/barkleydiann/Desktop/YF-27-68.jpg

Solutions

Expert Solution

10 ohm resistance and 10 ohm bar are in parallel and their equivalent resistance is given as

R' = 10 x 10 / (10 + 10) = 5 ohm

R' and 25 ohm are in series and total resistance of the circuit is given as

Rtotal = R' + 25 = 5 + 25 = 30 ohm

total current coming from the battery is given as

i = V/Rtotal = 120/30 = 4 A

Voltage across the bar is given as

Vbar = V - Voltage across 25 ohm

Vbar = 120 - 4 x 25

Vbar = 20 volts

ibar Rbar = 20                    ibar = current flowing in bar    , Rbar = resistance of bar

ibar = 20 / 10

ibar = 2 A

using right hand rule , magnetic force Fb comes out to be upward and hence the bar is lifted up

force equation for the motion of bar is given as

Fb - Fg = ma                             fg = force of gravity

ibar B L - mg = ma

2 (1.4) (2) - 3.10 = (3.10/9.8) a

a = 7.9 m/s2
