Question

In: Operations Management

Review Technology Plug-In 3 Problem Solving Using Excel 2016. Complete exercise 1. Production Errors Established in...

Review Technology Plug-In 3 Problem Solving Using Excel 2016. Complete exercise 1. Production Errors
Established in 2002, t-shirts.com has rapidly become the place to find, order, and save on T-shirts. One huge selling factor is that the company manufactures its own T-shirts. However, the quality manager for the production plant, Kasey Harnish, has noticed an unacceptable number of defective T-shirts being produced. You have been hired to assist Kasey in understanding where the problems are concentrated. He suggests using a PivotTable to perform an analysis and has provided you with a data file, T3_TshirtProduction_Data.xls.

The following is a brief definition of the information within the data file:
A. Batch: A unique number that identifies each batch or group of products produced.
B. Product: A unique number that identifies each product.
C. Machine: A unique number that identifies each machine on which products are produced.
D. Employee: A unique number that identifies each employee producing products.
E. Batch Size: The number of products produced in a given batch.
F. Num Defect: The number of defective products produced in a given batch.

Make fifteen pivottables as follows.

1. Four one-factor pivottables that investigate the defective rates. Use Product, Machine, Employee, and Batch Size as row fields and Num Defect as the value field to make four pivottables.

2. Six two-factor pivottables. Use Product x Machine, Product x Employee, Product x Batch Size, Machine x Employee, Machine x Batch Size, Employee x Batch Size as row and column fields respectively. For example, when you use Product x Machine factors, you put Product as the row field and Machine as the column field. Still, Num Defect is the value field.

3. Four three-factor pivottables. Use Product x Machine x Employee, Product x Machine x Batch Size, Product x Employee x Batch Size, Machine x Employee x Batch Size as row and column fields respectively. For example, when you use Product x Machine x Employee factors, you put Product and Machine as the row fields and Machine as the column field. Still, Num Defect is the value field.

4. One four-factor pivottable. Use Product x Machine x Employee x Batch size as row and column fields. The first three factors can be the row fields, and the last one is the column field. Still, Num Defect is the value field.

Here is the data for this question

BATCH PRODUCT MACHINE EMPLOYEE BATCH SIZE NUM DEFECTIVE
1 10 5 3333 500 16
2 20 7 5555 10000 10
3 30 6 2222 5000 13
4 30 8 4444 1000 12
5 20 6 3333 1000 5
6 20 7 1111 5000 9
7 30 8 2222 10000 20
8 10 5 3333 10000 14
9 10 6 1111 5000 17
10 30 7 5555 500 19
11 20 5 3333 500 4
12 30 7 4444 1000 7
13 10 8 2222 5000 5
14 30 6 3333 10000 8
15 30 7 1111 10000 21
16 10 5 1111 5000 15
17 10 6 1111 500 6
18 10 8 4444 500 9
19 10 7 3333 500 0
20 20 6 2222 1000 15
21 10 7 5555 10000 12
22 20 8 3333 10000 10
23 30 7 4444 10000 8
24 30 8 2222 5000 12
25 20 7 5555 1000 6
26 20 6 1111 1000 8
27 20 6 2222 5000 5
28 30 7 3333 10000 18
29 30 8 4444 500 15
30 30 5 5555 500 4
31 10 6 4444 10000 13
32 10 5 5555 500 5
33 20 7 3333 5000 18
34 30 5 2222 1000 11
35 30 8 4444 1000 23
36 20 6 1111 5000 14
37 10 7 3333 500 3
38 30 8 2222 10000 9
39 10 6 4444 5000 1
40 10 7 2222 1000 15
41 20 5 2222 1000 19
42 20 6 2222 5000 3
43 30 8 2222 10000 0
44 20 6 3333 500 12
45 30 7 1111 500 6
46 20 8 4444 10000 8
47 20 7 2222 500 5
48 30 5 5555 5000 18
49 30 8 4444 1000 15
50 10 6 5555 1000 4
51 10 7 1111 5000 13
52 10 5 2222 500 5
53 10 6 3333 10000 18
54 20 7 4444 500 11
55 10 7 5555 5000 23
56 20 6 2222 1000 14
57 30 5 1111 1000 3
58 30 7 3333 5000 9
59 20 6 2222 500 17
60 20 7 4444 10000 19
61 20 8 3333 5000 4
62 30 8 5555 1000 7
63 30 6 4444 1000 5
64 30 7 1111 5000 8
65 10 5 2222 10000 21
66 10 6 1111 500 15
67 20 7 2222 500 6
68 30 6 3333 10000 9
69 20 7 4444 500 0
70 10 8 2222 10000 15
71 30 6 5555 5000 12
72 30 7 4444 1000 10
73 30 5 5555 500 8
74 20 7 3333 500 12
75 10 6 1111 10000 6
76 10 7 5555 5000 8

Solutions

Expert Solution

*****Please please please LIKE THIS ANSWER, so that I can get a small benefit, Please*****

Before putting the pivot we will insert a column called "Defective %" in which we calculate the percentage of

defectives given by

Defective % = Num Defective/Batch Size

Pressing the symbol "%" in the Home tab of the excel sheet gives percentage of the defective.

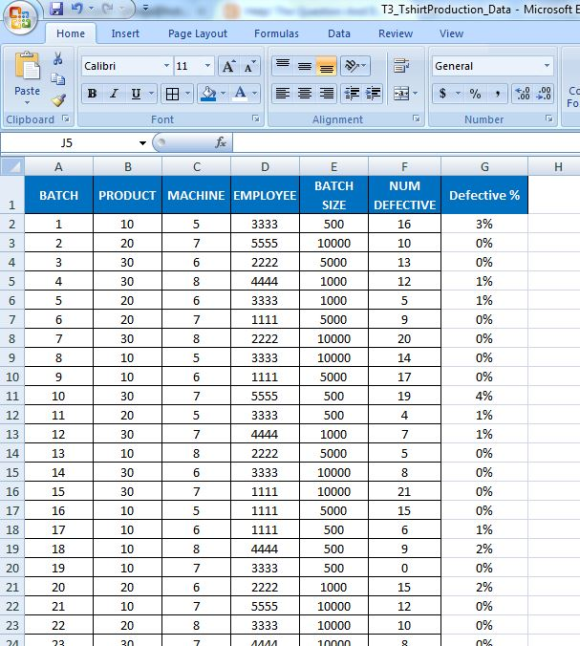

The excel sheet thus prepared is as shown in the snap shot below:

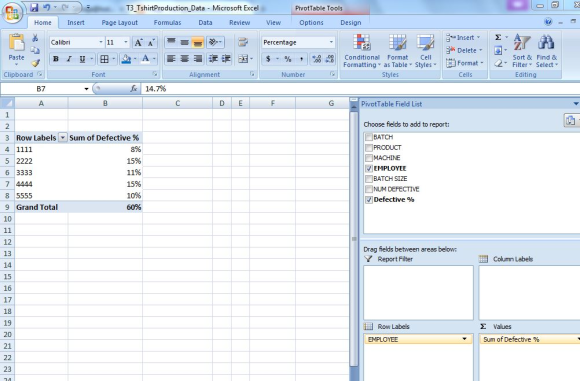

Now we prepare the piviot table by selecting the data and using "pivot table" option in the insert tab

The snapshot of the pivot looks like this:

Analysis of the data based on defective %

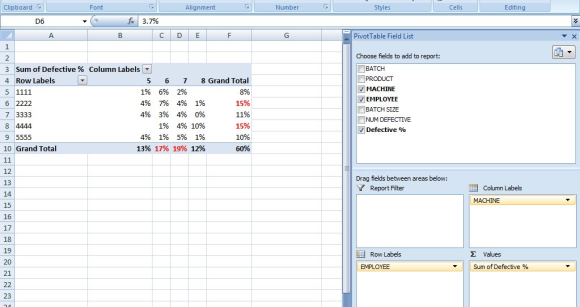

Now, coming to the analysis part, first drag the "Employee" field to the Row Labels and "Machine" field to the Column Labels in the pivot table. From the table we can infer the following:

(1) Employee with id's 2222 and 4444 are comparitively producing more defective products (15% as highlighted in Red) than others.

(2) From the table we can see that the Machine No 7 is producing more number of defectives followed by machine number 6 (namely 19% and 17% as highlighted in red).

The snapshot of the above is given below:

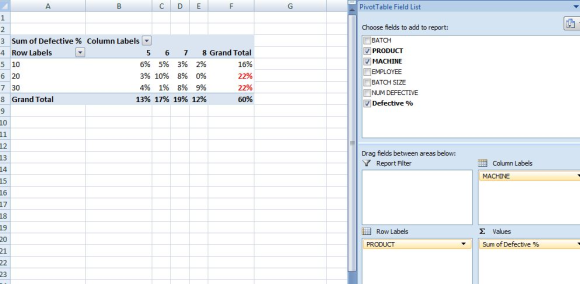

Now remove the "Employee" field in the the Row lable and drag the Product field. We can see that there are maximum number of defectives in the Product with codes 20 and 30 (22% each as highlighted in red)

The snapshot is as shown below:

Hence the analysis of the defectives from the data can be summarized as follows:

(1) Employees with Id's 2222 and 4444 are least efficient.

(2) Machine No 7 and 6 are more inefficient compared to the other two

(3) More defectives are seen in the product with codes 20 and 30

ALTERNATIVE ANSWER:

Introduce a new column % DEFECTIVE where % DEFECTIVE = NUM DEFECTIVE / BATCH SIZE. This would be the right measure to figure out what is not performing in the right way.

Creating a PIVOT table:

In Excel, to create pivot table, click on the insert tab and then click pivot table. In the select table / range, select the entire data.

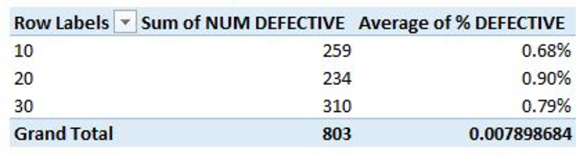

Table 1: PRODUCT, NUM DEFECTIVE and % DEFECTIVE

Choose PRODUCT in row labels, NUM DEFECTIVE and % DEFECTIVE in sum values. Make sure NUM DEFECTIVE has an attribute of SUM and % DEFECTIVE has an attribute of average. The default attribut is sum. To change it, click on the drop down arrow in % DEFECTIVE and choose value field settings -> Average

We find that Product 20 and Product 30 have higher % of defects than the average. Also Product 30 is somewhat close to the average but product 20 has a much higher % of defects. Hence we will identify Product 20 as the one which has to be improved.

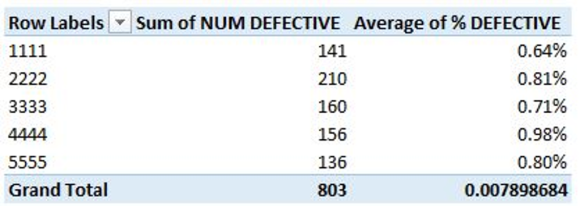

Table 2: EMPLOYEE, NUM DEFECTIVE and % DEFECTIVE

Choose EMPLOYEE in row labels, NUM DEFECTIVE and % DEFECTIVE in sum values. Make sure NUM DEFECTIVE has an attribute of SUM and % DEFECTIVE has an attribute of average.

Employees 2222, 4444 and 5555 have much more higher % defects than the average. In particular employee 4444 has produced the highest % of defectives. The training provided to employee 4444 has to be reviewed and necessary training has to be imparted to improve his productivity

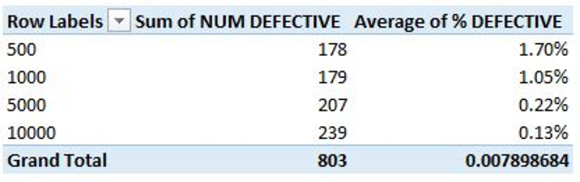

Table 3: BATCHSIZE, NUM DEFECTIVE and % DEFECTIVE

Choose BATCHSIZE in row labels, NUM DEFECTIVE and % DEFECTIVE in sum values. Make sure NUM DEFECTIVE has an attribute of SUM and % DEFECTIVE has an attribute of average.

We find a huge difference in batchsize to % defective. The lower the batch size is the higher is the % defective. We can conclude that it is advisable to produce in larger batches to have lesser number of defectives.

The conclusions are as below

1. Product 20 requires improvement to reduce the num of defectives

2. Employee 4444 needs training to improve his productivity and reduce defective

3. Higher the batch size lesser the number of defectives

*****Please please please LIKE THIS ANSWER, so that I can get a small benefit, Please*****
