A disk rolls up an inclined plane, reaches point A, stops there momentarily, and then rolls...

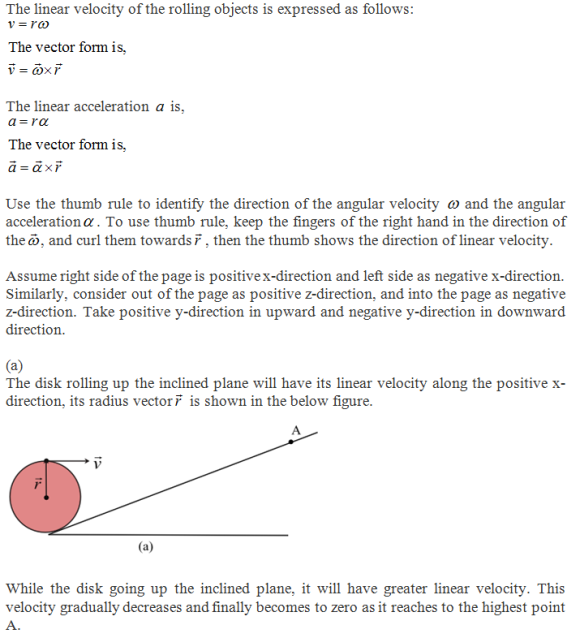

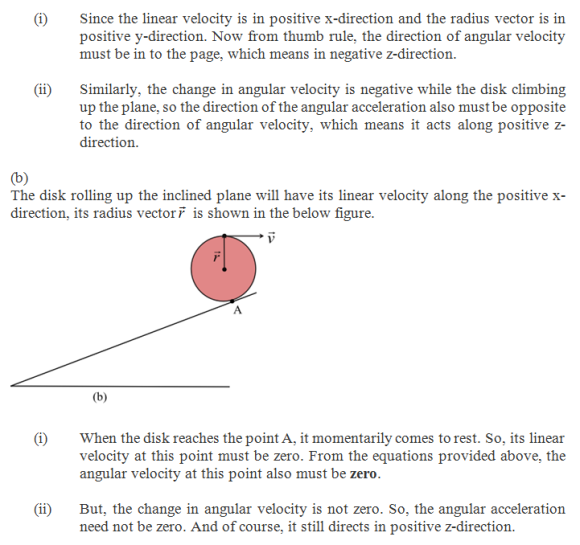

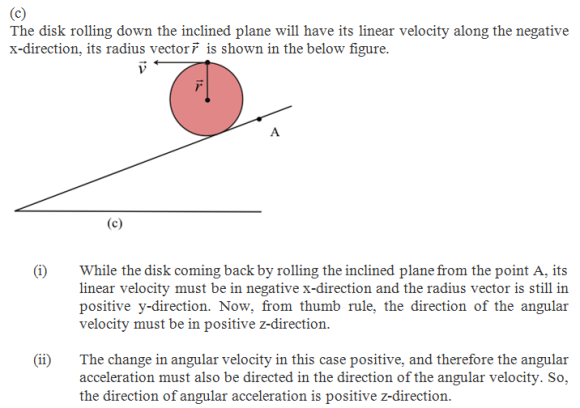

A disk rolls up an inclined plane, reaches point A, stops there momentarily, and then rolls down the inclined plane. Use the x-y coordinate system to determine the direction of the angular velocity and the angular acceleration in each part of the motion as given below. If either one is zero, say so. (a) when the disk is going up the incline. (i) angular velocity? (ii) angular acceleration? (b) at point at the top of the incline (point A) when the disk stops momentarily. (i) angular velocity? (ii) angular acceleration? (c) when the disk is rolling down the incline. (i) angular velocity? (ii) angular acceleration? (*Options: +x, -x, +y, -y, +z, -z, and 0)

Expert Solution

genius_generous answered 2 months ago

A massive cylinder rolls without sliding up an inclined plane with an angle of 30º. The...

A massive cylinder rolls without sliding up an inclined plane with an angle of 30º. The cylinder's radius is 3.14cm and the mass is 2.71kg. What are gravity (G), normal force (N) and friction force (R) on the cylinder? G=23N, N=23N, R=3,8N G=27N, N=23N, R=3,8N G=27N, N=23N, R=5,3N G=23N, N=23N, R=4,4N G=27N, N=27N, R=4,4N G=27N, N=27N, R=5,3N G=23N, N=23N, R=5,3N G=27N, N=27N, R=3,8N G=27N, N=23N, R=4,4N A carousel has the shape of a circular disc with radius 0.9m and mass...

A) A solid disk rolls down an incline plane. The disk has a mass of 88...

A) A solid disk rolls down an incline plane. The disk has a mass of 88 grams, a radius of 0.15 meters, and starts at a height of 4 meters above the bottom of the ramp. What is the magnitude of the velocity of the disk at the bottom of the ramp, in m/s? B) A spring-loaded launcher has a spring constant of 230 N/m. The spring is compressed 4.5 cm. A 25 gram ball is launched exactly horizontally from...

On a friction-free inclined plane, a block glides up the inclined plane (eventually it will stop...

On a friction-free inclined plane, a block glides up the inclined plane (eventually it will stop and slide down again, but in this task we look at it as it glides upwards). Which option is right: Gravity does a positive job. The normal force does a positive job. Gravity does a negative job. The normal force does a positive job. Gravity does zero work. Normal force performs zero work. Gravity does zero work. The normal force does a positive job....

A 3.4- cm-radius ball rolls down an inclined plane from rest at the top. The angular...

A 3.4- cm-radius ball rolls down an inclined plane from rest at the top. The angular acceleration of the rolling ball about its center is 275 rad/s2, and its angular speed at the bottom is 58.4 rad/s. How long is the plane?

A 4.3- cm-radius ball rolls down an inclined plane from rest at the top. The angular...

A 4.3- cm-radius ball rolls down an inclined plane from rest at the top. The angular acceleration of the rolling ball about its center is 245 rad/s2, and its angular speed at the bottom is 44.4 rad/s. How long is the plane?

A 0.200 kg ball starting from rest rolls down an inclined plane with θ=30°. a)Find the...

A 0.200 kg ball starting from rest rolls down an inclined plane with θ=30°. a)Find the acceleration of the ball, and the magnitude of normal force exerted by the plane. b) If it starts from rest a height h = 30.0 cm above its position at the bottom of the incline (measured between the center of the ball at each position), what is the speed of the ball vf at that bottom point, and how long did it take to...

A 2.9 kg block is projected at 5.4 m/s up a plane that is inclined at...

A 2.9 kg block is projected at 5.4 m/s up a plane that is inclined at 40∘ with the horizontal a How far up along the plane does the block go if the coefficient of kinetic fraction between the block and the plane is 0.375? b..How far up the plane does the block go if If the block then slides back down the plane, what is its speed when it returns to its original projection point?the plane is frictionless? Give...

A basketball rolls up a distance d on an incline plane with coefficient µk and θ...

A basketball rolls up a distance d on an incline plane with coefficient µk and θ from the horizontal with a magnitude of velocity v. If the basketball stops at the top of the incline, what is the magnitude of the velocity? Two people are carrying a uniform wooden board that is 3.00 m long and weighs 160 N. If one person applies an upward force equal to 60 N at one end, at what point does the other person...

The initial speed of a 2.17-kg box traveling up a plane inclined 37° to the horizontal...

The initial speed of a 2.17-kg box traveling up a plane inclined 37° to the horizontal is 3.23 m/s. The coefficient of kinetic friction between the box and the plane is 0.30. (a) How far along the incline does the box travel before coming to a stop? m (b) What is its speed when it has traveled half the distance found in Part (a)? m/s

Classical Mechanics: A block of wood is projected up an inclined plane with initial speed V0....

Classical Mechanics: A block of wood is projected up an inclined plane with initial speed V0. If the inclination of the plane is θ, and the coefficient of the sliding friction is μk, a) Draw a force diagram and a free body diagram. b) Choose the x and y coordinate system, and mark it on the free body diagram. c) Apply Newton's Second Law in the y-direction. d) Apply Newton's Second Law in the x-direction. e) Use parts c) and...
