Question

In: Physics

A small, square loop carries a 48 A current. The on-axis magnetic field strength 42 cm...

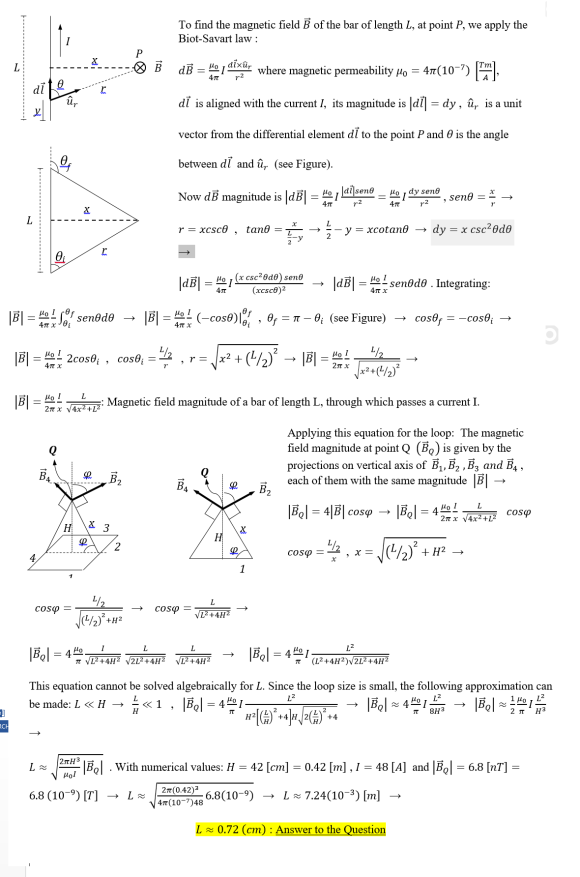

A small, square loop carries a 48 A current. The on-axis magnetic field strength 42 cm from the loop is 6.8 nT .

What is the edge length of the square?

Thanks in advance.

Solutions

Expert Solution


Related Solutions

A loop of wire carries a current. The resulting magnetic field __________. points toward the loop...
A loop of wire carries a current. The resulting magnetic field __________. points toward the loop at all points points away from the loop at all points is similar to that of a bar magnet in the plane of the loop is similar to that of a bar magnet perpendicular to the plane of the loop
At what distance on the axis of a current loop is the magnetic field half the...
At what distance on the axis of a current loop is the magnetic field half the strength of the field at the center of the loop? Give your answer as a multiple of R. Express your answer in terms of R using two significant figures.
A square current loop 5.5 cm on each side carries a 470 mA current. The loop...
A square current loop 5.5 cm on each side carries a 470 mA current. The loop is in a 0.70 T uniform magnetic field. The axis of the loop, perpendicular to the plane of the loop, is 30 degrees away from the field direction. What is the magnitude of the torque on the current loop? 2 sig fig.
A single-turn square loop of wire, 2.00 cm on each edge, carries a clockwise current of...
A single-turn square loop of wire, 2.00 cm on each edge, carries a clockwise current of 0.160 A. The loop is inside a solenoid, with the plane of the loop perpendicular to the magnetic field of the solenoid. The solenoid has 30.0 turns/cm and carries a clockwise current of 15.0 A. (1) Find the force on each side of the loop. magnitude:____________________uN direction: a) the force is zero b) directed towards the center c) directed away from the center (2)...
A square loop of wire with sides of length 34 cm is in a uniform magnetic...
A square loop of wire with sides of length 34 cm is in a uniform magnetic field perpendicular to its area. Part A If the field's strength is initially 110 mT and it decays to zero in 0.011 s , what is the magnitude of the average emf induced in the loop? Part B What would be the average emf if the sides of the loop were only 17 cm ? Express your answer using two significant figures.
Find the magnetic field on the z axis at z +8.0 cm if (a) the currents...
Find the magnetic field on the z axis at z +8.0 cm if (a) the currents are both in the -x direction and (b) the current in the wire at y -6.0 cm is in the -x direction and the current in the wire at y +6.0 cm is in the +x direction.
A circular conducting loop with radius 2.70 cm is placed in a uniform magnetic field of...
A circular conducting loop with radius 2.70 cm is placed in a uniform magnetic field of 0.680 T with the plane of the loop perpendicular to the magnetic field, as shown. The loop is rotated 180° about the axis in 0.242 s. 1.What is the direction of the induced current flow as the loop begins to rotate? 2.What is the average induced emf in the loop during this rotation?
A circular wire loop of radius 1.4 cm is placed in a magnetic field of magnitude...
A circular wire loop of radius 1.4 cm is placed in a magnetic field of magnitude 2.3 T. If the magnetic field goes to zero in a time of 5 s, what is the magnitude of the current induced in the loop? The wire has a diameter of 2 mm, and the resistivity of copper is 1.7 x 10-8 Ohm-m.
A square coil of wire of side 3.00 cm is placed in a uniform magnetic field...
A square coil of wire of side 3.00 cm is placed in a uniform magnetic field of magnitude 1.75 T directed into the page as in the figure shown below. The coil has 38.0 turns and a resistance of 0.780 Ω. If the coil is rotated through an angle of 90.0° about the horizontal axis shown in 0.335 s, find the following. (a) the magnitude of the average emf induced in the coil during this rotation (b) the average current...
A wire 80 cm long carries 11 A of current. From this wire, a loop of...
A wire 80 cm long carries 11 A of current. From this wire, a loop of 90-turns is made and placed in a magnetic field of 6.50 Tat an angle of 35˚. In first experiment, a square loop is formed and in the second experiment, a circular loop is formed with same number of turns. Calculate the torque in each loop. Which loop produces more torque-the circular loop or the square loop? What is the reason for this change of...
