Question
In: Physics

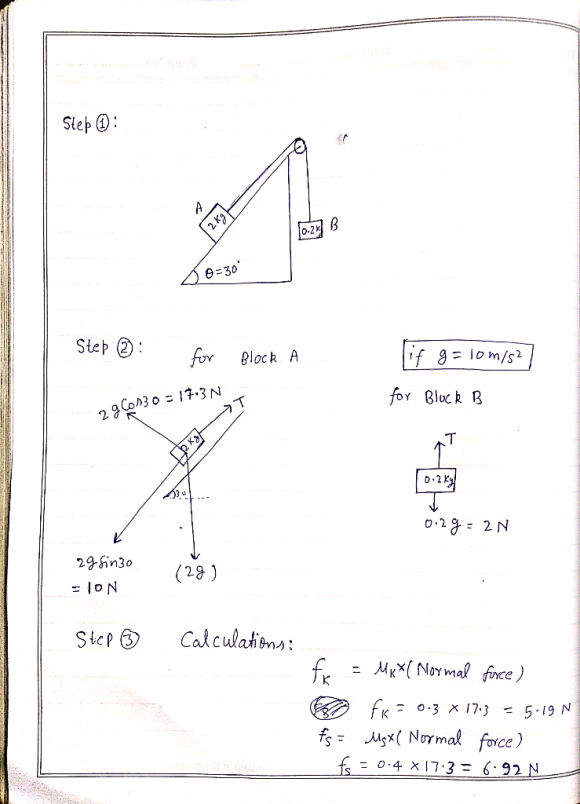

A block of mass m1 = 2kg is placed on a 30 degree incline. The block...
- A block of mass m1 = 2kg is placed on a 30 degree
incline. The block is attached to a string that passes over a
pulley at the top of the incline. vertically from a string that
passes over a pulley. A mass m2 = 0.2kg is hanging from
the other end of the string. If the coefficients of static and
kinetic friction are us = 0.4 and uk = 0.3,
- Will the system accelerate if it’s initially at rest? Justify your answer with physics!

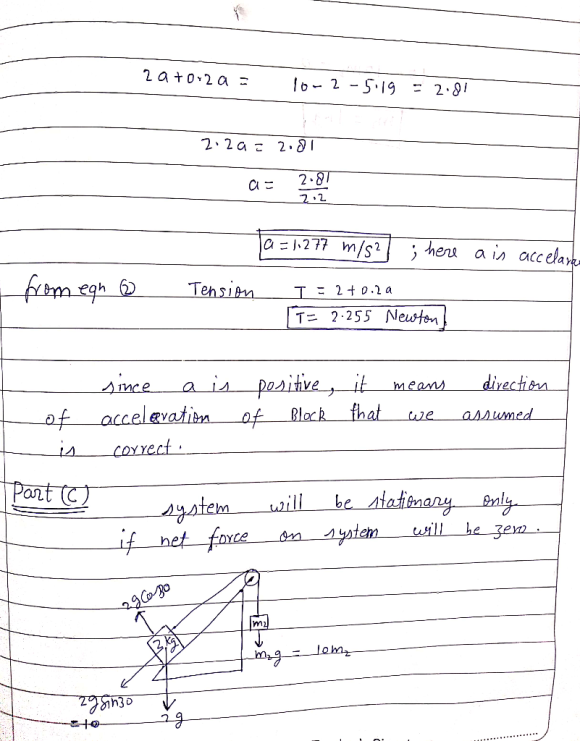

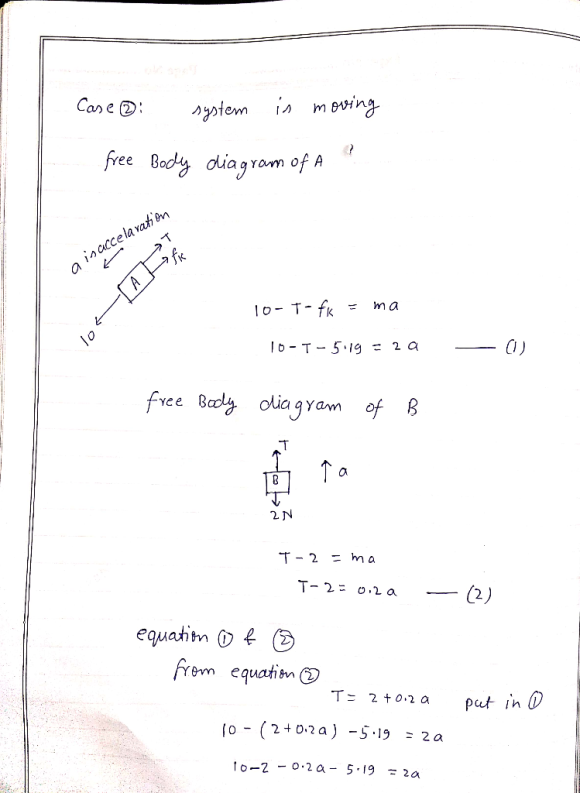

- If it does accelerate, what is the acceleration? In which direction is this acceleration?

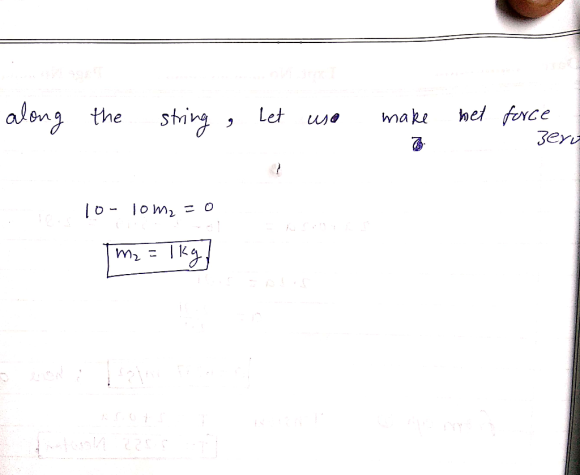

- What is the value of m2 that will cause the system to be stationary if friction is negligble?
Solutions
