Question

In: Physics

What wavelength monochromatic source in the visible region (390 to 710 nm) can be used to...

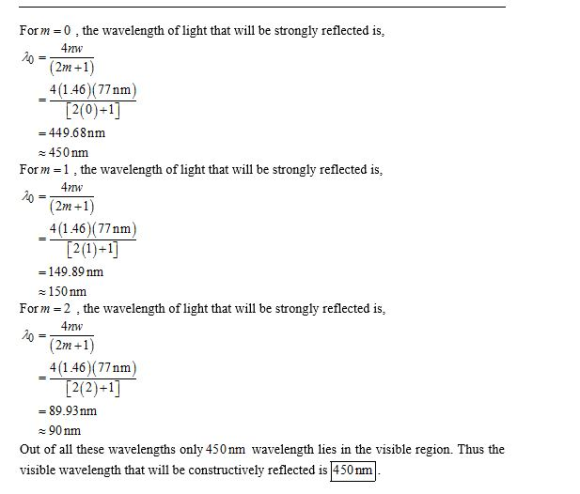

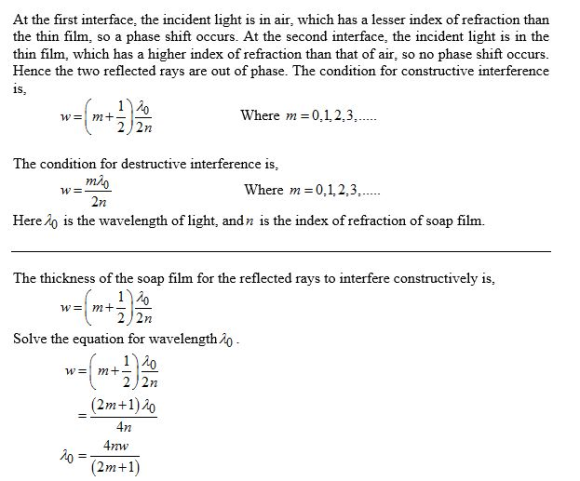

What wavelength monochromatic source in the visible region (390 to 710 nm) can be used to constructively reflect off a soap film (n = 1.46) if the film is 77 nm thick?

Solutions

Expert Solution



Related Solutions

What visible wavelengths of light are strongly reflected from a 390-nm-thick soap bubble?
A soap bubble is essentially a thin film of water surrounded by air. The colors you see in soap bubbles are produced by interference. What visible wavelengths of light are strongly reflected from a 390-nm-thick soap bubble? What color would such a soap bubble appear to be?
2. A monochromatic light with wavelength 540.0 nm strikes a pair of narrow slits. An interference...
2. A monochromatic light with wavelength 540.0 nm strikes a pair of narrow slits. An interference pattern is produced on a screen kept 4.00 m away. The first dark fringe is formed at a distance 5.40 mm away from the center. (a) What is the separation between the two slits? [5] (b) What is the distance on the screen from the center of the interference pattern to the 3rd minimum (m = 2)? [5] (c) What is the shortest distance...
The magnetic field in a plane monochromatic electromagnetic wave with wavelength λ = 684 nm, propagating...
The magnetic field in a plane monochromatic electromagnetic wave with wavelength λ = 684 nm, propagating in a vacuum in the z-direction is described by B⃗ =(B1sin(kz−ωt))(i^+j^)B→=(B1sin⁡(kz−ωt))(i^+j^) where B1 = 5.3 X 10-6 T, and i-hat and j-hat are the unit vectors in the +x and +y directions, respectively. 1) What is k, the wavenumber of this wave? m-1 2) What is zmax, the distance along the positive z-axis to the position where the magnitude of the magnetic field is...
In Young’s experiment, monochromatic light of wavelength 600 nm shines on two slits separated by 0.3...
In Young’s experiment, monochromatic light of wavelength 600 nm shines on two slits separated by 0.3 mm, producing an interference pattern on a screen that is 2.0 m away. You put a thin sheet of glass (n = 1.5) at the top slit and you observe a dark fringe the central location of the screen. Furthermore, the fourth bright spot on both sides of the central location is missing. (a) Sketch the resulting interference pattern. Precisely state the spacing between...
Part A) When monochromatic UV light of wavelength 347 nm is sent through a diffraction grating,...
Part A) When monochromatic UV light of wavelength 347 nm is sent through a diffraction grating, the first order maximum occurs at 17.9o. How many lines per cm are in the grating? Part B) Through what voltage should an electron be accelerated from rest so that it would produce the same interference pattern as this light. Please answer both parts and show work.
An photon with a wavelength in the X-ray region of 0.69 nm undergoes Compton scattering by...
An photon with a wavelength in the X-ray region of 0.69 nm undergoes Compton scattering by colliding with a free electron. 1) Assume the photon just barely grases the electron, so that the deflect angle, θ, can be considered zero. 1)What is the wavelength of the outgoing photon after the collision? λ' = 2)What the energy of the outgoing photon? Eγ = 3)Now assume the photon deflects off at a small angle of 49o. What is the wavelength of the...
An interference pattern is produced by light with a wavelength 600 nm from a distant source...
An interference pattern is produced by light with a wavelength 600 nm from a distant source incident on two identical parallel slits separated by a distance (between centers) of 0.560 mm . If the slits are very narrow, what would be the angular position of the first-order, two-slit, interference maxima? What would be the angular position of the second-order, two-slit, interference maxima in this case? Let the slits have a width 0.280 mm . In terms of the intensity I0...
What is the wavelength of the maximum absorbance of the nanoparticles? To what colour of visible...
What is the wavelength of the maximum absorbance of the nanoparticles? To what colour of visible light does this correspond? Estimate a size for the gold nanoparticles formed.
Blue light of wavelength 470 nm is used to illuminate a pair of narrow slits that...
Blue light of wavelength 470 nm is used to illuminate a pair of narrow slits that are 0.020 mm apart and 1.60 m from a screen. (a) What is the angular position of the second-order minimum (dark spot)? (b) What is the distance on the screen between the central maximum and the second-order minimum? (c) The reason there is a dark spot at this location on the screen is because light from one slit has to travel further than light...
In a Young's double-slit experiment the wavelength of light used is 462 nm (in vacuum), and...
In a Young's double-slit experiment the wavelength of light used is 462 nm (in vacuum), and the separation between the slits is 2.1 × 10-6 m. Determine the angle that locates (a) the dark fringe for which m = 0, (b) the bright fringe for which m = 1, (c) the dark fringe for which m = 1, and (d) the bright fringe for which m = 2.
