Question

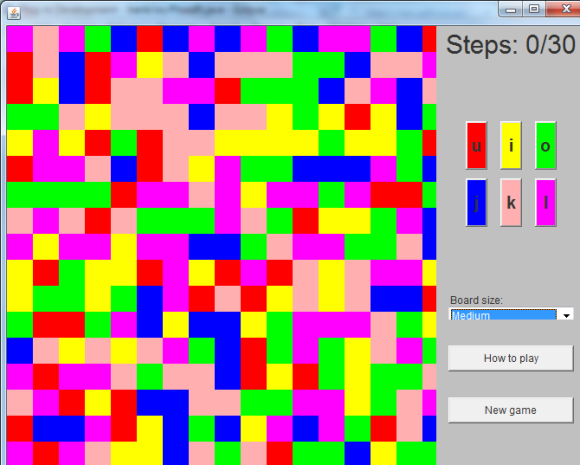

We are going to create our own implementation of the game “FloodIt”. Several versions of this game can be found, for example a version for android, on which this description is based, here. Several Web versions are available

In this game, a square board is filled with dots, each having one of six possible colours. The players initially “captures” the top left dot. The player keeps choosing one of the six colours. Each time a colour is chosen, the dots that have already been captured turn into that colour. Each dot that is a neighbour¹ of a captured dot, and whose colour matches the newly selected colour becomes itself captured. The game ends once the entire board is captured (the board is “flooded” because all the dots have the same colour). As the game can only progress (a captured dot cannot be lost), the issue of the game is certain. The goal is thus to flood the board in as few steps as possible.

https://drive.google.com/file/d/0B4hEHn5tHkyxYzktNUYxbUt4Qkk/view?usp=sharing

Answer 1

// FloodIt.java

import java.awt.*;
import java.applet.*;
import java.awt.event.*;

import javax.swing.*;
import java.util.*;

public class FloodIt extends JFrame implements ActionListener, ItemListener {


   private static final long serialVersionUID = 1L;

   // instance variables
   BoardCanvas b;            // canvas showing the actual board
   Button howToPlay, newGame; // buttons for instructions and new game
   Button red, yellow, green, // buttons for choosing the color
       blue, pink, magenta;
   Label step;            // label to show the current number of steps
   Choice board;           // choice panel for board size
   int stepCounter = 0;       // keeps track of the number of steps taken
   int boardSize = 0;       // board size set at small


   public static void main(String[] args) {
   SwingUtilities.invokeLater(new Runnable(){
   @Override
   public void run() {
   new FloodIt();
   }
   });
   }

   // constructor
   public FloodIt() {
       init();
   }

   // initializes the board
   public void init () {
       this.setSize(685,550);
       setLayout(new BorderLayout());
       add("East", sideBar());
       b = new BoardCanvas(this);
       add("Center", b);

       setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
   setVisible(true);
   }

   // creates empty labels for layout design
   protected Label emptyLabel() {
       Label emptyLabel = new Label();
       return emptyLabel;
   }

   // creates the side bar panel
   protected Panel sideBar() {
       Panel sideBar = new Panel();
       sideBar.setLayout(new GridLayout(2,1));
       sideBar.setBackground(Color.LIGHT_GRAY);
       sideBar.add(top());
       sideBar.add(bottom());

       return sideBar;
   }

   // creates the top part of the side bar
   protected Panel top() {
       Panel top = new Panel();
       top.setLayout(new BorderLayout(20,0));
       step = new Label("Steps: "+ stepCounter + "/22");
       step.setFont(new Font("Arial", Font.PLAIN, 30));
       step.setAlignment(Label.CENTER);
       top.add("North",step);
       top.add("East", emptyLabel());
       top.add("South", emptyLabel());
       top.add("West", emptyLabel());
       top.add("Center", colorButtons());
       return top;
   }

   // creates the color button panel for users to press
   protected Panel colorButtons() {
       Panel colorButtons = new Panel();
       colorButtons.setLayout(new GridLayout(3,3,15,10));
       red = CButton(Color.red, "u");
       yellow = CButton(Color.yellow, "i");
       green = CButton(Color.green, "o");
       blue = CButton(Color.blue, "j");
       pink = CButton(Color.pink, "k");
       magenta = CButton(Color.magenta, "l");
       colorButtons.add(emptyLabel());
       colorButtons.add(emptyLabel());
       colorButtons.add(emptyLabel());
       colorButtons.add(red);
       colorButtons.add(yellow);
       colorButtons.add(green);
       colorButtons.add(blue);
       colorButtons.add(pink);
       colorButtons.add(magenta);
       return colorButtons;
   }

   // helper method for creating a color button
   protected Button CButton(Color bg, String text) {
       Button b = new Button(text);
       b.setFont(new Font("Arial", Font.BOLD, 20));
       b.setBackground(bg);
       b.setPreferredSize(new Dimension(25,25));
       b.addActionListener(this);
       return b;
   }

   // creates the bottom panel
   protected Panel bottom() {
       Panel bottom = new Panel();
       bottom.setLayout(new BorderLayout());
       bottom.add("North",emptyLabel());
       bottom.add("East",emptyLabel());
       bottom.add("South",emptyLabel());
       bottom.add("West",emptyLabel());
       bottom.add("Center",bottomButtons());
       return bottom;
   }

   // creates the buttons in the bottom panel
   protected Panel bottomButtons() {
       Panel bottomButtons = new Panel();
       bottomButtons.setLayout(new GridLayout(7,1));
       howToPlay = new Button("How to play");
       howToPlay.addActionListener(this);
       newGame = new Button("New game");
       newGame.addActionListener(this);
       bottomButtons.add(emptyLabel());
       bottomButtons.add(board());
       bottomButtons.add(emptyLabel());
       bottomButtons.add(howToPlay);
       bottomButtons.add(emptyLabel());
       bottomButtons.add(newGame);
       bottomButtons.add(emptyLabel());
       return bottomButtons;
   }

   // creates a panel for board size options
   protected Panel board() {
       Panel menu = new Panel();
       menu.setLayout(new GridLayout(2,1));
       board = new Choice();
       board.addItem("Small");
       board.addItem("Medium");
       board.addItem("Large");
       menu.add(new Label("Board size:"));
       menu.add(board);
       board.addItemListener(this);
       return menu;
   }

   // handles events when buttons are pressed
   public void actionPerformed(ActionEvent event) {
       if (event.getSource() instanceof Button) {
           String label = ((Button)event.getSource()).getLabel();
           if (label.equals("How to play"))
               b.howToPlay();
           else if (label.equals("New game")) {
               b.newGame();
               b.refreshStepCounter();
           } else { // if color buttons are pressed, match adjacent squares
                   // to current group and updates the step counter
               int pressedColor;
               if (event.getSource() == red)
                   pressedColor = 0;
               else if (event.getSource() == yellow)
                   pressedColor = 1;
               else if (event.getSource() == green)
                   pressedColor = 2;
               else if (event.getSource() == blue)
                   pressedColor = 3;
               else if (event.getSource() == pink)
                   pressedColor = 4;
               else
                   pressedColor = 5;
               b.findAdjacentSquares(pressedColor);
               b.refreshStepCounter();
           }
       }

   }

   // if an option is selected in the drop down menu, change
   //    the board size
   public void itemStateChanged(ItemEvent event) {
       if (event.getSource() == board) {
           boardSize = board.getSelectedIndex();
           b.newGame();
       }
   }
}

// the Canvas class where the game refreshes/redraws
class BoardCanvas extends Canvas implements KeyListener{

   /**
   *
   */
   private static final long serialVersionUID = 1L;

   boolean won; // determines whether the user has won or not according
                   // to the stepCounter variable in FloodIt class
   int[][] color; // used to initialize the 2D array to
                   // store the color of the squares
   int x;            // width of each square
   int y;            // height of each square
   FloodIt parent; // calls the applet class
   Stack<int[]> adjacent = new Stack<int[]>(); // for determining which squares
                                               // to change color

   // local color constants
   static final Color black = Color.black;
   static final Color white = Color.white;
   static final Color red = Color.red;
   static final Color green = Color.green;
   static final Color blue = Color.blue;
   static final Color yellow = Color.yellow;
   static final Color pink = Color.pink;
   static final Color magenta = Color.magenta;

   // constructor
   public BoardCanvas (FloodIt f) {
       parent = f;
       addKeyListener(this); // for KeyListener
       setFocusable(true); // for KeyListener
       newGame();
   }

   // draws the board
   public void paint (Graphics g) {
       for (int row = 0; row < boardSize(); row++) {
           for (int col = 0; col < boardSize(); col++) {
               if (color[row][col] == 0)
                   g.setColor(red);
               else if (color[row][col] == 1)
                   g.setColor(yellow);
               else if (color[row][col] == 2)
                   g.setColor(green);
               else if (color[row][col] == 3)
                   g.setColor(blue);
               else if (color[row][col] == 4)
                   g.setColor(pink);
               else
                   g.setColor(magenta);
               Dimension d = getSize(); // get the size of the board
               x = col*(d.height/boardSize());
               y = row*(d.height/boardSize());
               g.fillRect(x,y,d.height/boardSize(),d.height/boardSize());
           }
       }
       if (won) {
           // shows a pop-up winning window
           JOptionPane.showMessageDialog(null, "You did it! Click \"New game\"" +
                                               " to play again.");
       } else {
           // shows a pop-up losing window
           if (parent.stepCounter == maxSteps()) {
               JOptionPane.showMessageDialog(null, "Game over! Click \"New game\"" +
                                                   " to try again.",
                       "You lost!", JOptionPane.ERROR_MESSAGE);
           }
       }
   }

   // dialog window for instructions
   public void howToPlay() {
       JOptionPane.showMessageDialog(null, "You start in the top-left corner and " +
               "progress through the rest of the board by selecting different\n" +
               "colors. When you change your current color, every adjacent square " +
               "with the same color also\n" + "changes. To win, flood the entire board " +
               "with the same color in the indicated number of steps.\n\n" + "You can " +
               "change your current color by clicking on the buttons in the color panel " +
               "in the sidebar, or\n" + "by pressing the keys assigned to each color " +
               "on your keyboard. In order to activate the keyboard, \n" + "press on the " +
               "canvas.\n\n" + "You can also change the size of the board by using the " +
               "drop-down menu in the sidebar.\n\n" + "Click on \"New game\" to begin!",
               "How to play Flood-It:", JOptionPane.WARNING_MESSAGE);
   }

   // creates a new game according to different level difficulty
   public void newGame() {

       color = new int[boardSize()][boardSize()];
       // randomly generates the color of each square in the board
       Random randomColor = new Random();
       for (int row = 0; row < boardSize(); row++) {
           for (int col = 0; col < boardSize(); col++) {
               color[row][col] = randomColor.nextInt(6);
           }
       }
       parent.stepCounter = 0;
       refreshStepCounter();
       won = false;
       repaint();
   }

   // determines the maximum steps for each board size
   public int maxSteps () {
       if (parent.boardSize == 0)
           return 22;
       else if (parent.boardSize == 1)
           return 30;
       else
           return 36;
   }

   // returns the board size according to the option chosen
   public int boardSize () {
       if (parent.boardSize == 0)
           return 12;
       else if (parent.boardSize == 1)
           return 17;
       else
           return 22;
   }

   // determines which squares to be connected and change color
   public void findAdjacentSquares(int pressedColor) {
       int[] original = {0,0}; // starts with the left corner
       adjacent.push(original);
       int currentColor = color[0][0];

       if (parent.stepCounter < maxSteps() && !won) {
           if (currentColor != pressedColor) {
               while (!adjacent.isEmpty()) {
                   // pops the last location in stack to check its
                   // surroundings
                   int[] currentLocation = adjacent.pop();
                   int row = currentLocation[0];
                   int col = currentLocation[1];

                   // checks the squares in all four directions of
                   // the current location. If the square is the
                   // same color as the current square, push it to
                   // the adjacent stack
                   try {
                       if (color[row][col-1] == currentColor) {
                           int[] location = {row,col-1};
                           adjacent.push(location);
                       }
                   } catch (ArrayIndexOutOfBoundsException e) {}
                   try {
                       if (color[row][col+1] == currentColor) {
                           int[] location = {row,col+1};
                           adjacent.push(location);
                       }
                   } catch (ArrayIndexOutOfBoundsException e) {}
                   try {
                       if (color[row+1][col] == currentColor) {
                           int[] location = {row+1,col};
                           adjacent.push(location);
                       }
                   } catch (ArrayIndexOutOfBoundsException e) {}
                   try {
                       if (color[row-1][col] == currentColor) {
                           int[] location = {row-1,col};
                           adjacent.push(location);
                       }
                   } catch (ArrayIndexOutOfBoundsException e) {}
                   if (color[row][col] != pressedColor) {
                       color[row][col] = pressedColor;
                   }
               }
               parent.stepCounter += 1;
               won = oneColor(); // checks to see if the board
                               // is flooded with one color
           }
       }
       repaint();
   }

   // updates the step counter in the applet
   public void refreshStepCounter () {
       parent.step.setText("Steps: " + parent.stepCounter
               + "/" + maxSteps());
   }

   // determines if the board is flooded with one single color using
   // the top left square as reference
   public boolean oneColor () {
       int temp = color[0][0];
       for (int row = 0; row < boardSize(); row++) {
           for (int col = 0; col < boardSize(); col++) {
               if (temp != color[row][col])
                   return false;
           }
       }
       return true;
   }

   // handles key events when keys are pressed to change color
   public void keyPressed(KeyEvent event) {
       char c = event.getKeyChar();
       int pressedColor = 10; // arbitrary number
       if (c == 'j') // blue
           pressedColor = 3;
       else if (c == 'k') // pink
           pressedColor = 4;
       else if (c == 'l') // magenta
           pressedColor = 5;
       else if (c == 'u') // red
           pressedColor = 0;
       else if (c == 'i') // yellow
           pressedColor = 1;
       else {
           if (c == 'o') // green
               pressedColor = 2;
       }
       if (pressedColor >= 0 && pressedColor <= 5) {
           findAdjacentSquares(pressedColor);
           refreshStepCounter();
       }
   }

   public void keyReleased(KeyEvent event) {}

   public void keyTyped(KeyEvent event) {}
}

====================================================================

sample output:
