Question
In: Electrical Engineering

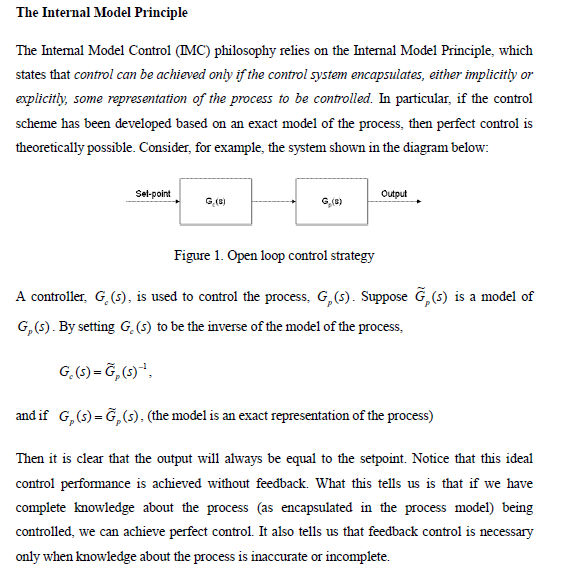

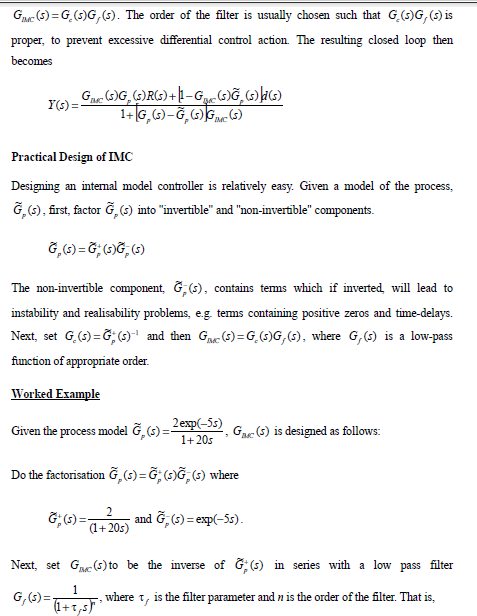

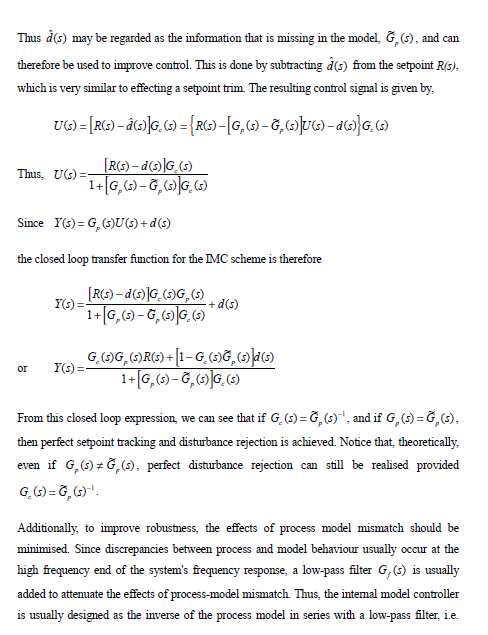

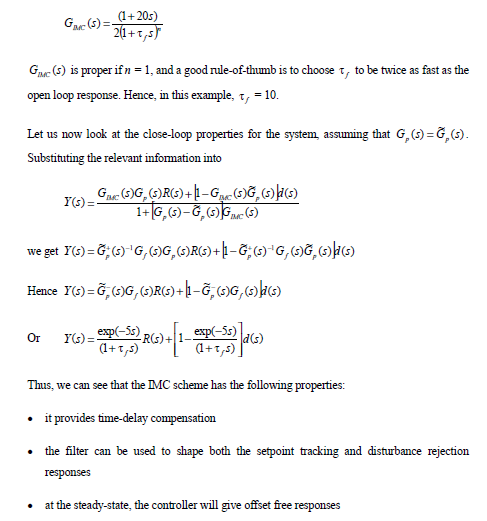

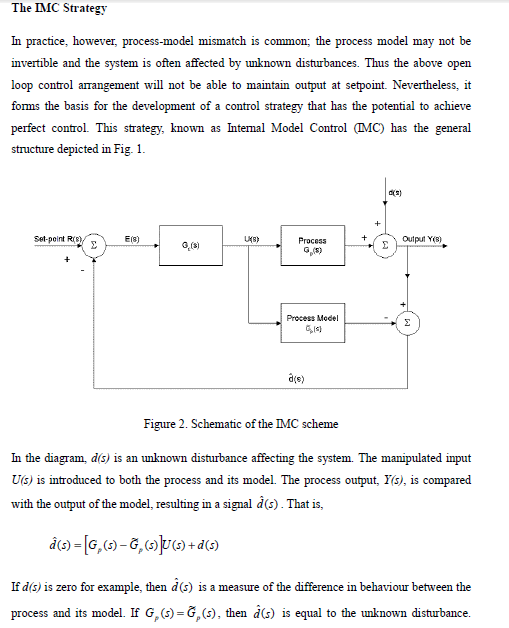

Sketch the block diagram of an IMC controller and describe its operation.
|
