Question
In: Electrical Engineering
I, Sketch and describe the structure and principle of operation of a well labeled linear Traveling...

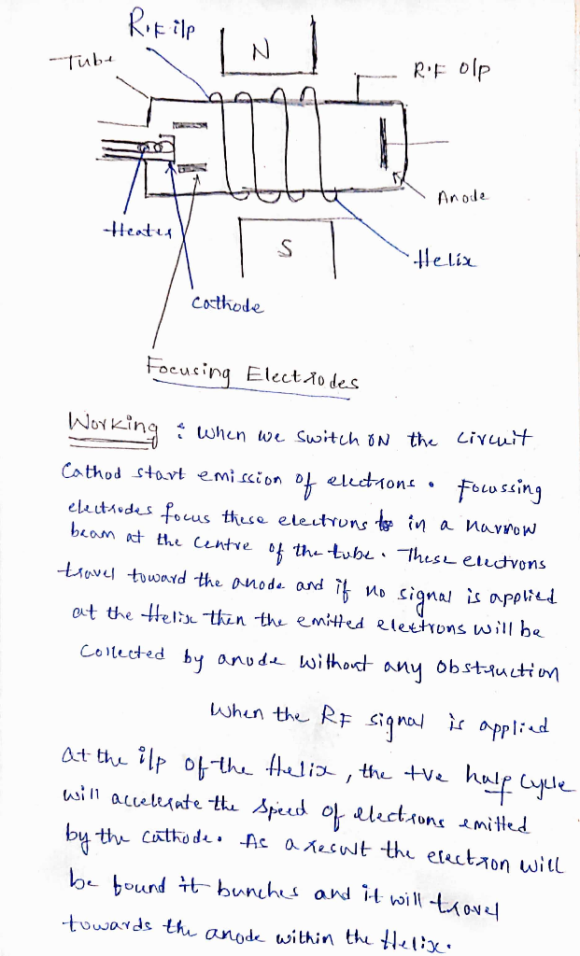

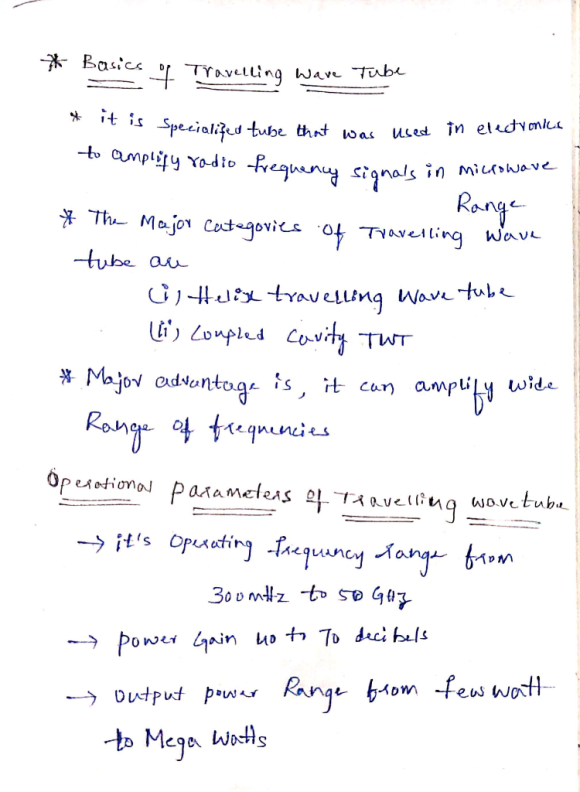

I, Sketch and describe the structure and principle of operation of a well labeled linear Traveling Wave Tube TWT

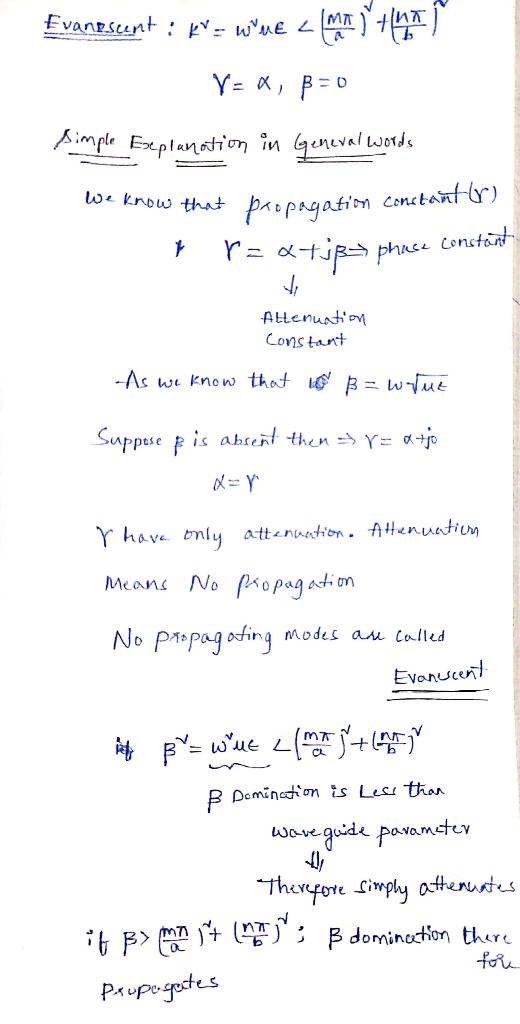

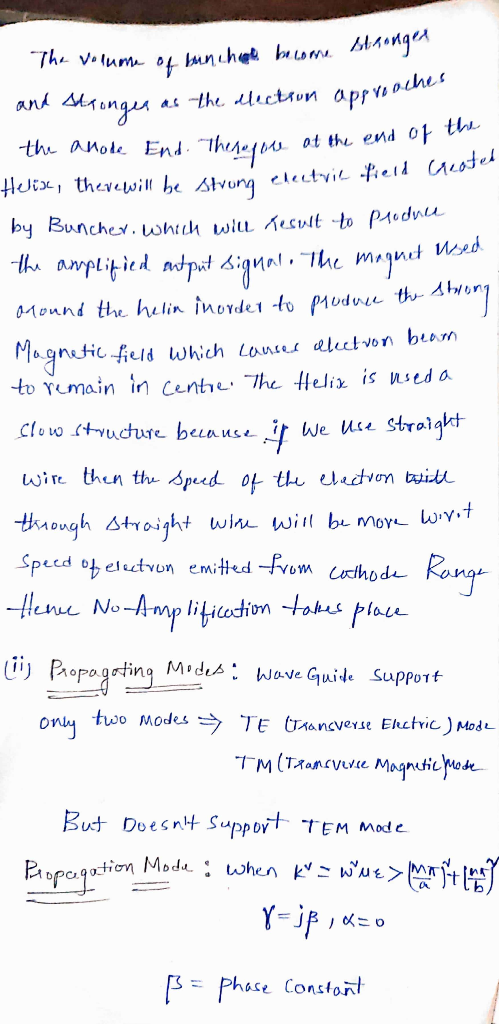

ii, What are the propagating modes, and Evanescent modes in Waveguide
Solutions
Manojponduru answered 6 months agoRelated Solutions
