Question

In: Electrical Engineering

Choose one example of the existing power station or distribution genaration system. Draw a complete block...

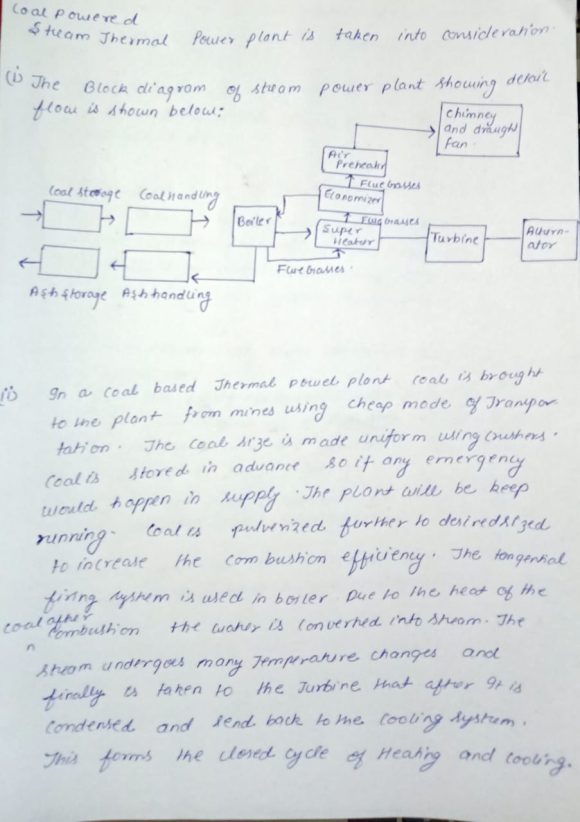

  1. Choose one example of the existing power station or distribution genaration system.
  1. Draw a complete block diagram of the station [6M]
  2. Give a brief summary of the station [6M]

                                                                                                                                     [12 Marks]

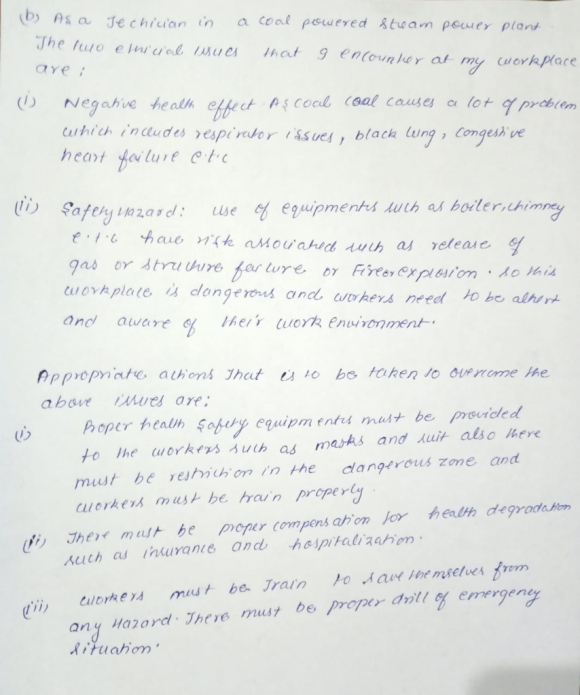

b)As a technician who worked at the plant you named in (a), discuss TWO (2) ethical issues that you may encounter at your workplace. Then, suggest an appropriate action to overcome the issues

Solutions

Expert Solution


Related Solutions

Draw block diagram of a sun tracking system for a solar power system. Also mention the...
Draw block diagram of a sun tracking system for a solar power system. Also mention the component clearly. Note: give a small description of its working.
Give an example of a closed loop control system and draw its block diagram
Give an example of a closed loop control system and draw its block diagram
Choose any one embedded system application device or equipment. With aid of block diagram, explain the...
Choose any one embedded system application device or equipment. With aid of block diagram, explain the operation of the system, advantages and disadvantages of chosen device or equipment.
1. What is the need of a sub-station in the power system ? 2. Why are...
1. What is the need of a sub-station in the power system ? 2. Why are pole-mounted sub-stations very popular ? 3. Where we erect a terminal sub-station ? 4. Why do we use isolators on both sides of circuit breaker ? 5. What is the utility of instrument transformers in sub-stations ?
  Draw and carefully and thoroughly label a block diagram of an “open loop” control system. Draw...
  Draw and carefully and thoroughly label a block diagram of an “open loop” control system. Draw and carefully and thoroughly   label a block diagram of a  “closed loop” control system.
Describe the effects of harmonics on power distribution system.
Describe the effects of harmonics on power distribution system.
Draw the block diagram of an adapter (also called “Regulated Power Supply”) and explain the function...
Draw the block diagram of an adapter (also called “Regulated Power Supply”) and explain the function of each block. Explain briefly with proper sketches, how the diodes form the integral part of the adapter design.
In a Randomized Complete Block Design one of the two factors in the analysis is an...
In a Randomized Complete Block Design one of the two factors in the analysis is an extraneous variable (we are not directly interested in it) that is called a block. Explain the goal of including the extraneous variable in the analysis.
Question No 2 a) Draw functional block diagrams of a typical sensor system and a typical...
Question No 2 a) Draw functional block diagrams of a typical sensor system and a typical actuator system. ( 10 marks) b) Draw hierarchy of an Industrial Automation system_ Briefly describe function of each level ( 15 marks)
How does power and privilege serve to maintain existing inequalities? Provide an example to support your...
How does power and privilege serve to maintain existing inequalities? Provide an example to support your response.
