Data structure Give three distinct binary search trees for the following data:   1 2 3 4...

Data structure

  1. Give three distinct binary search trees for the following data:   1 2 3 4 5 6 7. One of these trees must have minimum height and another must-have maximum height.
  2. Draw the BSTs that result from each sequence of add operations. (2) a. 10, 20, 30, 40 b. 30, 20, 40, 10 c. 20, 10, 30, 40

Solutions

Expert Solution

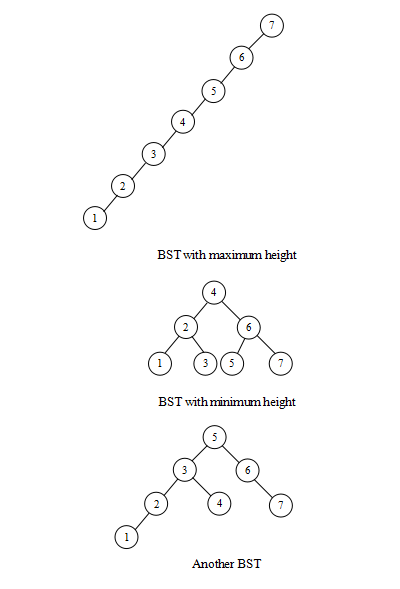

Answer 1.

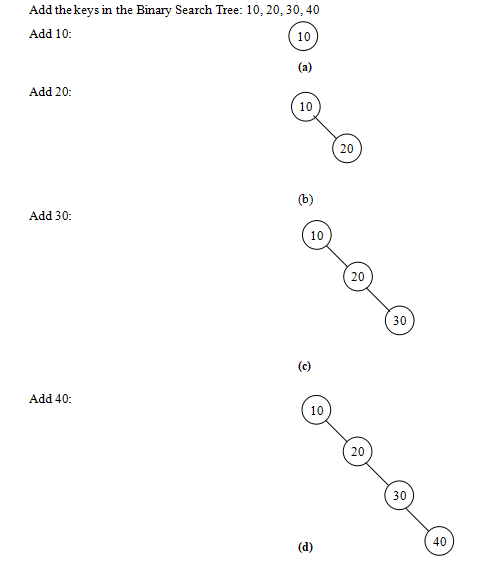

Answer 2.a

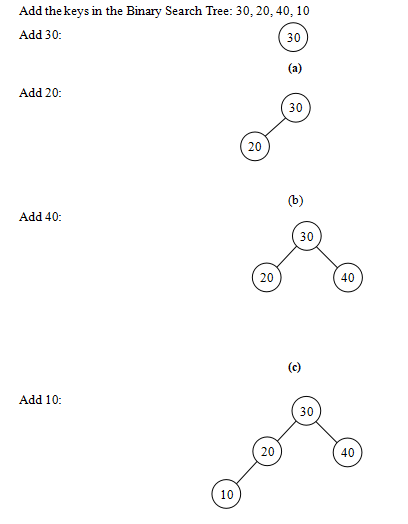

Answer 2.b

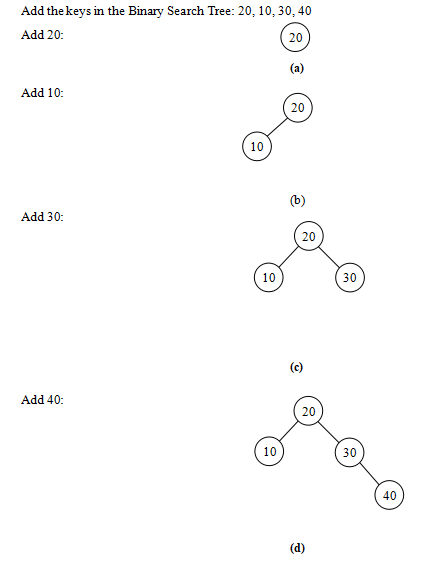

Answer 2.c

Solving your question and helping you to well understand it is my focus. So if you face any difficulties regarding this please let me know through the comments. I will try my best to assist you. However if you are satisfied with the answer please don't forget to give your feedback. Your feedback is very precious to us, so don't give negative feedback without showing proper reason.
Always avoid copying from existing answers to avoid plagiarism.
Thank you.
