Question

In: Chemistry

For the following electrochemical cell Cu(s)|Cu2 (aq, 0.0155 M)||Ag (aq, 1.50 M)|Ag(s) write the net cell...

For the following electrochemical cell Cu(s)|Cu2 (aq, 0.0155 M)||Ag (aq, 1.50 M)|Ag(s)

write the net cell equation. Phases are optional. Do not include the concentrations.

Calculate the following values at 25.0 °C using standard potentials as needed.

E cell #1:

E cell #2:

G rxn #1:

Grxn#2:

there will be 4 answers total!

Solutions

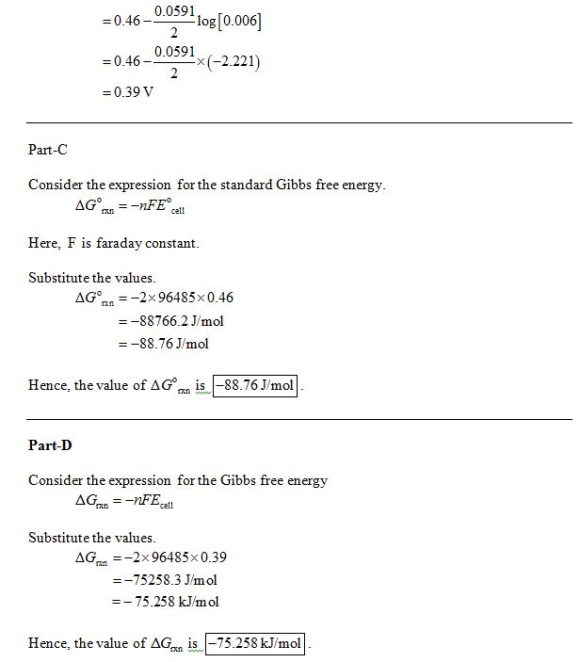

Expert Solution


Related Solutions

For the following electrochemical cell        Cu(s)|Cu^2+ (aq, 0.0155 M)||Ag^+ (aq, 3.50 M)|Ag(s) write the net cell...
For the following electrochemical cell        Cu(s)|Cu^2+ (aq, 0.0155 M)||Ag^+ (aq, 3.50 M)|Ag(s) write the net cell equation. Phases are optional. Do not include the concentrations. Calculate the following values at 25.0 °C using standard potentials as needed. Eocell delta Go reaction Ecell delta G reaction
1A: Calculate E for the cell Cu(s)+2Ag+(aq)--->Cu+2(aq)+2Ag(s) at 298K when [Ag+]=0.025M and [Cu2+]=0.068 M 1B: Consider...
1A: Calculate E for the cell Cu(s)+2Ag+(aq)--->Cu+2(aq)+2Ag(s) at 298K when [Ag+]=0.025M and [Cu2+]=0.068 M 1B: Consider the cell Cd(s)+Cu2+(aq)-->Cu(s)+Cd2+. Calculate K for this reaction.
A) Sketch the electrochemical cell made from Cu/Cu2+ and Ag/Ag+ half cells under standard conditions. (E0red...
A) Sketch the electrochemical cell made from Cu/Cu2+ and Ag/Ag+ half cells under standard conditions. (E0red (Ag+) = 0.80 V and E0red (Cu2+) = 0.34V) B) Towards which half-cell do electrons flow in the external circuit? C) In which half-cell does reduction occur? D) Calculate E0cell in volts (show work). E) Which electrode is the positive pole? F) Which electrode decreases in mass during cell operation. G) Which electrodes are considered active? H) What differences, if any, in responses B,...
Copper can be electroplated at the cathode of an electrolysis cell by the half-reaction. Cu2+(aq)+2e−→Cu(s)Cu2+(aq)+2e−→Cu(s) Part...
Copper can be electroplated at the cathode of an electrolysis cell by the half-reaction. Cu2+(aq)+2e−→Cu(s)Cu2+(aq)+2e−→Cu(s) Part A How much time would it take for 338 mgmg of copper to be plated at a current of 7.1 AA ?
Calculate the cell potential for the following electrochemical cell: Zn | [Zn2+]=4.2M || [Cu2+]=0.004M | Cu
Calculate the cell potential for the following electrochemical cell: Zn | [Zn2+]=4.2M || [Cu2+]=0.004M | Cu
Consider the Daniell cell, for which the overall cell reaction is Zn(s)+Cu2+(aq)⇌Zn2+(aq)+Cu(s) The concentrations of CuSO4...
Consider the Daniell cell, for which the overall cell reaction is Zn(s)+Cu2+(aq)⇌Zn2+(aq)+Cu(s) The concentrations of CuSO4 and ZnSO4 are 2.20×10−3 m and 1.10×10−3 m , respectively. A) Calculate E setting the activities of the ionic species equal to their molalities. Express your answer to four significant figures and include the appropriate units. B) Calculate γ±,ZnSO4 for the half-cell solutions using the Debye-Huckel limiting law. Express your answer using three significant figures. C) Calculate γ±,CuSO4 for the half-cell solutions using the...
Reaction 1: Cu(s) + AgNO3 (aq) = CuNO3 (aq) + Ag (s) Reaction 2: Cu (s)...
Reaction 1: Cu(s) + AgNO3 (aq) = CuNO3 (aq) + Ag (s) Reaction 2: Cu (s) +AgNO3 (aq) = Cu(NO3)2 (aq) + Ag (s) Part 1: Write the balanced net ionic equations for both of the above reactions. Assume that excess silver nitrate is available when answering the remaining questions. Part 2: Calculate the theoretical grams of silver metal that could form from 2.568g of copper wire based upon reaction 1. (Be sure the reaction is properly balanced.) Part 3:...
the equation: 2agn03 (aq) +cu (s) heat 2 ag (s) + Cu (NO3) 2 (aq) is...
the equation: 2agn03 (aq) +cu (s) heat 2 ag (s) + Cu (NO3) 2 (aq) is said to be written as?
The following takes place in a voltaic cell: Zn(s) + Cu2+(1 M) → Cu(s) + Zn2+(1...
The following takes place in a voltaic cell: Zn(s) + Cu2+(1 M) → Cu(s) + Zn2+(1 M). The cell has a voltage of +1.10 V. Choose the answer that best relates to questions 1-4. (A) there is no change in the voltage (B) the voltage becomes zero (C) the voltage increases (D) the voltage decreases, but stays positive (E) the voltage becomes negative 1. What happens to the voltage when a saturated ZnSO4 solution is added to the zinc compartment...
Given equations: (1) Cu2+ (aq) + 2 OH- aq) ⇌ Cu(OH)2 (s) (2) Cu2+ (aq) +...
Given equations: (1) Cu2+ (aq) + 2 OH- aq) ⇌ Cu(OH)2 (s) (2) Cu2+ (aq) + 6 NH3 (aq) ⇌ Cu(NH3)62+ (aq) In a test tube of~1mL of Cu2+ solution was added to it (CuSO4). Several drops of 6 M NaOH were added to the copper solution until the precipitate Cu(OH)2 was observed. Are all the Cu2+ ions part of the precipitate? Explain. Then drops of 6M NH3 until a change was observed. You may need to stir your test...
