Question

In: Physics

A 486 nm laser beam shines on a diffraction grating. 5 bright fringes are measured to...

A 486 nm laser beam shines on a diffraction grating. 5 bright fringes are measured to be 60 cm apart at a Scren Distance of 1.327m. What is the grating constant in cm^-1

Solutions

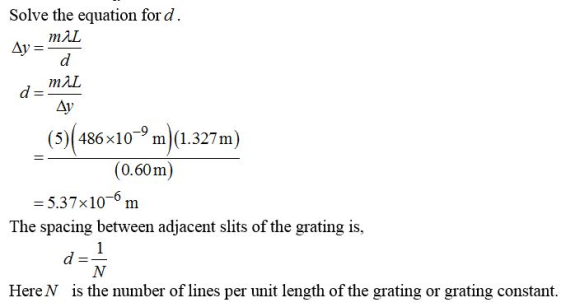

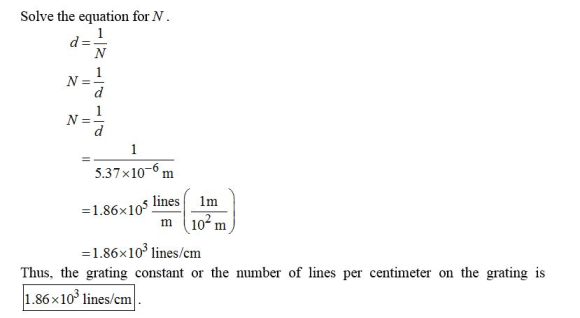

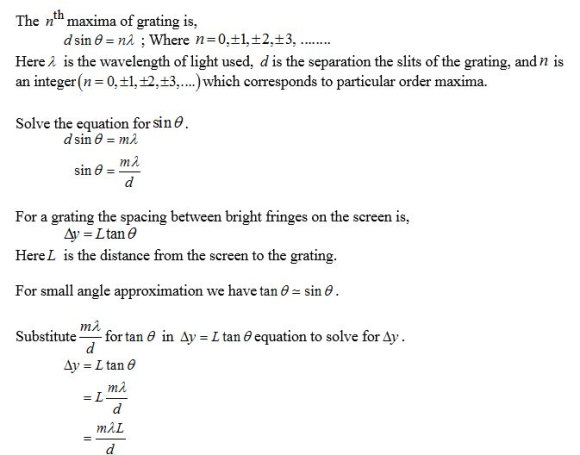

Expert Solution
