Question

In: Advanced Math

In control systems analysis, transfer functions are developed that mathematically relate the dynamics of a system’s...

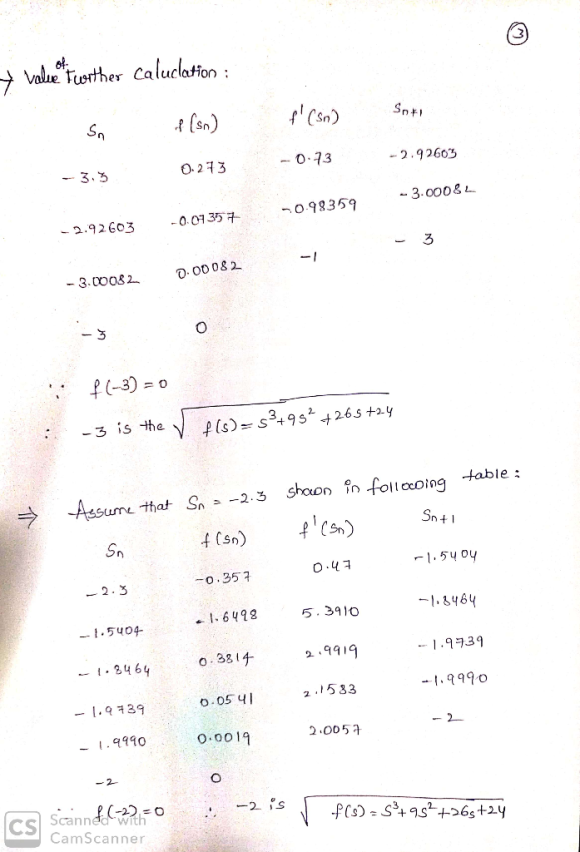

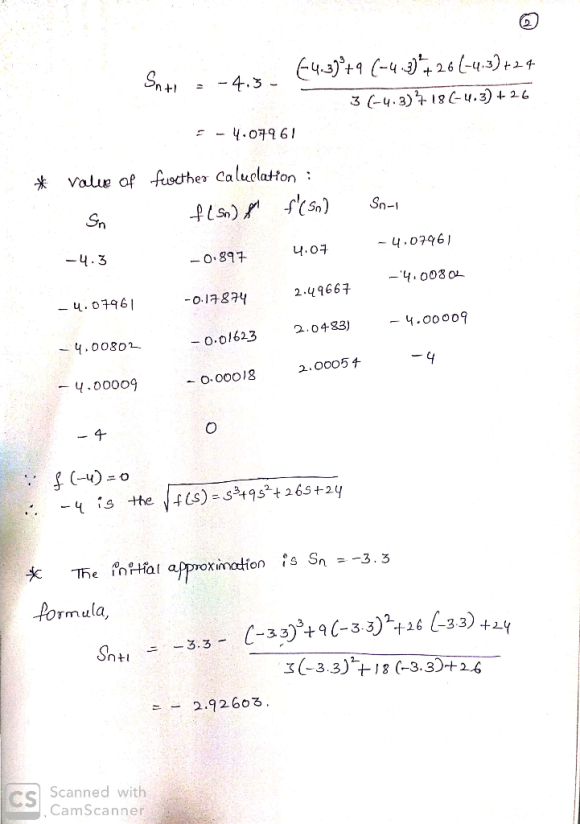

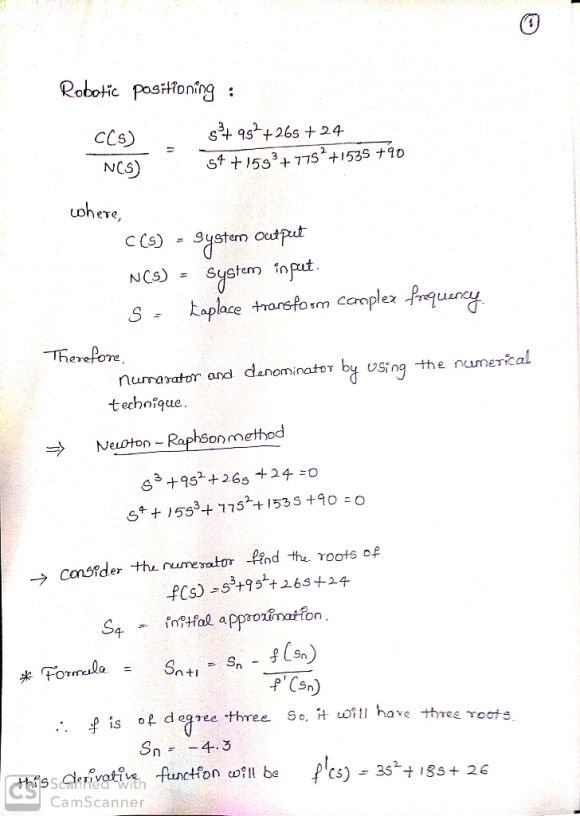

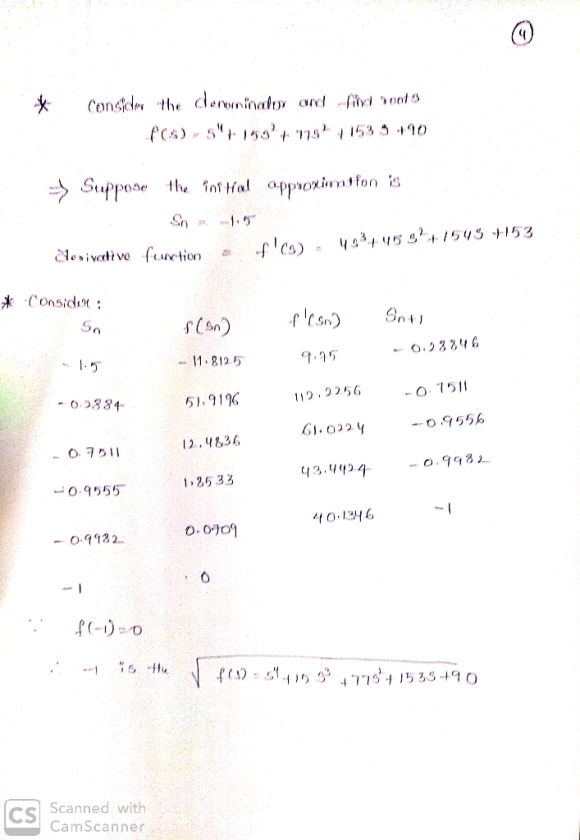

In control systems analysis, transfer functions are developed that mathematically relate the dynamics of a system’s input to its output. A transfer function for a robotic positioning system is given by ?(?) = ?(?) ?(?) = ?3+12.5?2+50.5?+66 ?4+19?3+122?2+296?+192 . Where, ?(?) = system gain, ?(?) = system output, ?(?) = system input, and ? = Laplace transform complex frequency. Now, use Bairstow’s method to determine the roots of the numerator and denominator and factor these into the form ?(?) = (?+?1)(?+?2)(?+?3) (?+?1)(?+?2)(?+?3)(?+?4) . Where, ?? and ?? = the roots of the numerator and denominator, respectively. [Hints: To perform the evaluation of complex roots, Bairstow’s method divides the polynomial by a quadratic factor ?2 − ?? − ?. Use initial guesses of ? = ? = −1, for determining the roots of both numerator and denominator, and perform up to four iteration.]

Solutions

Expert Solution


Related Solutions

Describe the energy analysis for both closed and control volume systems.
Describe the energy analysis for both closed and control volume systems.
Consider the casual CT systems with transfer functions: H1(s)= (s+1)/(s+2)(s^2+s+16) H2(s)= s/(s+10)(s+1) H3(s)= 1/(s-1)(s+1) H4(s)= s/(s+1)(s^2+s+16)...
Consider the casual CT systems with transfer functions: H1(s)= (s+1)/(s+2)(s^2+s+16) H2(s)= s/(s+10)(s+1) H3(s)= 1/(s-1)(s+1) H4(s)= s/(s+1)(s^2+s+16) 1) Write magnitude and phase expression for their Bode Plots and Sketch their asymptotes. Verify Using Matlab. 2) Compute their steady-state response to cos(5t) u(t) + 3u(t) + cos(10t) e^-t u(t). ***Please show slope computations and conversions for the graphs. This is where I am unable to move forward.
