State (concisely) how (a) vertical drains, (b) surcharge preloading and (c) reinforcement benefit the design of...

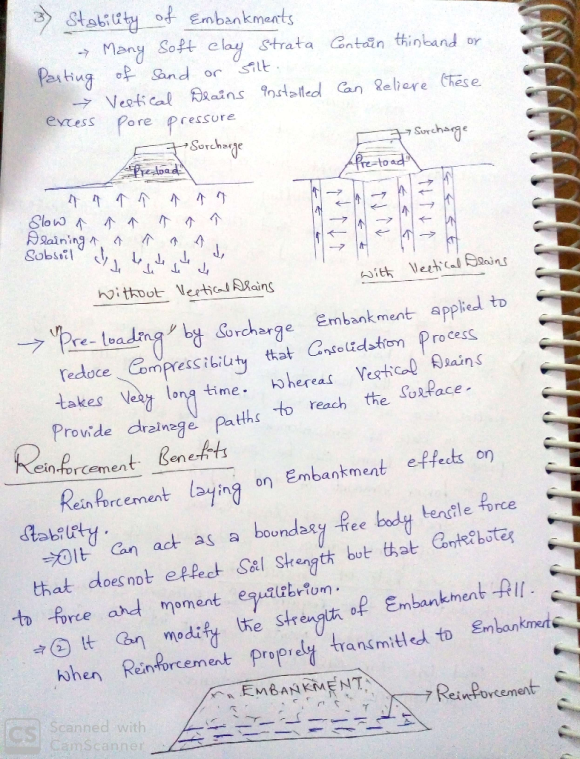

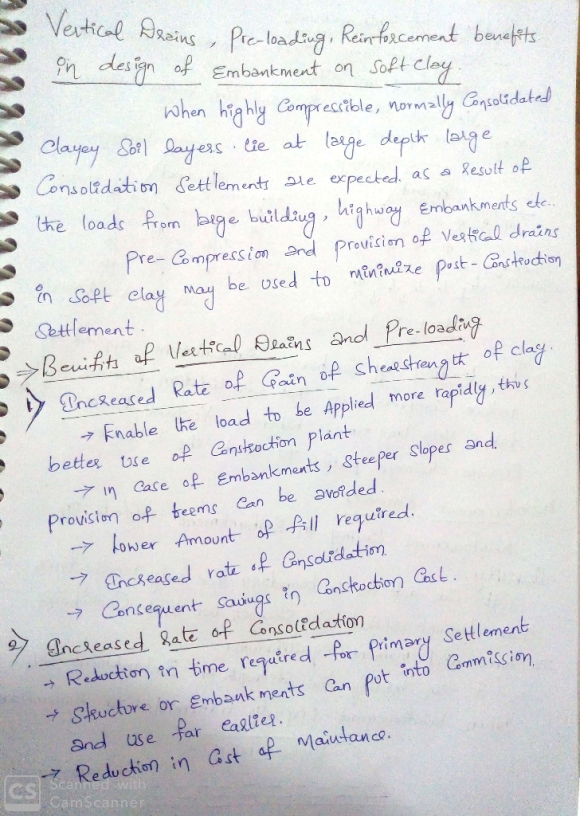

State (concisely) how (a) vertical drains, (b) surcharge preloading and (c) reinforcement benefit the design of an embankment on soft clay.

Expert Solution

Ally Wells answered 5 days ago
