Question

In: Physics

We want to rotate the direction of polarization of a beam of polarized light through 90°...

We want to rotate the direction of polarization of a beam of polarized light through 90° by sending the beam through one or more polarizing sheets. (a) What is the minimum number of sheets required? (b) What is the minimum number of sheets required if the transmitted intensity is to be more than 81% of the original intensity?

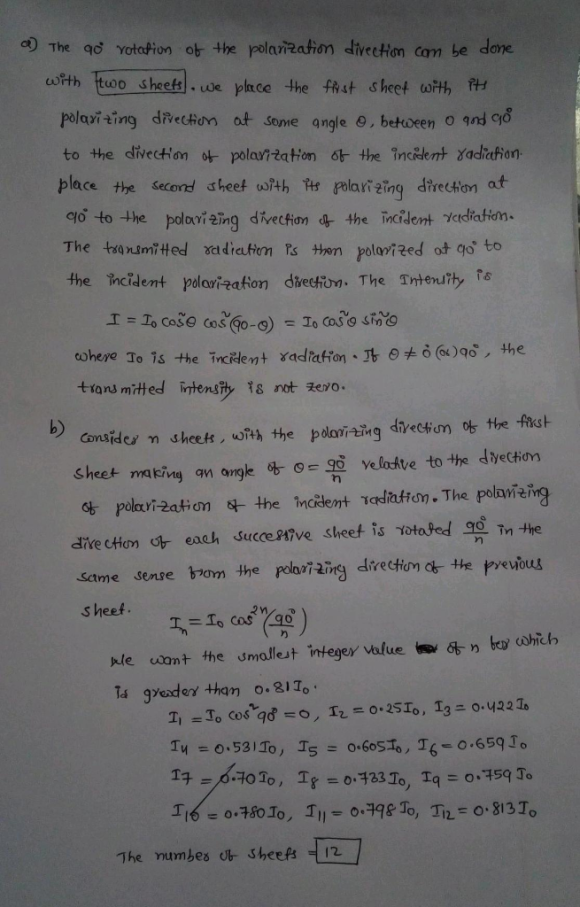

Solutions

Expert Solution


Related Solutions

Polarization, namely the filtering of non-polarized light waves (the direction of the vibrations of the electric...
Polarization, namely the filtering of non-polarized light waves (the direction of the vibrations of the electric field randomly) into one axis can occur by absorption, reflection, scattering, briefly describing the differences in the three, and examples
Polarized light is to have its polarization plane rotated by 90 degrees. In which of the...
Polarized light is to have its polarization plane rotated by 90 degrees. In which of the following cases does the final beam have the greatest intensity? Select one: a. 1 polarizing filter, rotating the beam by 90 degrees b. 3 polarizing filters, both rotate the beam by 30 degrees c. 6 polarizing filters, each rotating the beam by 15 degrees d. None of the above, polarized light can't be rotated please explain the answer think it is C.
A laser produces light that is polarized in the vertical direction.
A laser produces light that is polarized in the vertical direction. The light travels in the positive y-direction and passes through two polarizers, which have polarizing angles of 36.1
Light reflected off a horizontal surface will be a) partially polarized with the plane of polarization...
Light reflected off a horizontal surface will be a) partially polarized with the plane of polarization vertical b) partially polarized with the plane of polarization horizontal c) completely polarized d) completely unpolarized
A beam of light is a mixture of unpolarized light with intensity Ia and linearly polarized...
A beam of light is a mixture of unpolarized light with intensity Ia and linearly polarized light with intensity Ib. The polarization direction for the polarized light is vertical. When this mixed beam of light is passed through a polarizer that is vertical, the transmitted intensity is 16.8 W/m2; when the polarizer is at an angle of 55.0° with the vertical, the transmitted intensity is 8.68 W/m2. (a) Is Ia greater than, less than, or equal to Ib? Explain. (b)...
Light from a laser is plane polarized in the vertical direction
Light from a laser is plane polarized in the vertical direction. If a linear polarizer is placed in the beam at an angle of 45 degree from the vertical axis, what percentage of the light will pass?
A horizontal beam of vertically polarized light of intensity 42.0 W/m2 is sent through two polarizing...
A horizontal beam of vertically polarized light of intensity 42.0 W/m2 is sent through two polarizing sheets. The polarizing direction of the first is at 26.0° to the vertical, and that of the second is horizontal. What is the intensity of the light transmitted by the pair of sheets?
A horizontal beam of vertically polarized light of intensity 33.0 W/m2 is sent through two polarizing...
A horizontal beam of vertically polarized light of intensity 33.0 W/m2 is sent through two polarizing sheets. The polarizing direction of the first is at 37.0° to the vertical, and that of the second is horizontal. What is the intensity of the light transmitted by the pair of sheets? W/m2
As we know, linearly polarized light corresponds to a pure state and non-polarized light is in...
As we know, linearly polarized light corresponds to a pure state and non-polarized light is in a mixed state. Considering statistical mechanics, please state and show whether a circularly polarized light is in a pure state or a mixed state.
Polarization Question (a) Vertically polarized light is incident on a polaroid sheet with its transmission axis...
Polarization Question (a) Vertically polarized light is incident on a polaroid sheet with its transmission axis at 45 degrees to the vertical. What fraction of the incident intensity emerges through the polaroid sheet? How is this emerging light polarized? (b) The light emerging from the polaroid sheet in (a) is now incident on a second polaroid sheet, with its transmission axis horizontal. What fraction of the intensity incident on the second sheet emerges? What fraction is this of the original...
