Question

In: Advanced Math

How would I do this problem? A mass of 1 kg is attached to a spring...

How would I do this problem?

A mass of 1 kg is attached to a spring whose constant is 5 N/m. Initially the mass is released 1 m below the equilibrium position with a downward velocity of 5 m/s, and the subsequent motion takes place in a medium that offers a damping force numerically equal to two times the instantaneous velocity. Find the equation of motion if the mass is driven by an external force equal to f(t) = 12 cos (2t) + 3 sin (2t)

Solutions

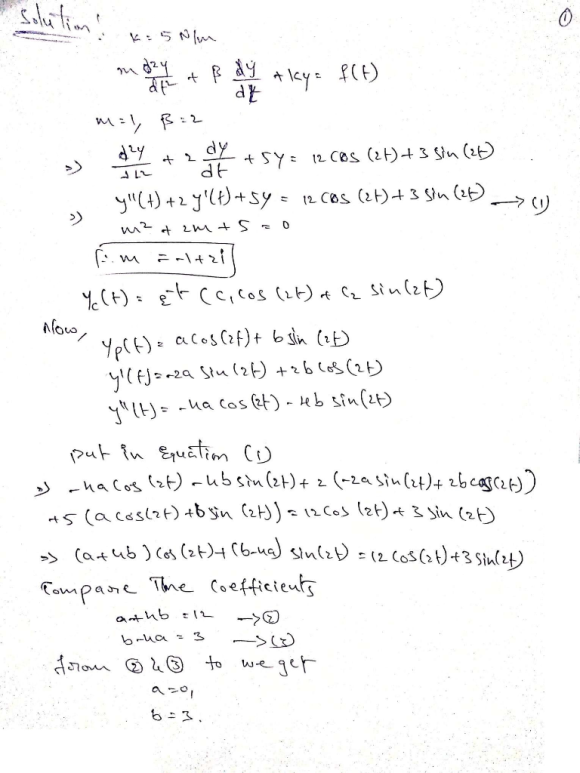

Expert Solution

Any doubt feel free to ask before rate I will reply for sure.......thanks
