2. (CFGs) Give CFGs that generate the following languages. Use as few variables as you can...

2. (CFGs) Give CFGs that generate the following languages. Use as few variables as you can (and no more than requested). Unless specified otherwise, the alphabet is Σ = {0, 1}.

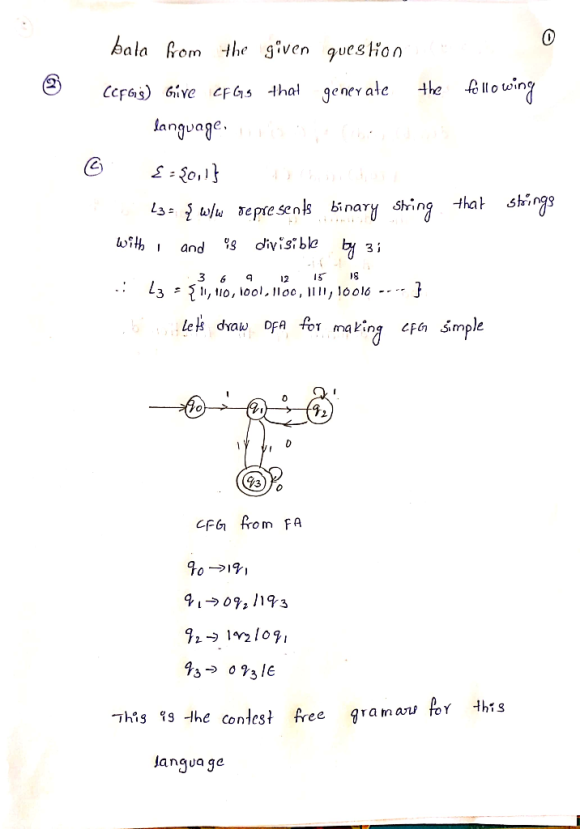

(c) L3 = {w | w represents a binary number that starts with 1 and is divisible by 3}. Use at most 4 variables.

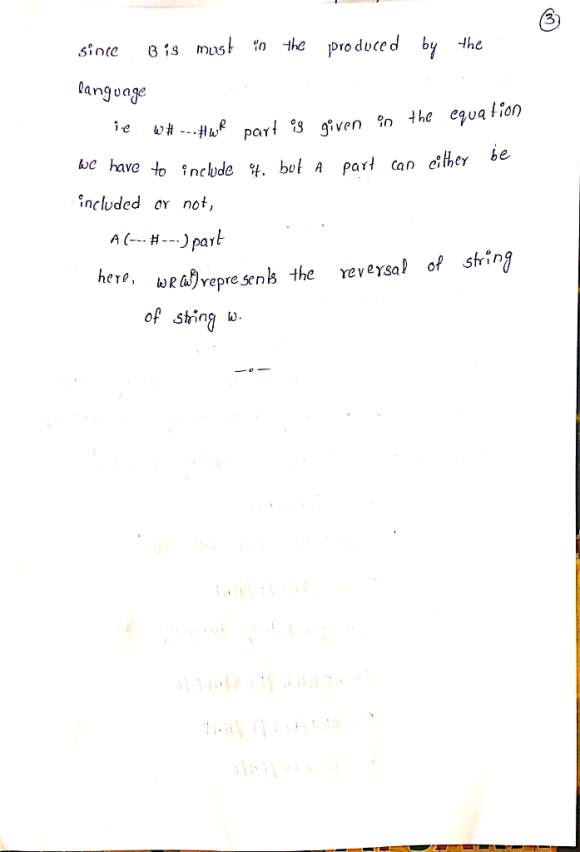

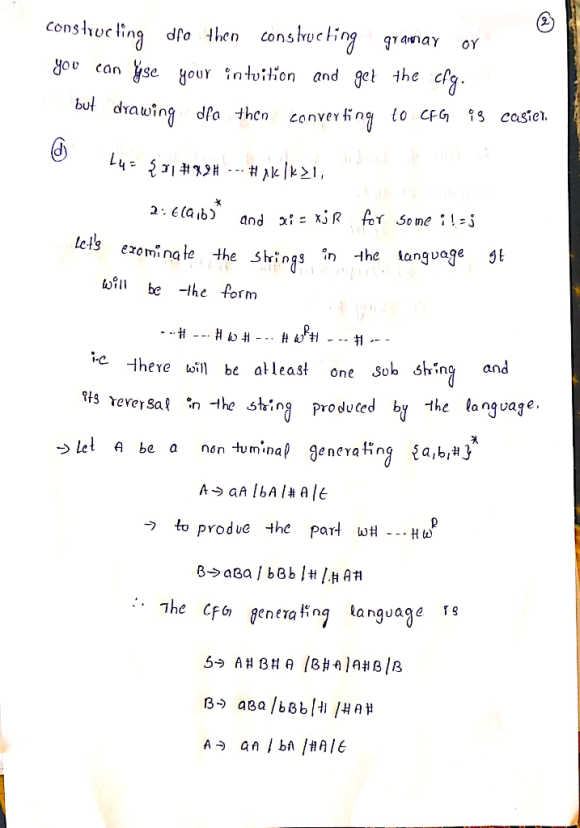

(d) L4 = {x1#x2# · · · #xk | k ≥ 1, each xi ∈ {0, 1}* , and xi = xjR for some i != j}. Recall that wR represents string w written backwards. Use at most 4 variables.

Solutions

Expert Solution
