Question

In: Civil Engineering

What is the "C" value (Rational method) for a playground with a 3% grade and a...

What is the "C" value (Rational method) for a playground with a 3% grade and a 50 year design storm frequency?

Solutions

Expert Solution

Soln)

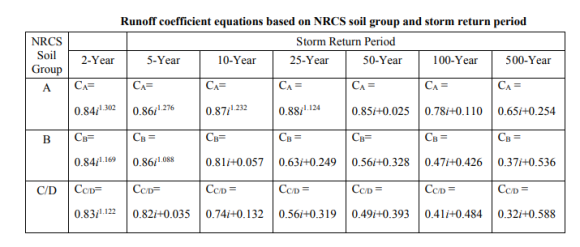

Where-

i = % Imperviousness

CA = Runoff coefficient for Natural Resources Conservation Service (NRCS) HSG A soils

CB = Runoff coefficient for NRCS HSG B soils

CC/D = Runoff coefficient for NRCS HSG C and D soils.

For Playground i = 25%

i = 0.25

It is a playgroung, considering Group C & D soil for 50yr Return Period

CC/D = 0.49i+0.393

= 0.49 x 0.25 + 0.393

C = 0.515
