Question

Sorting (quick)

Sort the array using quick sort. Write the array content after each pass (i.e., from pass 1 to pass 7). Each pass is defined as the completion of one partition. We always pick the first array element as the pivot for each partition.

Answer 1

Quick sort is a type of sorting algorithm. It works on the principle of divide and conquer.



Here is how quicksort uses divide-and-conquer. As with merge sort, think of sorting a subarray array[p..r], where initially the subarray is array[0..n-1].

1. Divide by choosing any element in the subarray array[p..r]. Call this element the pivot.

   Rearrange the elements in array[p..r] so that all elements in array[p..r] that are less than or equal to the pivot are to its left and all elements that are greater than the pivot are to its right. We call this procedure partitioning. At this point, it doesn't matter what order the elements to the left of the pivot are in relation to each other, and the same holds for the elements to the right of the pivot. We just care that each element is somewhere on the correct side of the pivot.

   As a matter of practice, we'll always choose the rightmost element in the subarray, array[r], as the pivot. So, for example, if the subarray consists of [9, 7, 5, 11, 12, 2, 14, 3, 10, 6], then we choose 6 as the pivot. After partitioning, the subarray might look like [5, 2, 3, 6, 12, 7, 14, 9, 10, 11]. Let q be the index of where the pivot ends up.

2. Conquer by recursively sorting the subarrays array[p..q-1] (all elements to the left of the pivot, which must be less than or equal to the pivot) and array[q+1..r] (all elements to the right of the pivot, which must be greater than the pivot).

3. Combine by doing nothing. Once the conquer step recursively sorts, we are done. Why? All elements to the left of the pivot, in array[p..q-1], are less than or equal to the pivot and are sorted, and all elements to the right of the pivot, in array[q+1..r], are greater than the pivot and are sorted. The elements in array[p..r] can't help but be sorted!

   Think about our example. After recursively sorting the subarrays to the left and right of the pivot, the subarray to the left of the pivot is [2, 3, 5], and the subarray to the right of the pivot is [7, 9, 10, 11, 12, 14]. So the subarray has [2, 3, 5], followed by 6, followed by [7, 9, 10, 11, 12, 14]. The subarray is sorted.

The base cases are subarrays of fewer than two elements, just as in merge sort. In merge sort, you never see a subarray with no elements, but you can in quicksort, if the other elements in the subarray are all less than the pivot or all greater than the pivot.

Let's go back to the conquer step and walk through the recursive sorting of the subarrays. After the first partition, we have subarrays of [5, 2, 3] and [12, 7, 14, 9, 10, 11], with 6 as the pivot.

To sort the subarray [5, 2, 3], we choose 3 as the pivot. After partitioning, we have [2, 3, 5]. The subarray [2], to the left of the pivot, is a base case when we recurse, as is the subarray [5], to the right of the pivot.

To sort the subarray [12, 7, 14, 9, 10, 11], we choose 11 as the pivot. After partitioning, we have [7, 9, 10] to the left of the pivot and [14, 12] to the right. Then the subarrays are sorted, resulting in [7, 9, 10], followed by 11, followed by [12, 14].

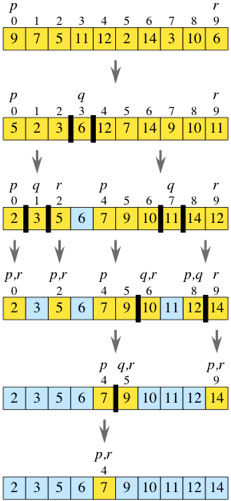

Here is how the entire quicksort algorithm unfolds. Array locations in blue have been pivots in previous recursive calls, and so the values in these locations will not be examined or moved again.
