Question

In: Computer Science

Polish notation, also known as Polish prefix notation or simply prefix notation, is a form of...

Polish notation, also known as Polish prefix notation or simply prefix notation, is a form of notation for logic, arithmetic, and algebra. Its distinguishing feature is that it places operators to the left of their operands.

The expression for adding the numbers 1 and 2, in prefix notation, is written as “+ 12” rather than “1 + 2”. In more complex expressions, the operands may be nontrivial expressions including operators of their own. For instance, the expression that would be written in conventional infix notation as (5 + 6) * 7 can be written in prefix as * (+ 5 6) 7

In this assignment, we only care about binary operators: + - * and /.

For binary operators, prefix representation is unambiguous and bracketing the prefix expression is unnecessary. As such, the previous expression can be further simplified to * + 5 6 7

The processing of the product is deferred until its two operands are available (i.e., 5 plus 6, then multiplies the result with 7). As with any notation, the innermost expressions are evaluated first, but in prefix notation this ”innermost-ness” is conveyed by order rather than bracketing.

Your task is to create a class that convert a prefix expression to a standard form (otherwise known as infix) and compute the prefix expression.

Main function

The test script will compile your code using

g++ -o main.out -std=c++11 -O2 -Wall *.cpp

It is your responsibility to ensure that your code compiles on the university system. g++ has too many versions, so being able to compile on your laptop does not guarantee that it compiles on the university system. You are encouraged to debug your code on a lab computer (or use SSH).

Create a main function that takes in one line. The line contains a list of operators and operands separated by spaces. The input doesn’t contain parenthesis. An operator is a character from +, -, *, and /. An operand is a nonnegative integer from 0 to 99. You are asked to convert the prefix expression to an infix form and output its value as well. If the expression is not a valid prefix expression, your program should output “Error”.

Sample input: * - 5 6 7

Sample output: (5 - 6) * 7 = -7



Sample input: * 5

Sample output: Error

Sample input: * 5 6 7

Sample output: Error

Please provide the .h, .cpp and main.cpp file for this, like Polish.h Polish.cpp and main.cpp thank you

Solutions

Expert Solution

The logic is defined in the program comments on every important line.

CODE:

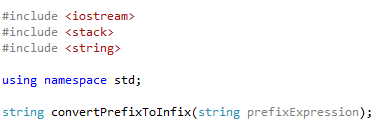

Polish.h

#include <iostream>
#include <stack>
#include <string>

using namespace std;

string convertPrefixToInfix(string prefixExpression);

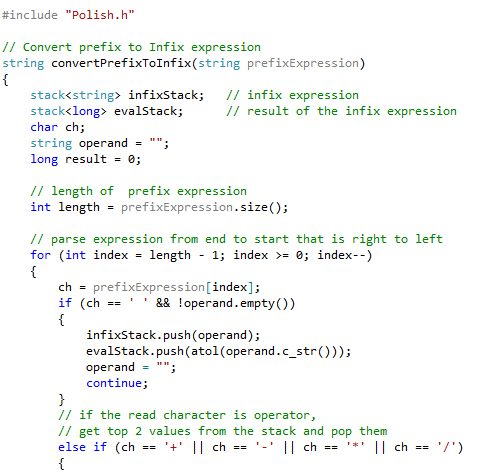

Polish.cpp

#include "Polish.h"

// Convert prefix to Infix expression
string convertPrefixToInfix(string prefixExpression)
{
   stack<string> infixStack;   // infix expression
   stack<long> evalStack;       // result of the infix expression
   char ch;
   string operand = "";
   long result = 0;

   // length of prefix expression
   int length = prefixExpression.size();

   // parse expression from end to start that is right to left
   for (int index = length - 1; index >= 0; index--)
   {
       ch = prefixExpression[index];
       if (ch == ' ' && !operand.empty())
       {
           infixStack.push(operand);
           evalStack.push(atol(operand.c_str()));
           operand = "";
           continue;
       }
       // if the read character is operator,
       // get top 2 values from the stack and pop them
       else if (ch == '+' || ch == '-' || ch == '*' || ch == '/')
       {

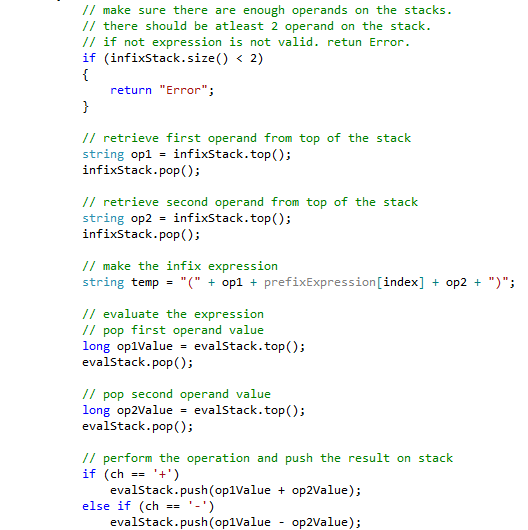

           // make sure there are enough operands on the stacks.
           // there should be atleast 2 operand on the stack.
           // if not expression is not valid. retun Error.
           if (infixStack.size() < 2)
           {
               return "Error";
           }

           // retrieve first operand from top of the stack
           string op1 = infixStack.top();
           infixStack.pop();

           // retrieve second operand from top of the stack
           string op2 = infixStack.top();
           infixStack.pop();

           // make the infix expression
           string temp = "(" + op1 + prefixExpression[index] + op2 + ")";

           // evaluate the expression
           // pop first operand value
           long op1Value = evalStack.top();
           evalStack.pop();

           // pop second operand value
           long op2Value = evalStack.top();
           evalStack.pop();

           // perform the operation and push the result on stack
           if (ch == '+')
               evalStack.push(op1Value + op2Value);
           else if (ch == '-')
               evalStack.push(op1Value - op2Value);

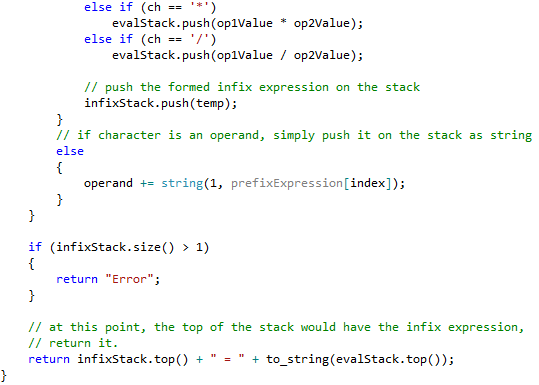

           else if (ch == '*')
               evalStack.push(op1Value * op2Value);
           else if (ch == '/')
               evalStack.push(op1Value / op2Value);

           // push the formed infix expression on the stack
           infixStack.push(temp);
       }
       // if character is an operand, simply push it on the stack as string
       else
       {
           operand += string(1, prefixExpression[index]);
       }
   }

   if (infixStack.size() > 1)
   {
       return "Error";
   }

   // at this point, the top of the stack would have the infix expression,
   // return it.
   return infixStack.top() + " = " + to_string(evalStack.top());
}

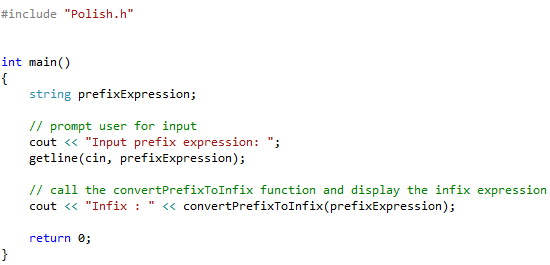

Main.cpp

#include "Polish.h"
int main()
{
   string prefixExpression;

   // prompt user for input
   cout << "Input prefix expression: ";
   getline(cin, prefixExpression);

   // call the convertPrefixToInfix function and display the infix expression
   cout << "Infix : " << convertPrefixToInfix(prefixExpression);

   return 0;
}

OUTPUT:
