Question

In: Computer Science

Create 512 subnets from Class A IP address range 10.*.*.*. For the first four (4) and...

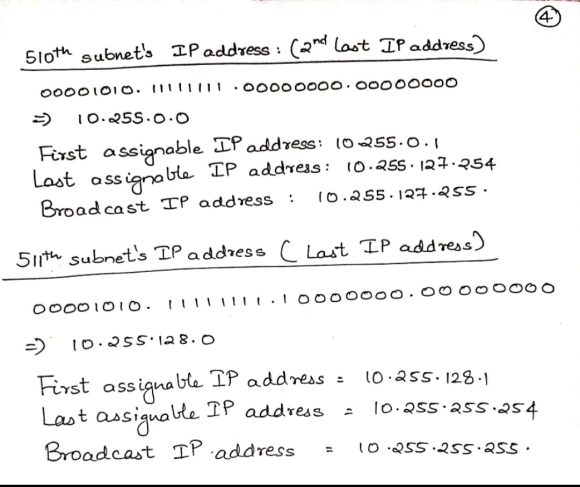

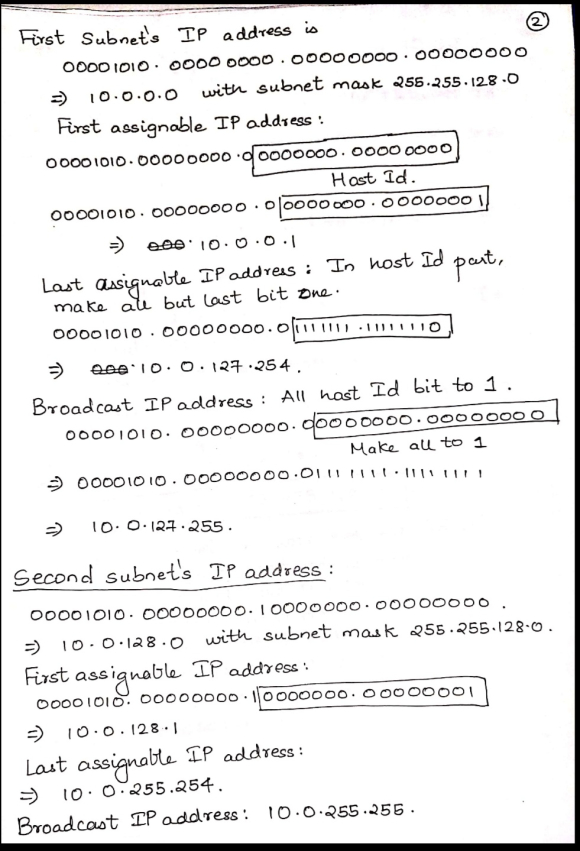

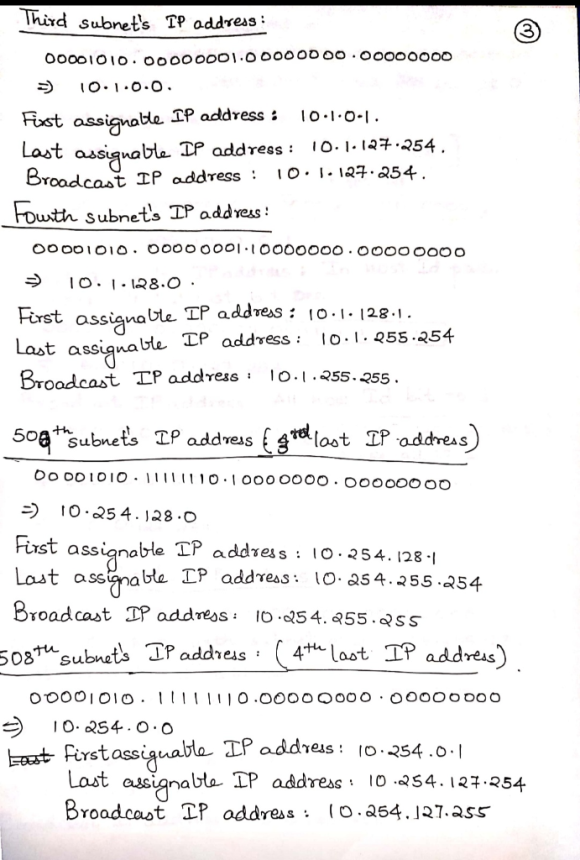

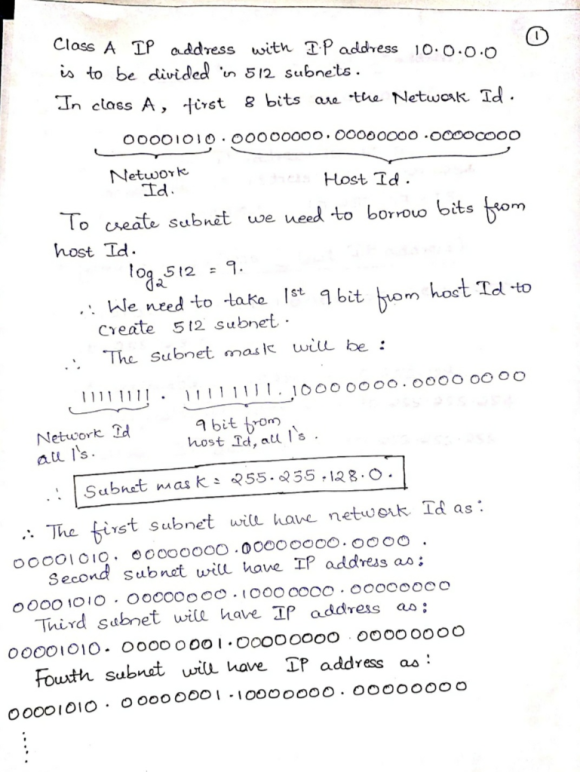

Create 512 subnets from Class A IP address range 10.*.*.*. For the first four (4) and last four (4) subnets, list the network IP address, broadcast IP address, 1st assignable IP address, and last assignable IP address. What subnet mask IP address will all devices in all subnets use?

Solutions

Expert Solution

Here the subnet's IP address is nothing but the network address of the subnet.

I have tried to explain and make it simple as possible.. Still if you have any doubt feel free to ask...

venereology answered 7 months ago
